Universal Xtreme Concentric Slave Cylinder

In stock
Regular price €515,00
Product details
  • SKU CSCCV-KIT-FLAT

Do you have questions about this product?

Ask an expert!

Concentric Slave Cylinder

Xtreme Clutch now offer a universal style performance concentric slave cylinder (CSC)for motorsport and gearbox conversion applications.

The new CSC was designed in-house at Xtreme Clutch and incorporates a billet 6061 alloyhousing, high quality EPDM rubber seals and a threaded adjustment sleeve (where required)for universal applications.

The CSC is available in kit form for various popular conversion applications and these kitsinclude an adaptor plate and braided clutch and bleeder lines (as required).

Mounting style:

Slide on and bolt on.

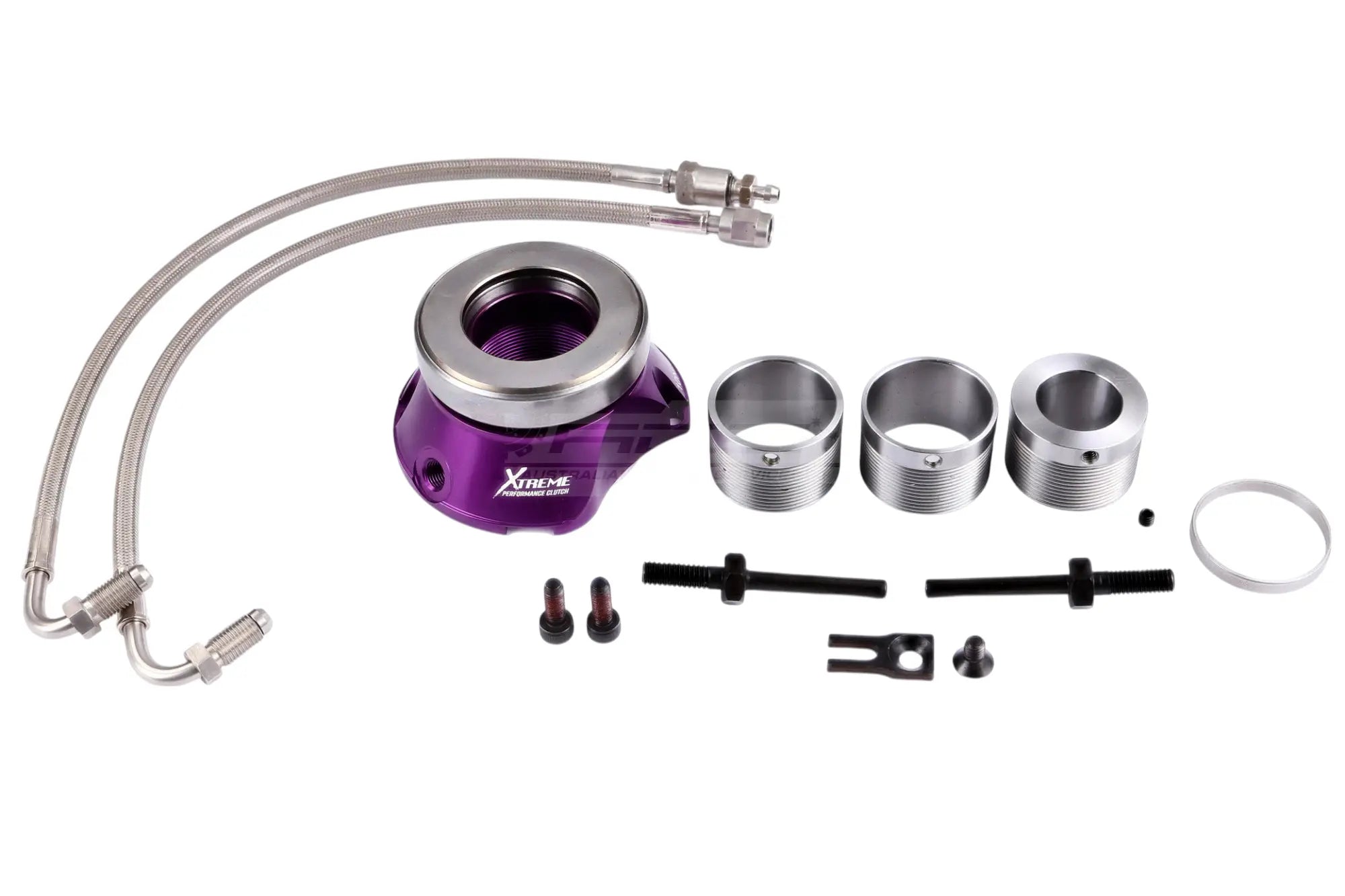

Accessories Included:

Braided clutch and bleed lines. M8x1.25 + 5/16" guide pins. 25mm, 35.3mm and 36.3mm adjustable sleeves. M6 mounting Bolts.

Specifications:
  • Bearing / Clutch Contact Diameter (mm): Flat
  • Usable Piston Travel (mm): 17
  • Adjustability (mm): 16
  • Extension Height (mm): 81
  • Min. Compression Height (mm): 48
