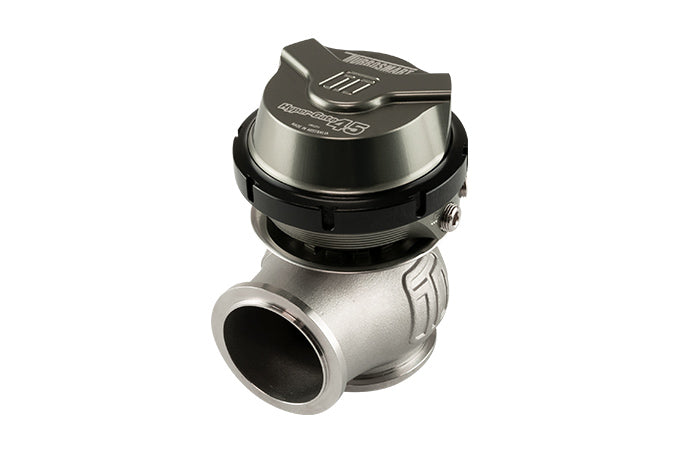

Turbosmart Gen-V WG45 Hyper-Gate45 14psi Platinum
Regular price
€447,95
Delivery Time : If Item In Stock - Delivery 5-8 Working Days and If you are in a hurry please check availability .Contact Sales
The GenV WG45 HyperGate45 External Wastegate is a Motorsport proven, cost effective external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Available InWastegate Position Sensor Version & Upgrade TS-0550-3024Compressed Gas (ex: Co2) Version TS-0553-1202Motorsport Version (CFD driven Heatsink design) TS-0553-1102eWG (Electronically Actuated) Version TS-0553-1502HP (High Pressure Version) Up to 50psi TS-0553-1312
Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
