TOYOTA - SUPRA Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm

No reviews
€1.749,31
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KTY23533-2E
  • Model SUPRA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews
Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.



The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.



Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")



Toyota Supra

  • 3.0 i (JZA80_, JZA80R) – 2JZ-GE, 3.0L Petrol, 165 kW (224 hp), May 1993 – Oct 1999 | Suits Pressed Metal Fork
  • 3.0 i (JZA80_) – 2JZ-GE, 3.0L Petrol, 168 kW (228 hp), May 1993 – Jul 2002 | Suits Pressed Metal Fork
  • Clutch Disc Diameter (mm)
    230
  • Clutch Disc Spline Count
    21
  • Clutch Disc Spline Diameter (mm)
    29.8
  • Flywheel Step
    +3.8mm
  • Torque (Nm)
    1830
  • Stage
    5
  • Usage
    Motorsport
  • Design
    230mm Twin Plate Solid Ceramic – for extreme power and endurance applications. Offers maximum torque transfer and durability under sustained high-temperature conditions.
  • Tech Bulletins

  • Kit Includes

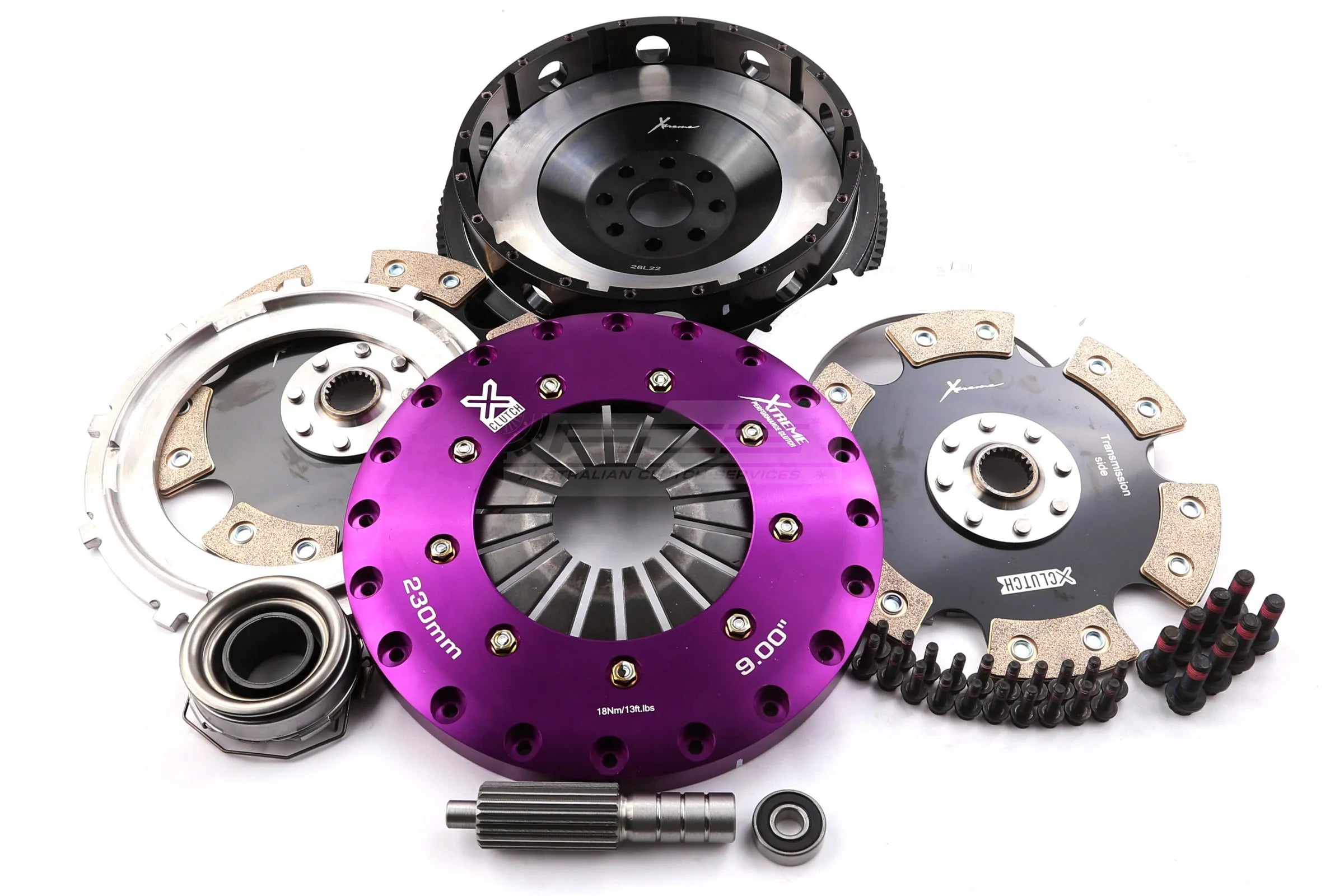

    Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool
  • Flywheel
    Single Mass Flywheel
  • Additional information
    Suit Pressed Metal Fork
  • Weight [KG]:
    15.5
