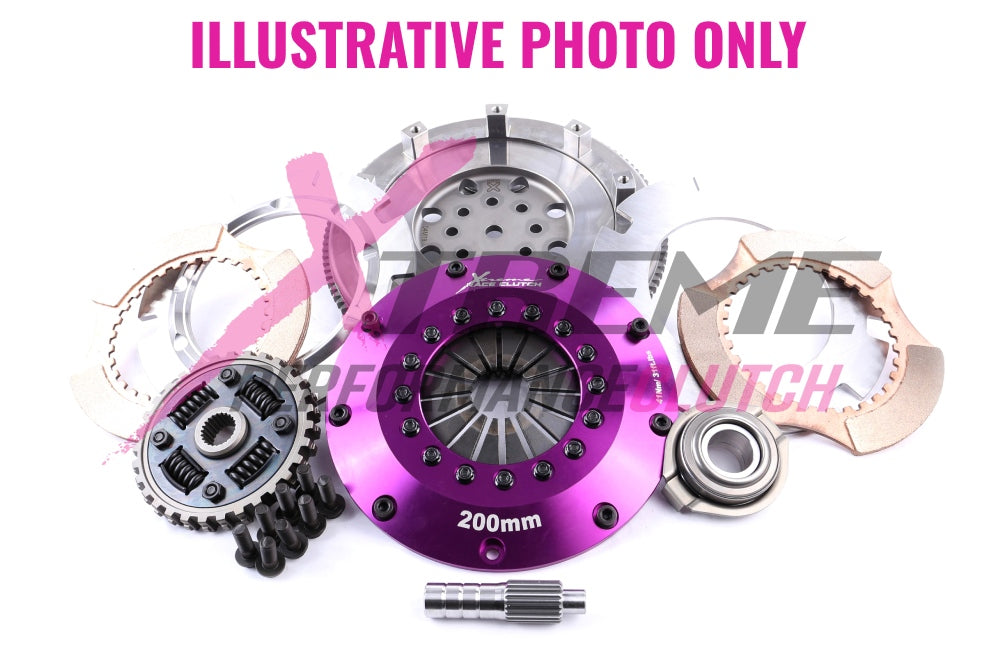

Some images can be for illustration purposes only.

TOYOTA - SUPRA Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

No reviews
€1.702,83
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KTY20531-2B
  • Model SUPRA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews
Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.



The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).



Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")



Toyota Supra

  • 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 210 kW (286 hp), May 1993 – Jul 2002 | Pull To Push Type Conversion
  • 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 243 kW (330 hp), May 1993 – Jul 2002 | Pull To Push Type Conversion
  • 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 240 kW (326 hp), Mar 1994 – Jul 2002 | Pull To Push Type Conversion

Clutch Disc Diameter (mm)
200
Clutch Disc Spline Count
14
Clutch Disc Spline Diameter (mm)
32.0
Flywheel Step
+2.2mm
Torque (Nm)
1200
Clamp Load
1100Kg
Stage
5
Usage
Motorsport
Design
200mm Twin Plate Sprung Ceramic – engineered for high-performance track use. Combines excellent torque and heat resistance with smoother engagement and improved drivability.
Tech Bulletins
TSB-200-2-X-1  TSB-TY11
Kit Includes
Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool, PullToPush Conversion Parts
Flywheel
Single Mass Flywheel
Additional information
Conversion from Pull to Push Type
Weight [KG]:
17.1
