Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R
Recommended for: Motorsport Applications
-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.
Specifications:
- Torque capacity 1070Nm
- Clamp load 1500Kg 45% Increased over standard
- Sprung Ceramic Friction Disc
- Extra Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Toyota Supra
- 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 210 kW (286 hp), May 1993 – Jul 2002 | Suitable Only for Conversion Kit KTY25502-1*
- 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 243 kW (330 hp), May 1993 – Jul 2002 | Suitable Only for Conversion Kit KTY25502-1*
- 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 240 kW (326 hp), Mar 1994 – Jul 2002 | Suitable Only for Conversion Kit KTY25502-1*
Clutch Disc Diameter (mm)
250
Clutch Disc Spline Count
14
Clutch Disc Spline Diameter (mm)
32.0
Flywheel Step
Flat
Torque (Nm)
1070
Clamp Force
1500Kg
Clamp Force Increase
50%
Stage
Stage 2R
Usage
Track Use
Design
Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins
TSB-174 TSB-TY09
Kit Includes

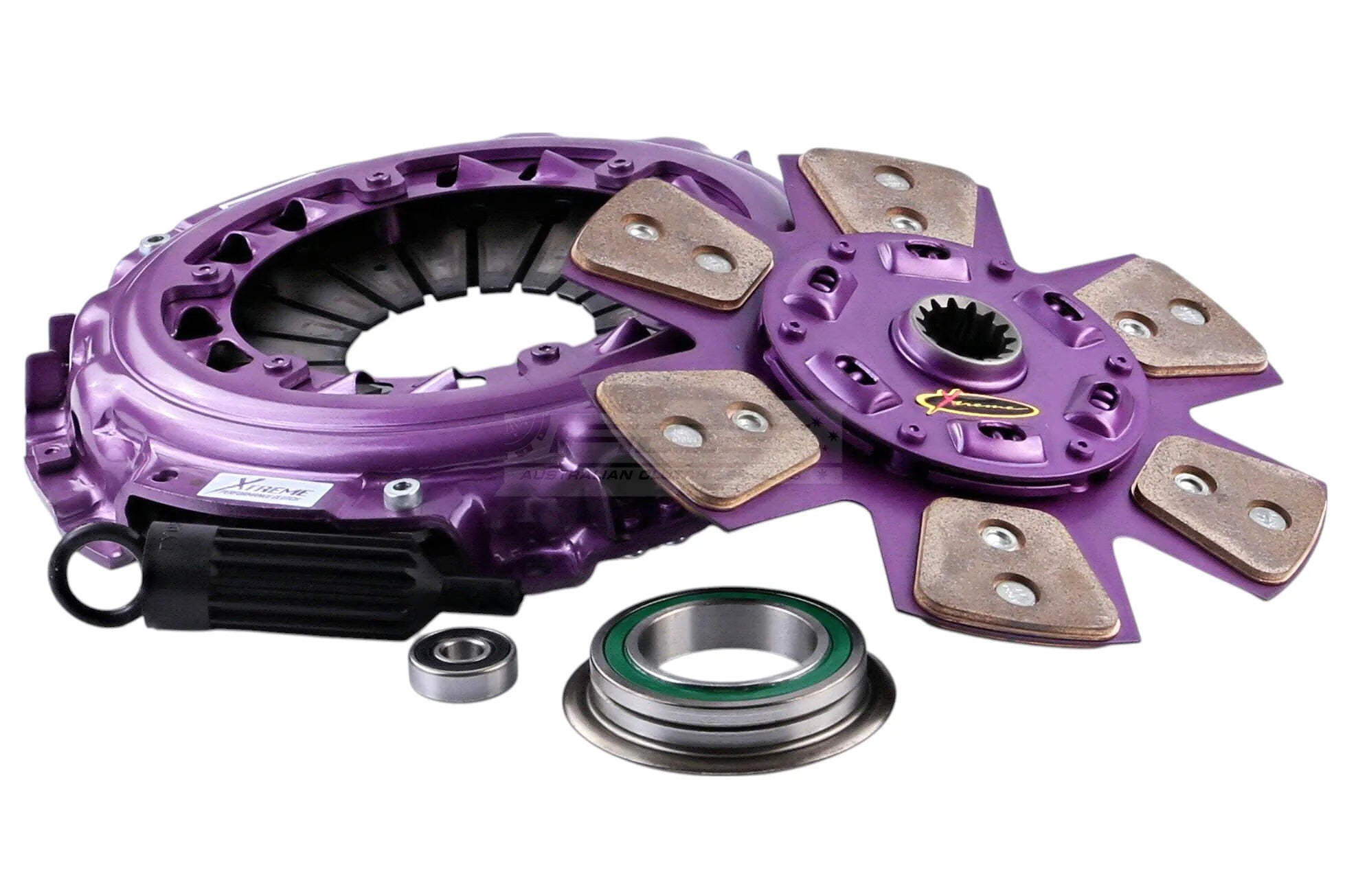

Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel
Not included
Note
This kit only suits converted flywheel from KTY25502-1*
Weight [KG]:
9.85
