Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R
Recommended for: Motorsport Applications
-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.
Specifications:
- Torque capacity 820Nm
- Clamp load 1500Kg 115% Increased over standard
- Sprung Ceramic Friction Disc
- Extra Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Toyota Supra
- 3.0 (MA70_, MA70) – 7M-GE, 3.0L Petrol, 150 kW (204 hp), Jan 1986 – Aug 1988
- 3.0 (MA70_, MA70) – 7M-GE, 3.0L Petrol, 140 kW (190 hp), Jan 1986 – May 1993
- 3.0 i (JZA80_, JZA80R) – 2JZ-GE, 3.0L Petrol, 165 kW (224 hp), May 1993 – Oct 1999 | Suits Pressed Metal Fork
- 3.0 i (JZA80_) – 2JZ-GE, 3.0L Petrol, 168 kW (228 hp), May 1993 – Jul 2002 | Suits Pressed Metal Fork
Clutch Disc Diameter (mm)
240
Clutch Disc Spline Count
21
Clutch Disc Spline Diameter (mm)
29.8
Flywheel Step
+0.5mm
Torque (Nm)
820
Clamp Force
1500Kg
Clamp Force Increase
115%
Stage
Stage 2R
Usage
Track Use
Design
Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins
TSB-250
Kit Includes

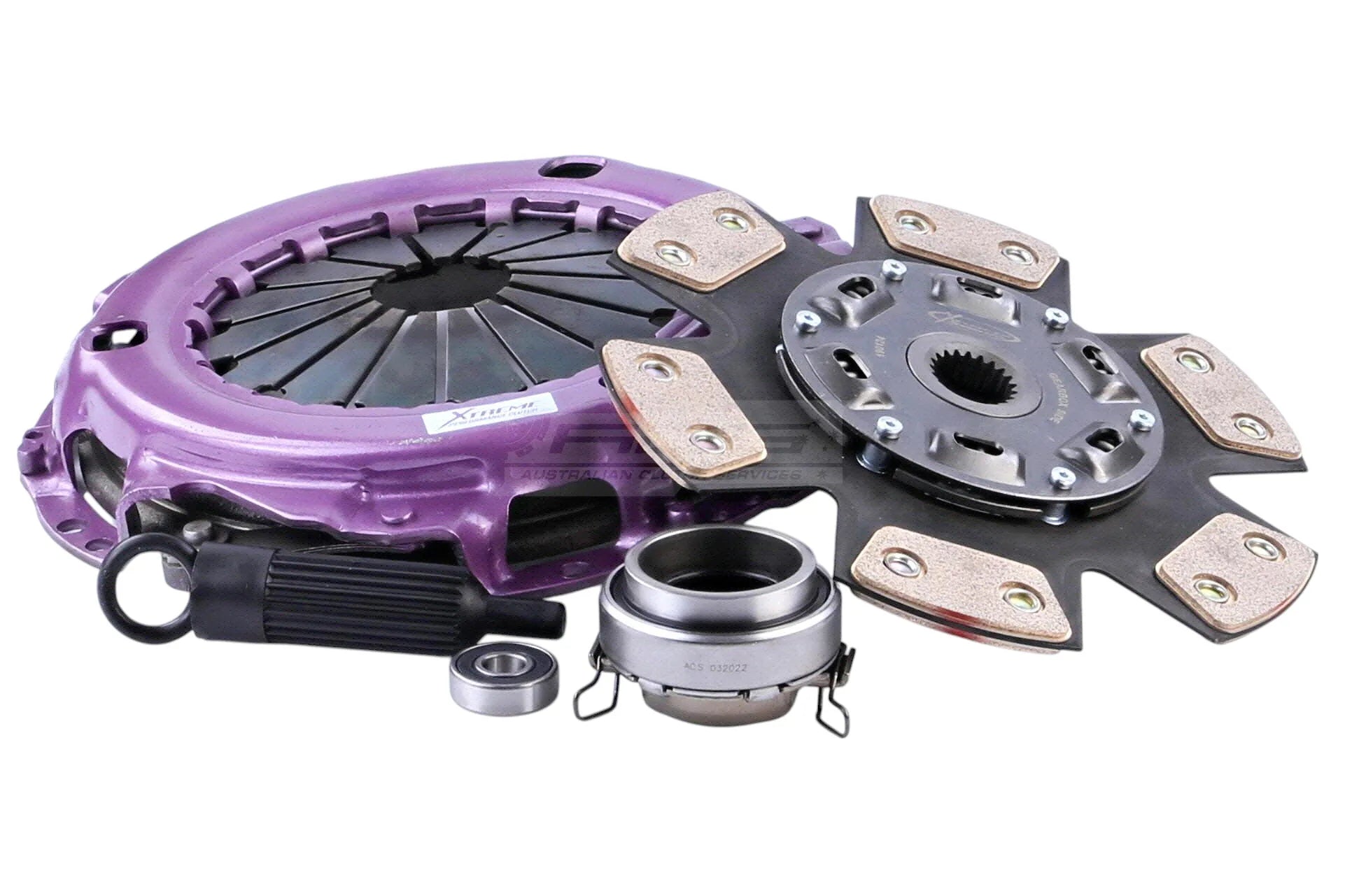

Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel
Not included
Additional information
Suit Pressed Metal Fork
Weight [KG]:
8.81
