TOYOTA - SUPRA Clutch Kit - Xtreme Performance Heavy Duty Sprung Ceramic 930Nm 1300kg (30% inc.)

No reviews
€1.144,47
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KTY25002-1B
  • Model SUPRA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews
Xtreme Performance - sprung ceramic kit /-1B

Recommended for: Motorsport Applications



These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.



Specifications:
  • Torque capacity 930Nm
  • Clamp load 1300kg 30% Increased over standard
  • Sprung Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories



The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.





Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.





What's in the Box?



Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.



Toyota Supra

  • 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 210 kW (286 hp), May 1993 – Jul 2002 | Suitable Only for Conversion Kit KTY25502-1*
  • 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 243 kW (330 hp), May 1993 – Jul 2002 | Suitable Only for Conversion Kit KTY25502-1*
  • 3.0 i Bi-Turbo (JZA80_) – 2JZ-GTE, 3.0L Petrol, 240 kW (326 hp), Mar 1994 – Jul 2002 | Suitable Only for Conversion Kit KTY25502-1*

Clutch Disc Diameter (mm)
250
Clutch Disc Spline Count
14
Clutch Disc Spline Diameter (mm)
32.0
Flywheel Step
Flat
Torque (Nm)
930
Clamp Force
1300Kg
Clamp Force Increase
30%
Stage
Stage 2
Usage
Track Use
Design
Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins
TSB-174  TSB-TY09

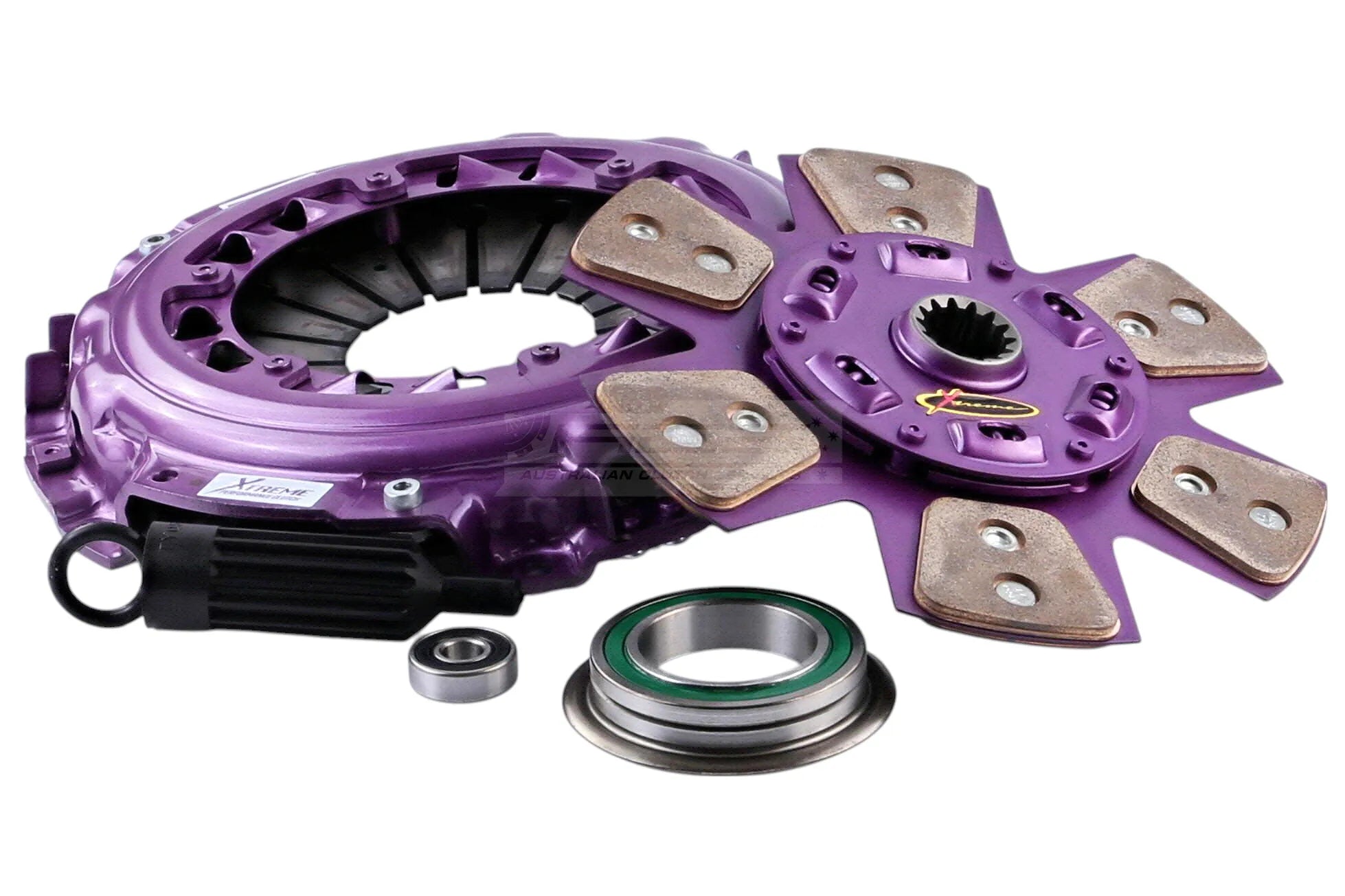

Kit Includes
Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel
Not included
Note
This kit only suits converted flywheel from KTY25502-1*
Weight [KG]:
9.48
