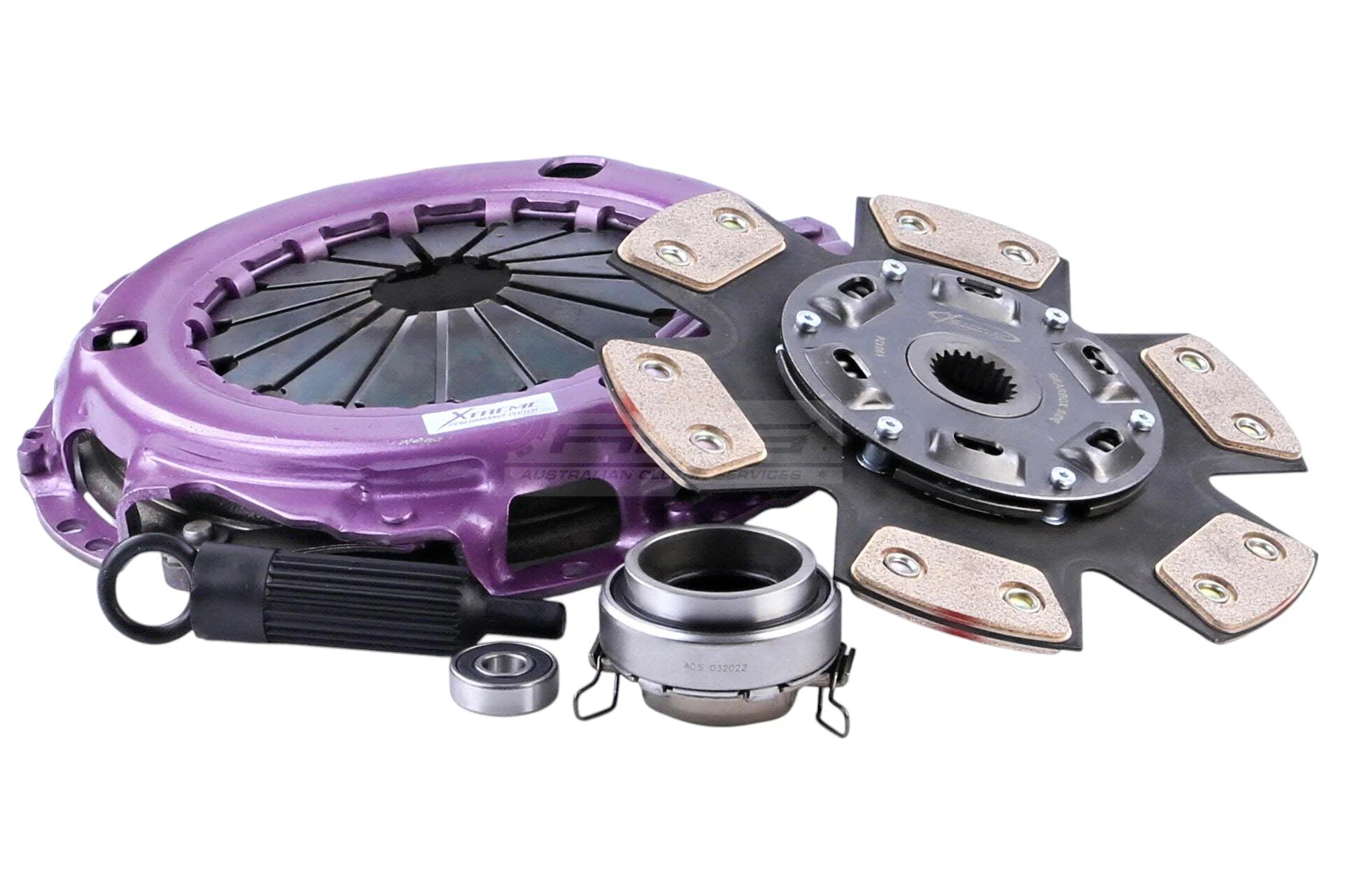

TOYOTA - SUPRA Clutch Kit - Xtreme Performance Heavy Duty Sprung Ceramic 570Nm 850kg (20% inc.)

No reviews
€449,56
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KTY24007-1B
  • Model SUPRA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews
Xtreme Performance - sprung ceramic kit /-1B

Recommended for: Motorsport Applications



These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.



Specifications:
  • Torque capacity 570Nm
  • Clamp load 850kg 20% Increased over standard
  • Sprung Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories



The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.





Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.





What's in the Box?



Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.



Toyota Supra

  • 3.0 (MA70_, MA70) – 7M-GE, 3.0L Petrol, 150 kW (204 hp), Jan 1986 – Aug 1988
  • 3.0 (MA70_, MA70) – 7M-GE, 3.0L Petrol, 140 kW (190 hp), Jan 1986 – May 1993
  • 3.0 i (JZA80_, JZA80R) – 2JZ-GE, 3.0L Petrol, 165 kW (224 hp), May 1993 – Oct 1999 | Suits Pressed Metal Fork
  • 3.0 i (JZA80_) – 2JZ-GE, 3.0L Petrol, 168 kW (228 hp), May 1993 – Jul 2002 | Suits Pressed Metal Fork

Clutch Disc Diameter (mm)
240
Clutch Disc Spline Count
21
Clutch Disc Spline Diameter (mm)
29.8
Flywheel Step
+0.5mm
Torque (Nm)
570
Clamp Force
850Kg
Clamp Force Increase
25%
Stage
Stage 2
Usage
Track Use
Design
Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins
TSB-250
Kit Includes
Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel
Not included
Additional information
Suit Pressed Metal Fork
Weight [KG]:
8.61
