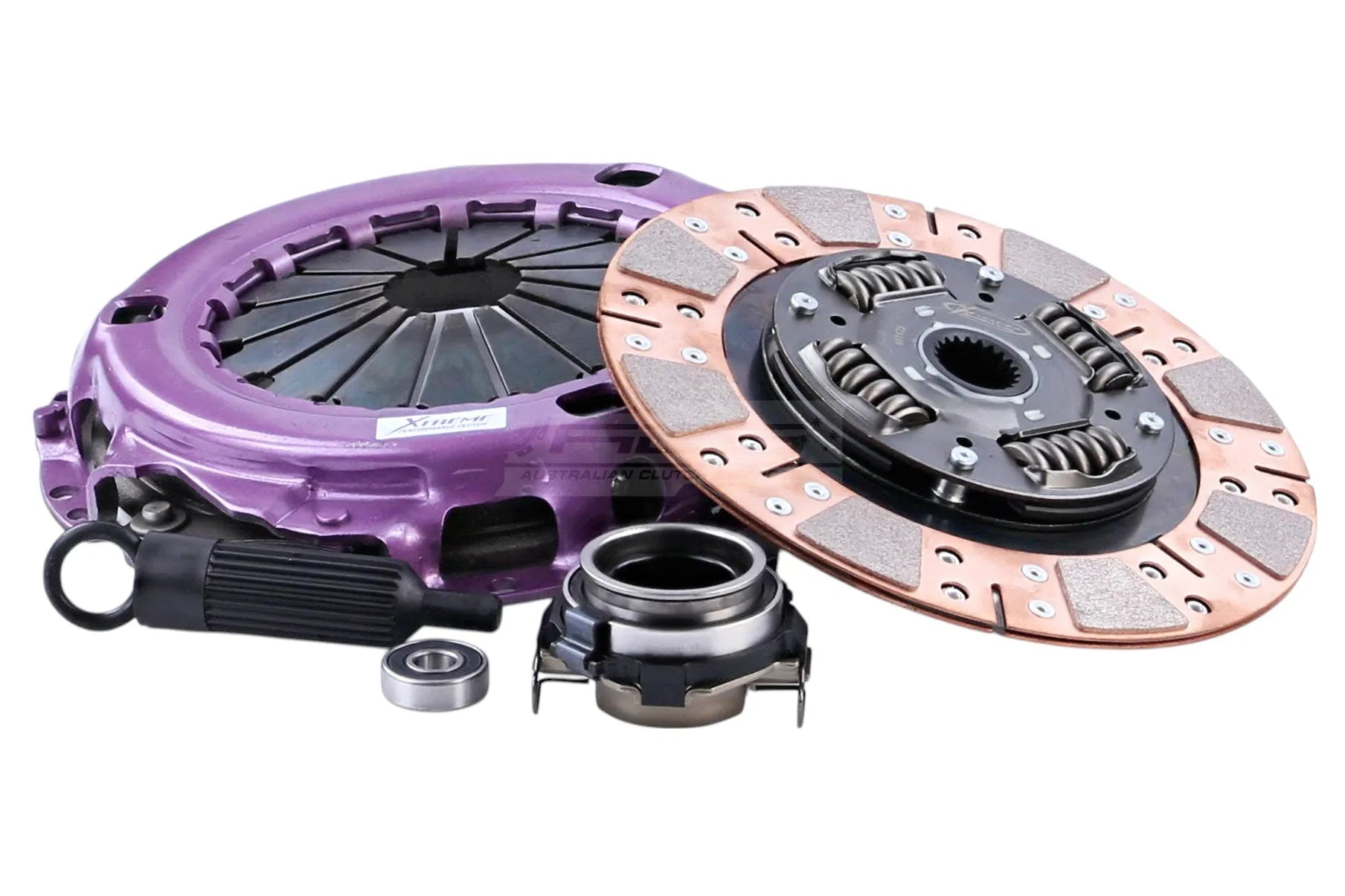

Xtreme Performance - Cushioned Ceramic kit /-1C
Recommended for: Motorsport Applications
These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.
Specifications:
- Torque capacity 580Nm
- Clamp load 850Kg 20% Increased over standard
- Cushioned Ceramic Friction Disc
- Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Toyota Supra
- 3.0 i (JZA80_, JZA80R) – 2JZ-GE, 3.0L Petrol, 165 kW (224 hp), May 1993 – Oct 1999 | Suits Cast Iron Fork
- 3.0 i (JZA80_) – 2JZ-GE, 3.0L Petrol, 168 kW (228 hp), May 1993 – Jul 2002 | Suits Cast Iron Fork
Clutch Disc Diameter (mm)
240
Clutch Disc Spline Count
21
Clutch Disc Spline Diameter (mm)
29.8
Flywheel Step
+0.5mm
Torque (Nm)
580
Clamp Force
850Kg
Clamp Force Increase
25%
Stage
Stage 2
Usage
Track Use
Design
Single Plate Cushioned Ceramic Disc – designed to deliver increased torque and heat capacity while maintaining smoother engagement than a standard ceramic disc, thanks to its cushioned friction surface.
Tech Bulletins
TSB-250
Kit Includes
Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
Flywheel
Not included
Additional information
Suit Cast Iron Fork
Weight [KG]:
9.2
