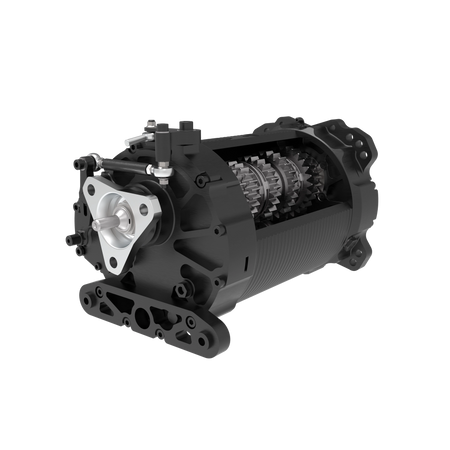

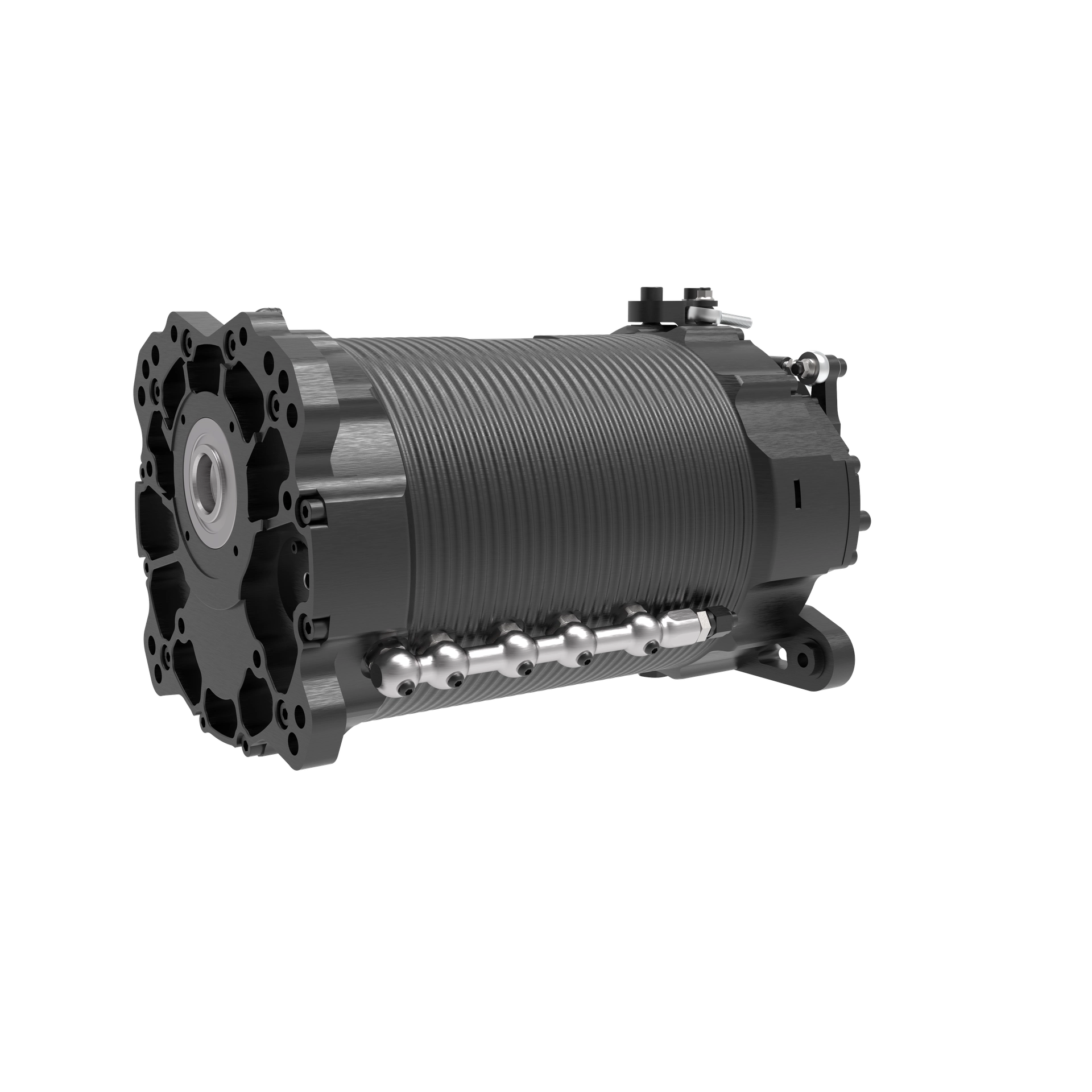

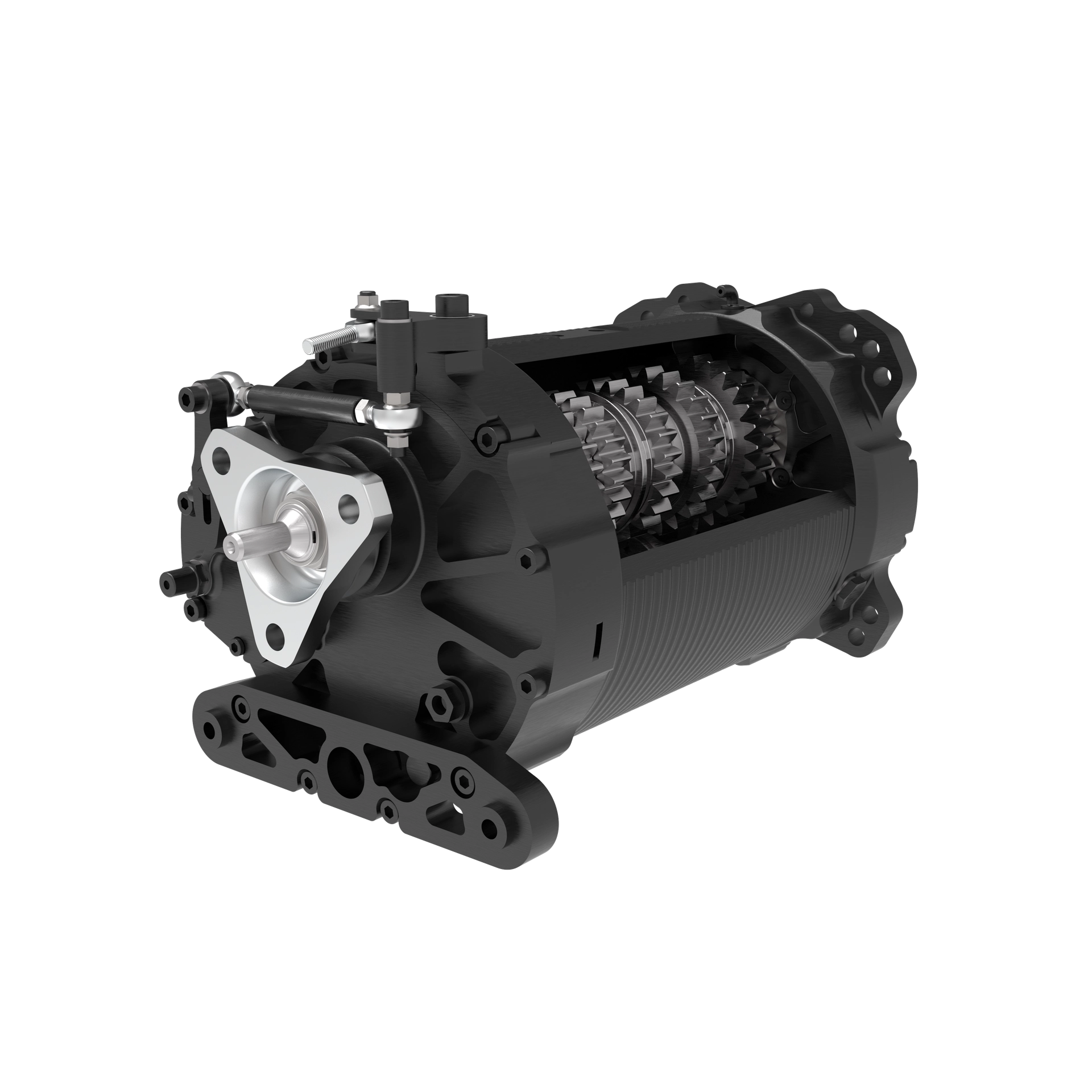

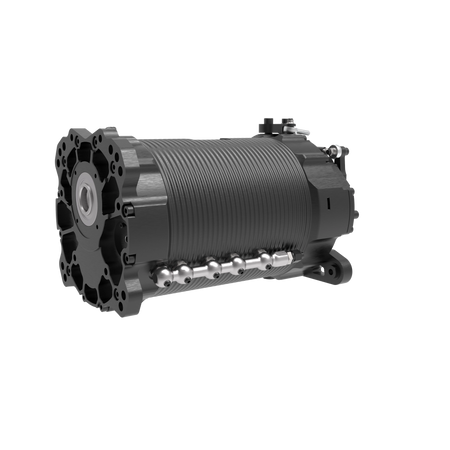

Samsonas RWDs - Universal Sequential 4/5/6-Speed
Features
4/5/6 (+reverse) full sequential gearbox
Torque rating up to 1400 Nm, depending on the options
Special steel X300 clutch shaft
400 different ratio options
200 different clutchshafts options
Transaxle option for Corvette C5, C6, C7
Transaxle option for Winters differential
4WD option for Skyline GTR R32, R33, R34
15 options of rear flanges: 1350 series Yoke T10 / Slip, all BMW, Toyota, Nissan, Mazda, GM
Over 70 options of engine bellhouse fittings: Audi/VW, BMW, MB, Ford, Opel, Vauxhal, Mazda, Honda, Subaru, Scion, GM, Tremec, Volvo etc.
Quick change drop gear
Straight cut gears for minimum rolling resistance
Super finished, shot peened gears and internals
Dry weight 38 kg.
Parts included with the gearbox package: Input Shaft, Bellhousing Adapter, Output Flange, Gear Position Sensor
Gear Ratios
4 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 |
|---|---|---|---|
| 3.000 | 2.000 | 1.500 | 1.250 |
| 3.000 | 2.000 | 1.500 | 1.190 |
| 3.000 | 1.800 | 1.250 | 1.000 |
| 3.000 | 1.647 | 1.250 | 1.000 |
| 2.462 | 1.800 | 1.471 | 1.190 |
| 2.462 | 1.800 | 1.471 | 1.250 |
| 2.462 | 1.647 | 1.250 | 1.000 |
5 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 | Gear 5 |
|---|---|---|---|---|
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 |
| 2.462 | 1.800 | 1.250 | 1.000 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.190 | 1.000 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 |
| 3.000 | 1.800 | 1.250 | 1.000 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.250 | 1.087 |
| 2.462 | 1.647 | 1.250 | 1.000 | 0.875 |
| 2.462 | 1.647 | 1.333 | 1.250 | 1.042 |
6 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 | Gear 5 | Gear 6 |
|---|---|---|---|---|---|
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 | 0.962 |
| 3.000 | 2.000 | 1.471 | 1.190 | 1.000 | 0.875 |
| 3.000 | 2.000 | 1.500 | 1.250 | 1.087 | 0.962 |
| 3.000 | 2.000 | 1.500 | 1.190 | 1.000 | 0.875 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 | 0.760 |
| 3.000 | 1.800 | 1.500 | 1.250 | 1.087 | 0.962 |
| 3.000 | 1.800 | 1.500 | 1.333 | 1.042 | 0.962 |
