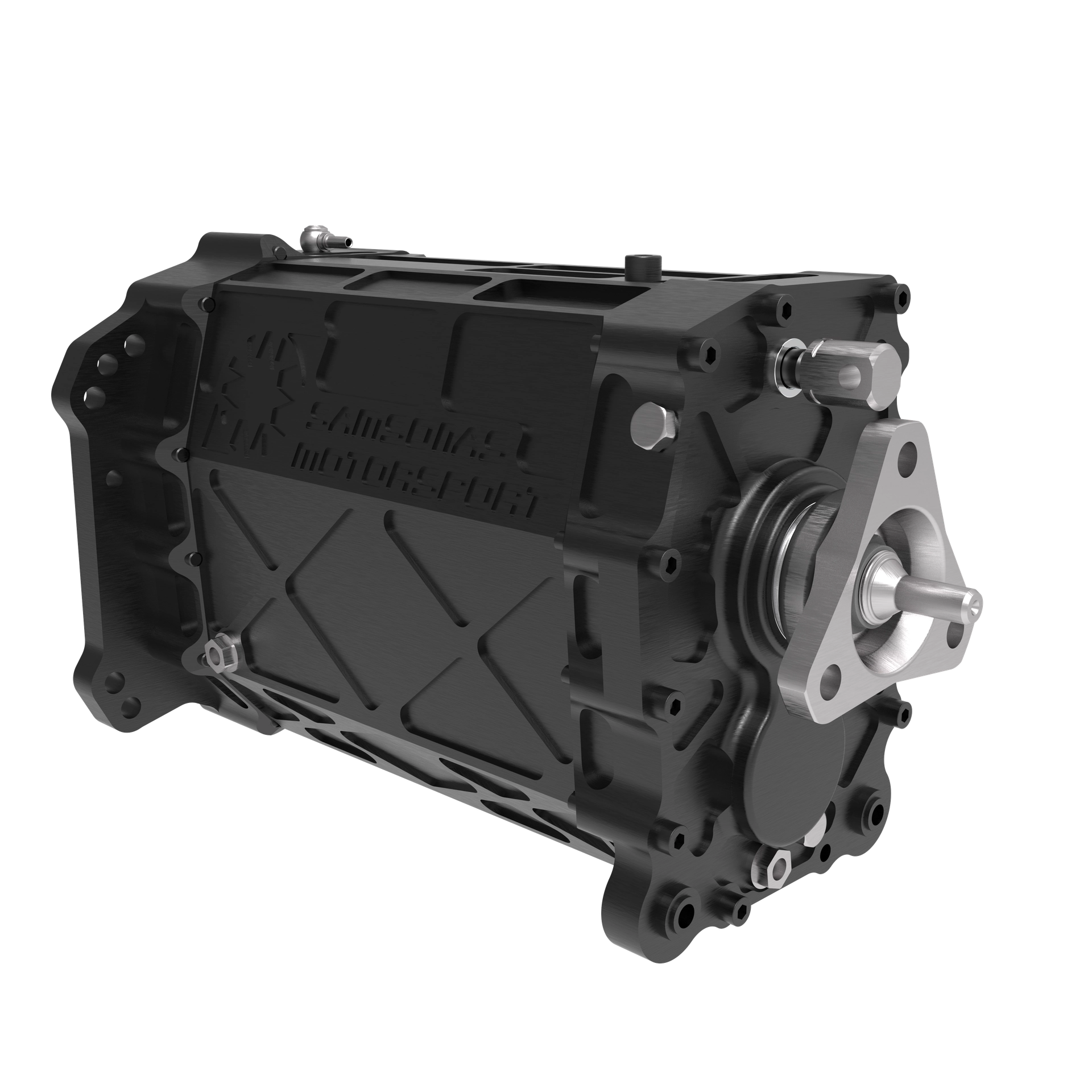

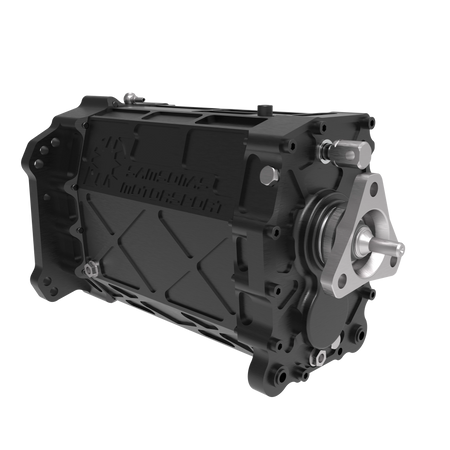

RWD- Universal H-Pattern Gearbox
Features :
4/5/6 speed (+reverse) gearbox
Torque rating up to 800 Nm, depending on the options
Special steel X300 clutch shaft
400 different ratio options
200 different clutch shafts options
15 options of rear flanges: 1350 series Yoke T10 / Slip, all BMW, Toyota, Nissan, Mazda, GM
Over 70 options of engine bellhouse fittings:
Audi/VW, BMW, MB, Ford, Opel, Vauxhal, Mazda, Honda, Subaru, Scion, GM, Tremec, Volvo etc.
Quick change drop gear
Straight cut gears for minimum rolling resistance
Super finished, shot peened gears and internals
5 engagement dogs for maximum fast gear change
Parts included with the gearbox package:
Input Shaft
Bellhousing Adapter
Output Flange
IMPORTANT NOTE :
4 SPEED GEARBOX WITH CASING
(without bellhousing)
5 SPEED GEARBOX WITH CASING
(without bellhousing)
6 SPEED GEARBOX WITH CASING
(without bellhousing)

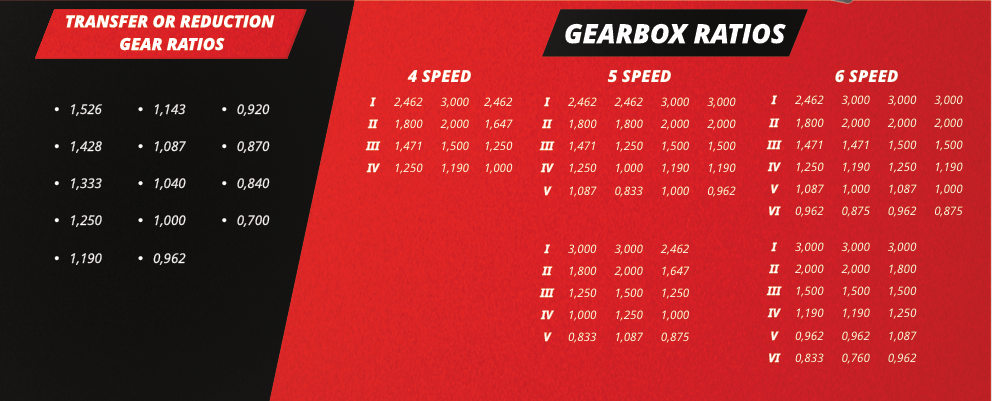

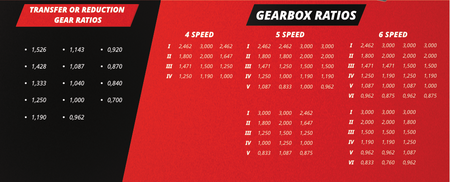

Gear Ratios
4 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 |
|---|---|---|---|
| 3.000 | 2.000 | 1.500 | 1.250 |
| 3.000 | 2.000 | 1.500 | 1.190 |
| 3.000 | 1.800 | 1.250 | 1.000 |
| 2.462 | 1.800 | 1.471 | 1.250 |
| 2.462 | 1.647 | 1.250 | 1.000 |
Gear Ratios
5 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 | Gear 5 |
|---|---|---|---|---|
| 3.000 | 2.000 | 1.500 | 1.250 | 1.087 |
| 3.000 | 2.000 | 1.500 | 1.190 | 1.000 |
| 3.000 | 1.800 | 1.250 | 1.000 | 0.833 |
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 |
| 2.462 | 1.800 | 1.471 | 1.190 | 1.000 |
| 2.462 | 1.800 | 1.250 | 1.000 | 0.833 |
| 2.462 | 1.647 | 1.250 | 1.000 | 0.875 |
Gear Ratios
6 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 | Gear 5 | Gear 6 |
|---|---|---|---|---|---|
| 3.000 | 2.000 | 1.500 | 1.250 | 1.087 | 0.962 |
| 3.000 | 2.000 | 1.500 | 1.190 | 1.000 | 0.875 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 | 0.760 |
| 3.000 | 2.000 | 1.471 | 1.250 | 1.087 | 0.875 |
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 | 0.962 |
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 | 0.962 |
