Release Bearing Adapter Kit - Xtreme 230mm Triple Plate - Samsonas RS90 with QuickTime Bellhousing
Regular price
€747,97
Release Bearing Adapter Kit To Suit Xtreme 230mm Triple Plate - Samsonas RS90 with QuickTime Bellhousing (2JZ Engine)
This release bearing adapter kit is designed to suit Samsonas RS90 sequential gearboxes used with a QuickTime bellhousing, specifically for Toyota 2JZ engine setups running an Xtreme 230mm triple plate clutch.
Engineered as a complete, ready-to-fit solution, this kit removes the need for custom fabrication or additional measurements. It ensures correct release bearing positioning and proper clutch operation, making installation straightforward and reliable.
Ideal for builders who don’t have the means to fabricate a custom adapter, this kit provides a proven, hassle-free solution for 2JZ to Samsonas sequential conversions.

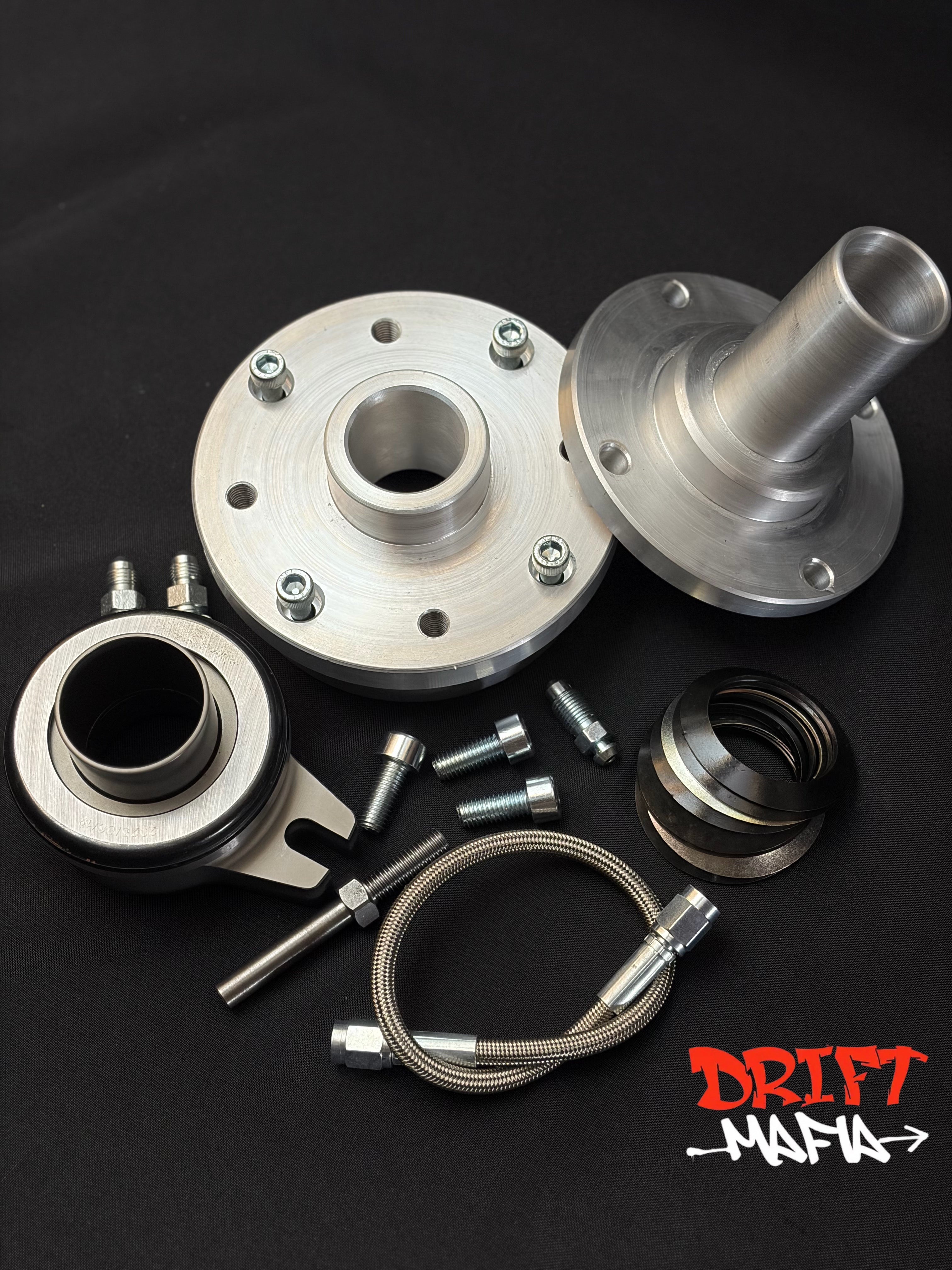

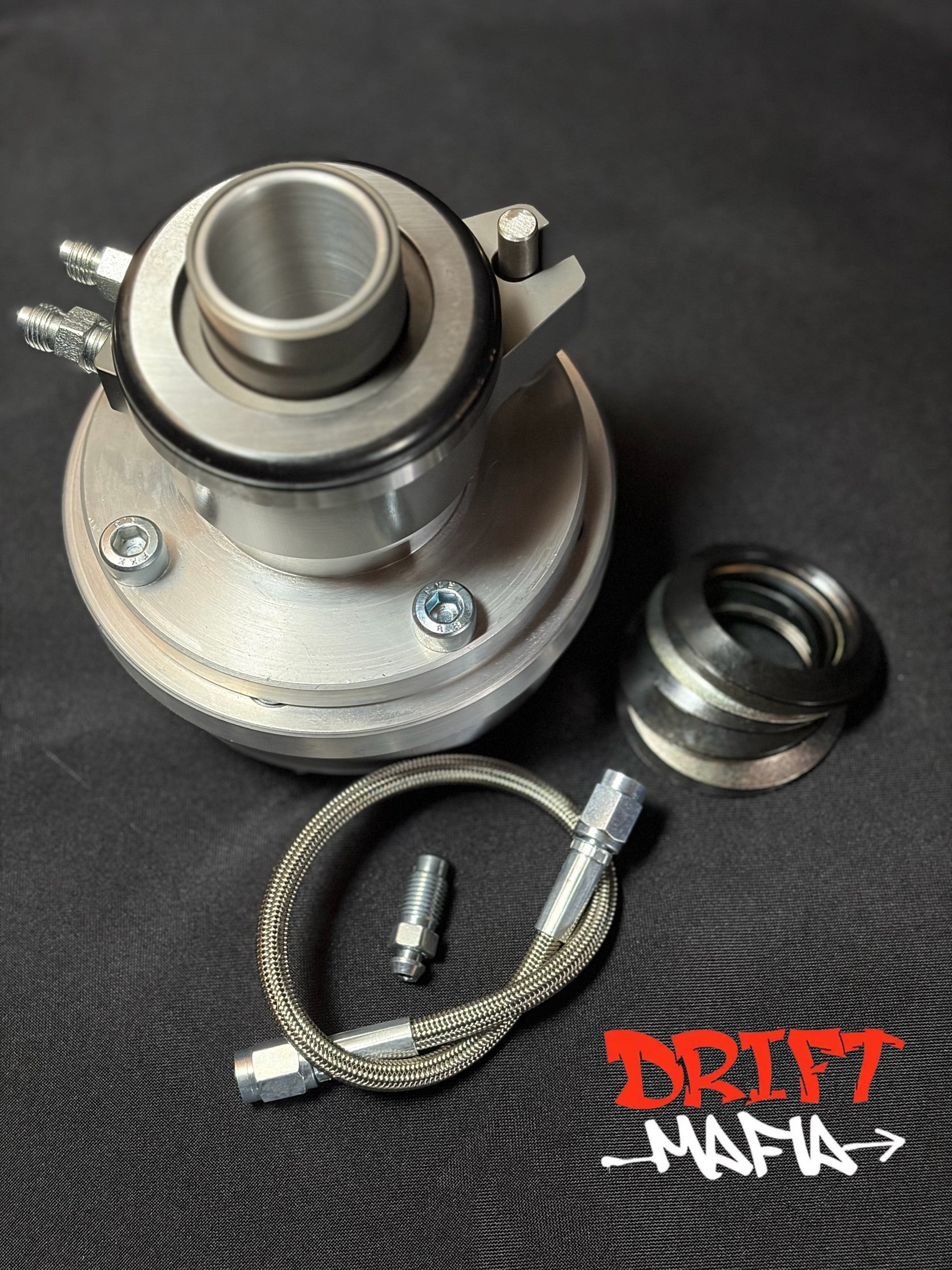

Kit Includes:
- 2-piece adapter to suit Samsonas RS90 sequential gearbox
- RAM release bearing kit
- Mounting bolts
Key Features:
- Designed for Samsonas RS90 sequential gearbox with QuickTime bellhousing
- Suits Toyota 2JZ engine setups
- Compatible with Xtreme 230mm triple plate clutch - KTY23692-3E
- Ready to install – no additional measurements required
- No fabrication needed – direct fit solution
- Ideal for drift and motorsport applications
Important:
- QuickTime bellhousing - Clutch and gearbox not included
- Designed specifically for this setup combination
- Suitable Only For Rolled Diaphragm Pressure Plate
- Replacement Release Bearings Check HERE
- BEARING CLEARANCE MUST BE CHECKED WHEN INSTALLED. !!!
