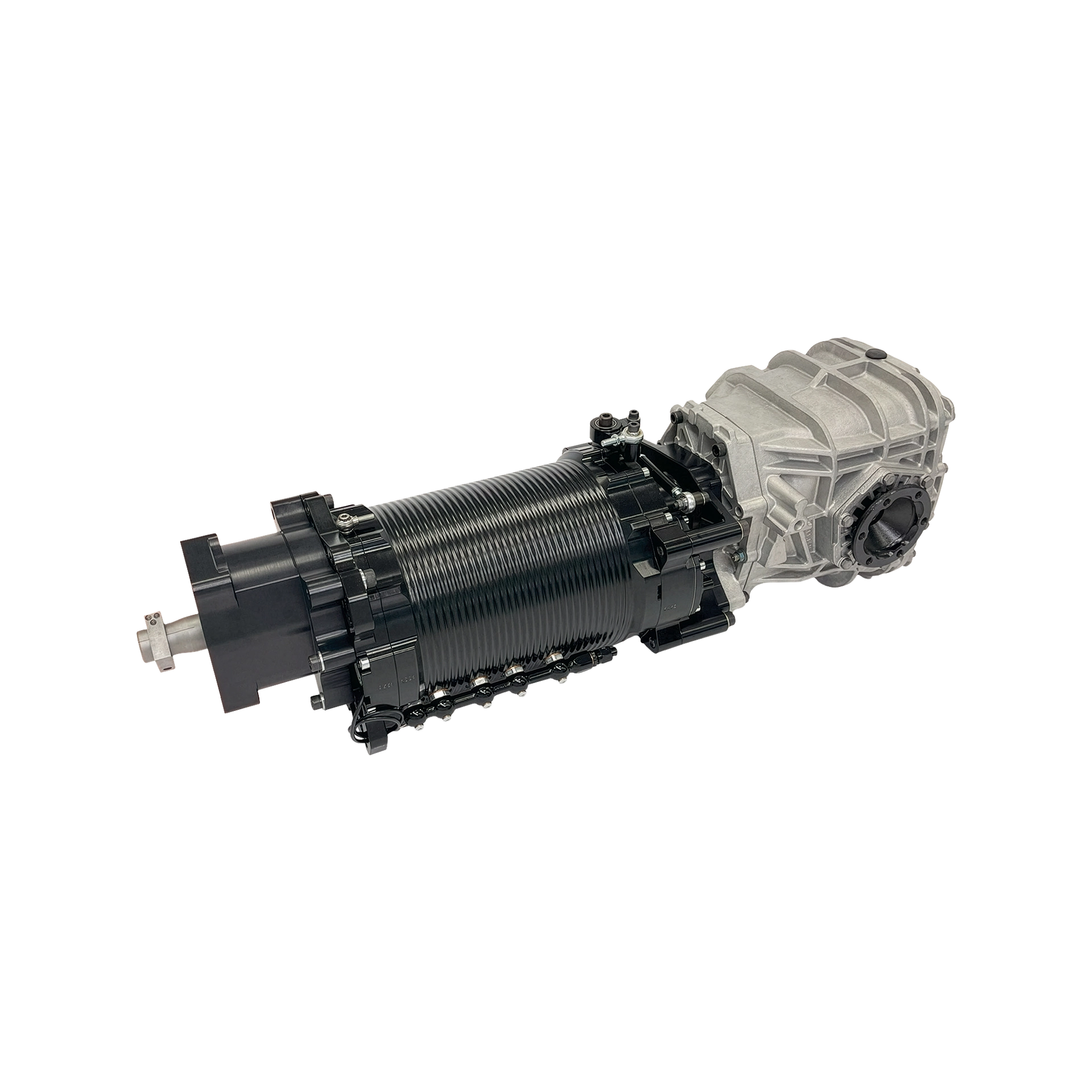

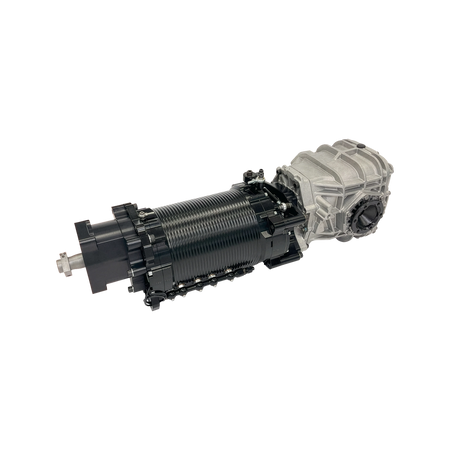

Porsche 928 Sequential (RWDs)

No reviews
€10.000,00
Gearbox Type
Product details
  • SKU RWDS4/POR

Do you have questions about this product?

Ask an expert!

We Advice To Check Shipping Rate With Our Sales Team Before Purchasing .

Description Shipping information Delivery Time Reviews

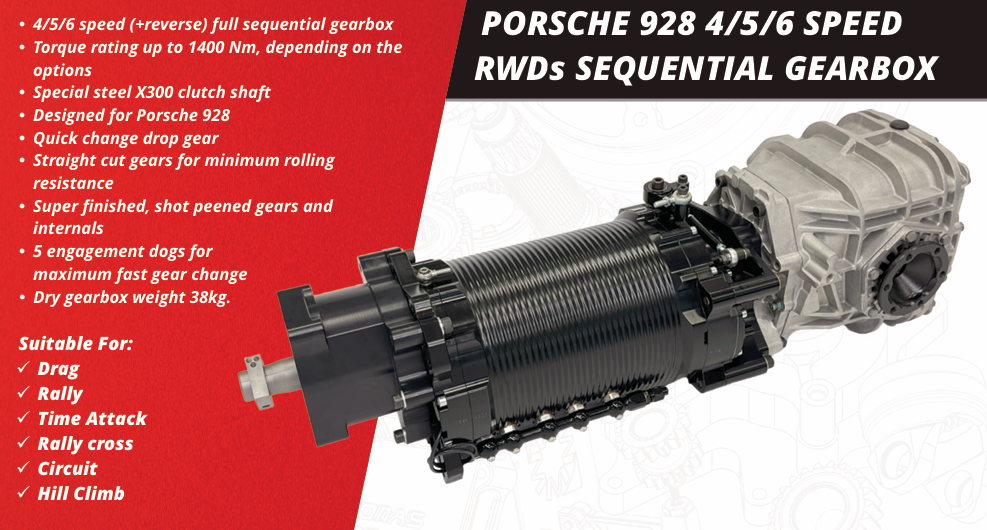

Features

4/5/6 speed (+reverse) full sequential gearbox

Torque rating up to 1400 Nm, depending on the options

Special steel X300 clutch shaft

Quick change drop gear

Straight cut gears for minimum rolling resistance

Super finished, shot peened gears and internals

5 engagement dogs for maximum fast gear change

Parts included with the gearbox package:

Input Shaft

Bellhousing Adapter

Gear Position Sensor

IMPORTANT NOTE :

4 SPEED GEARBOX WITH CASING
(without transfer case)
5 SPEED GEARBOX WITH CASING
(without transfer case)
6 SPEED GEARBOX WITH CASING
(without transfer case)

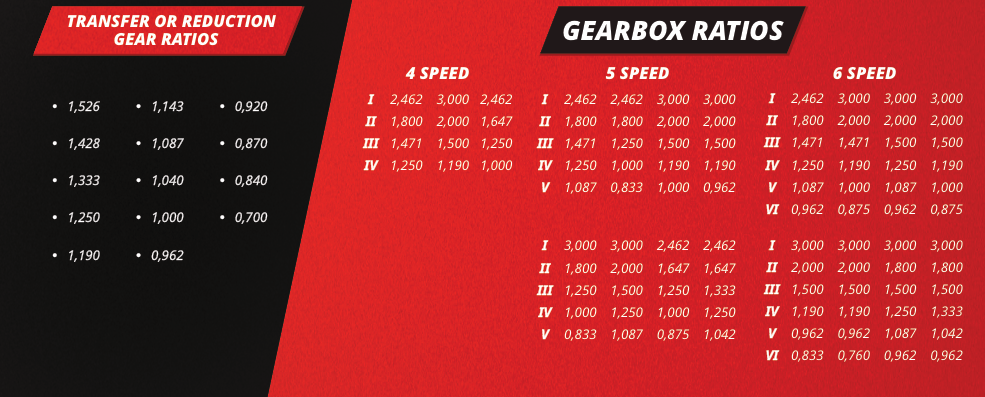

Gear Ratios

4 speed

Gear 1 Gear 2 Gear 3 Gear 4
3.000 2.000 1.500 1.250
3.000 2.000 1.500 1.190
3.000 1.800 1.250 1.000
3.000 1.647 1.250 1.000
2.462 1.800 1.471 1.190
2.462 1.800 1.471 1.250
2.462 1.647 1.250 1.000



Gear Ratios

5 speed

Gear 1 Gear 2 Gear 3 Gear 4 Gear 5
2.462 1.800 1.471 1.250 1.087
2.462 1.800 1.250 1.000 0.833
3.000 2.000 1.500 1.190 1.000
3.000 2.000 1.500 1.190 0.962
3.000 1.800 1.250 1.000 0.833
3.000 2.000 1.500 1.250 1.087
2.462 1.647 1.250 1.000 0.875
2.462 1.647 1.333 1.250 1.042



Gear Ratios

6 speed

Gear 1 Gear 2 Gear 3 Gear 4 Gear 5 Gear 6
2.462 1.800 1.471 1.250 1.087 0.962
3.000 2.000 1.471 1.190 1.000 0.875
3.000 2.000 1.500 1.250 1.087 0.962
3.000 2.000 1.500 1.190 1.000 0.875
3.000 2.000 1.500 1.190 0.962 0.833
3.000 2.000 1.500 1.190 0.962 0.760
3.000 1.800 1.500 1.250 1.087 0.962
3.000 1.800 1.500 1.333 1.042 0.962



Transfer / Reduction Gears

1.526
1.428
1.333
1.250
1.190
1.143
1.087
1.040
1.000
0.962
0.920
0.870
0.840
0.700
