Nuke Performance Universal Bracket 65 mm, with Bosch 200 / 044 inserts
The Nuke Performance Universal Bracket, delivered with the needed 60mm inserts to mount Bosch 044 style fuel pumps.
Extremely low weight and high durability, a universal bracket for all kinds of motorsport use. With this bracket, you can rely on the installation when pushing your car beyond limits. And with the optional inserts, this bracket suits your every need.
Single or dual brackets are available
60mm inserts, perfect fitment, and durability
Bosch 044 style fuel pump inserts included
Extremely lightweight design
For all kinds of motorsports use
Available in single or dual setup, choose version when placing order. For single or dual fuel pump assembly. Specially designed and manufactured for motorsports, racing, and high-performance vehicles.
Included insert (60mm) fits :
• Bosch 044 fuel pump
• Bosch 200 fuel pump (with the plastic adapter mounted)
• Deatschwerks 350il fuel pump
• AEM 380 LPH fuel pump
Additional inserts :
• Nuke Performance Fuel Filter Slim 10 / 100 micron (55 mm)
• Deatschwerks DW250il (52mm)
• Ti Automotive (Walbro) GSL 392 (43 mm)

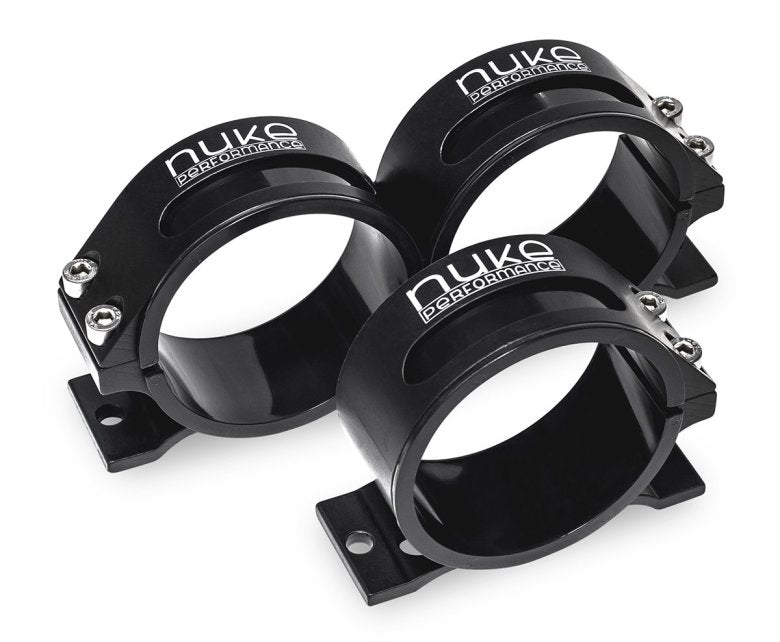

Available in several setups for both filters and fuel pumps
The Nuke Performance Universal Bracket is made out of a billet aluminum lightweight design. It is available in several setups with inserts for different applications. The bracket holds objects with an outer diameter of 65mm (2.56") and with the use of inserts for 60mm (2.36"), 55mm (2.16"), and 43mm (1.69").
Bracket for in-line Nuke Performance Fuel Filter Slim : 950-01-212 / 950-02-212
Bracket for in-line Bosch 044-style fuel pumps : 950-01-201 / 950-02-201
Inserts for Walbro (Ti Automotive) GSL 392 (43mm) : 960-01-101
Inserts for Deatschwerks DW250il (52mm) : 960-01-104
Inserts for Nuke Performance Fuel Filter Slim (55mm) : 960-01-102

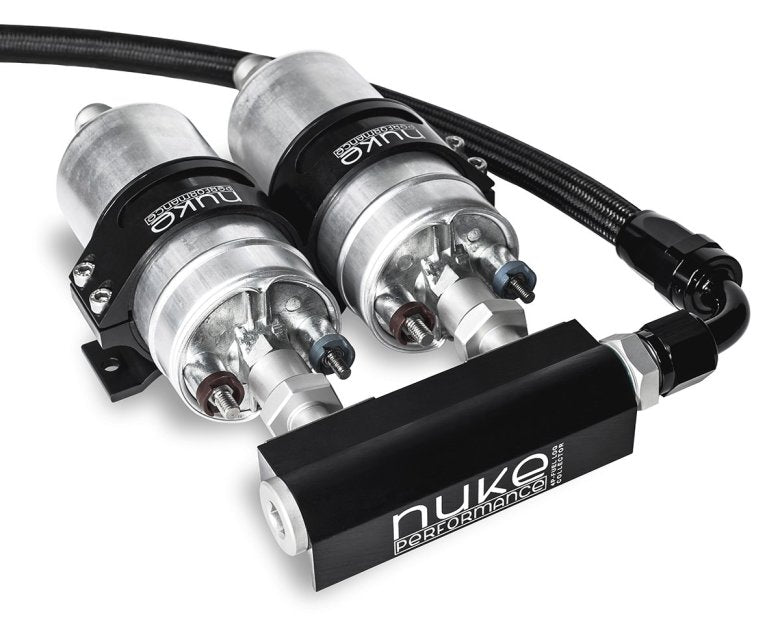

Combine together with the universal 4p fuel log for a space-efficient and effective installation
The Nuke Performance Fuel Log Collector 4P effectively combine two fuel pumps into one fuel line or routes a fuel pump straight into a fuel filter in a space-efficient setup for a clean and simple installation. Available in several different setups and is designed to work perfectly with the Nuke Performance Dual Universal Bracket.
Developed upon high demands from worldwide motorsports
Co-developed with worldwide motorsports teams, the Nuke Performance Universal Bracket has been designed, developed, and manufactured by Nuke Performance in Sweden to give maximum quality even in demanding conditions. There is no substitute for the quality of Nuke Performance!

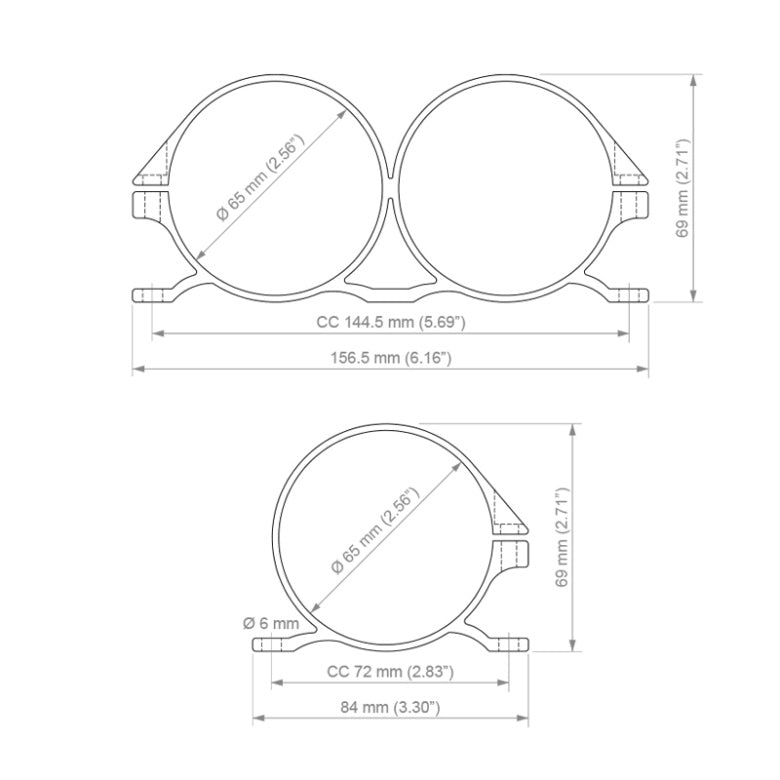

Nuke Performance Universal Bracket 65 mm Specifications:
For more information about specifications, contact us directly.
| Single Universal Bracket | |
| Height | 68mm (2.67") |
| Width | 83mm (3.26") |
| Depth | 30mm (1.18") |
| Weight | 35g (1.23oz) |
| Inner diameter | 65mm (2.56") |
| Included insert | 1 x 60mm (2.36") insert |
| Part # / EAN | 950-01-201 / 7340209500622 |
| Dual Universal Bracket | |
| Height | 68mm (2.67") |
| Width | 156mm (6.14") |
| Depth | 30mm (1.18") |
| Weight | 73g (2.57oz) |
| Inner diameter | 65mm (2.56") |
| Center to center | 70mm (2.75") |
| Included inserts | 2 x 60mm (2.36") inserts |
| Part # / EAN | 950-02-201 / 7340209500646 |

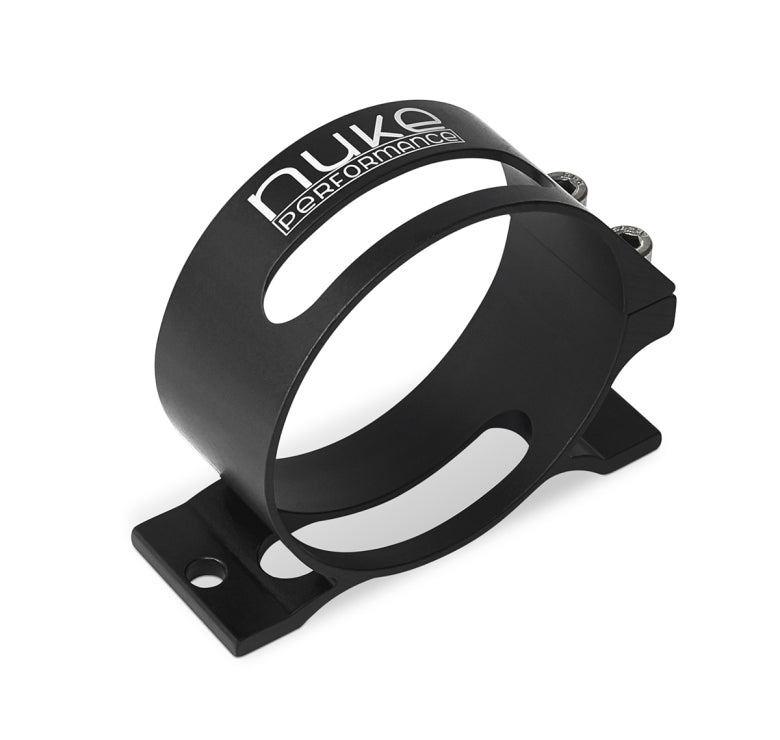

Nuke Performance Single Universal Bracket 65 mm, with 200 / 044 inserts includes:
1 x Single universal bracket 65 mm
1 x Bosch 044 style fuel pump insert 62 mm
2 x Stainless steel bolts

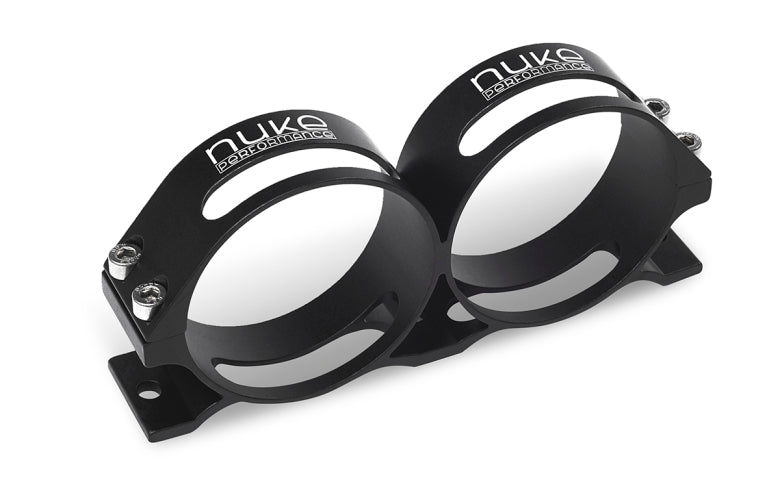

Nuke Performance Dual Universal Bracket 65 mm, with 200 / 044 inserts includes:
1 x Dual universal bracket 65mm
2 x Bosch 044 style fuel pump insert 62 mm
4 x Stainless steel bolts
