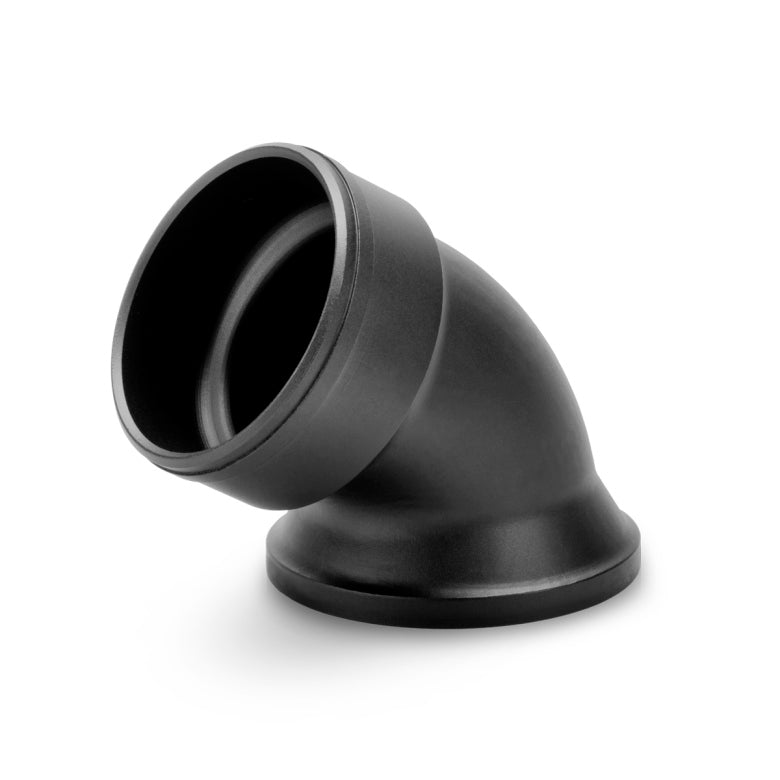

Nuke Performance Remote Mount Fill Neck, 60 Degree Elbow For Direct Mount To CFC Unit
The remote mount fill neck, 60 degree elbow for direct mount to CFC Unit lets you connect a 50mm (2") internal diameter fuel fill hose to your fuel cell equipped with a Nuke Performance CFC Unit.
The Nuke Performance CFC Unit features a flow-profile filler cap. To connect a fuel filler hose, an additional fill neck adapter is required. We offer these in several versions, both straight and angled. This 60-degree version offers a direct-mount angled installation that can be rotated in 5 fixed locations (5 x 72 degrees).
50mm (2") filler hose adapter at a 60-degree angle
Connects straight to the CFC Unit top lid, low profile installation
Safe for all types of fuel, including alcoholic fuels
Viton gasket gives a safe and secure installation
Fits perfectly with the Nuke Performance fuel filler hose
The 60-degree elbow securely attaches to the Nuke Performance CFC Unit with a 5-bolt pattern (bolts included), and replaces the standard CFC Unit filler neck and cap. Must be installed when the CFC Unit is separated from the fuel cell. Thanks to the 5-bolt hole pattern, the elbow fill neck can be mounted in 5 different locations, each in a 72-degree rotation.
Remote mount fuel filler neck with straight or 60° low-profile connection for the Nuke Performance CFC Unit.

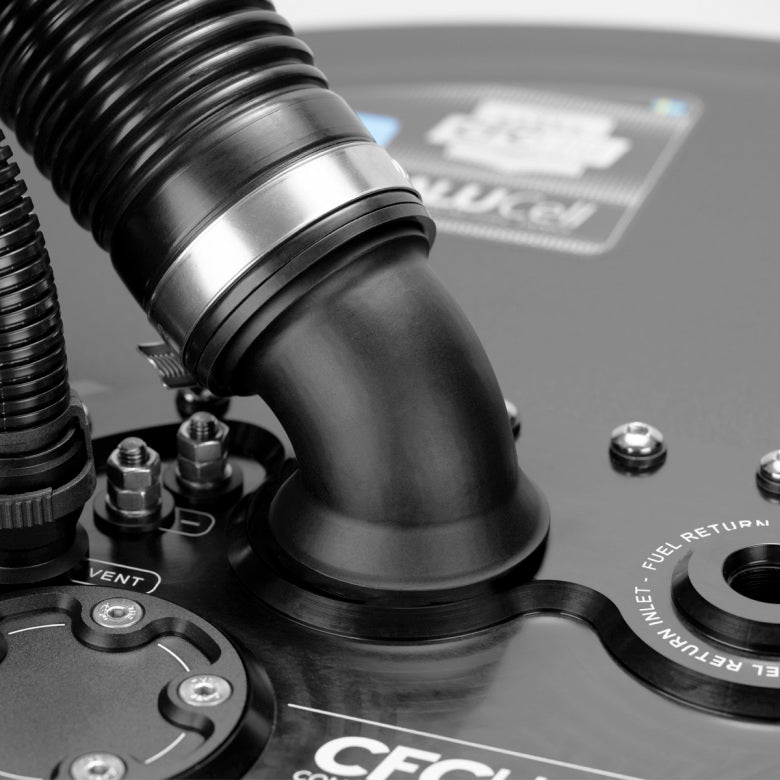

For remote fill installations, the CFC Unit is now available with two connection options. The straight adapter mounts directly to the filler neck supplied with the CFC Unit, while the new 60° elbow replaces the filler neck completely and mounts directly to the CFC Unit. This creates an ultra-low-profile solution with minimal height above the fuel cell, ideal for tight installations where every millimeter counts.
Remote mount fill neck, 60° degree elbow, direct mount Part # : 150-05-205
Remote mount fill neck, Straight Part # : 150-05-202
The barb connection is designed for 50 mm (2") fuel filler hoses and is a perfect match for the Nuke Performance Fuel Filler Hose Kits, available in both corrugated black and translucent PTFE versions.
Designed for use with Nuke Performance CFC Units and remote fuel filling systems, the filler neck provides a secure 50 mm (2") connection for our purpose-built motorsports fuel filler hoses. Choose the lightweight, extremely flexible black corrugated hose, or the translucent 100% PTFE version, which combines exceptional flexibility with fuel-level visibility. Both options are designed for long-term use with a wide range of fuels, including E85 and other alcohol-based fuels.
Fuel Filler Hose Kit, 90 cm (3 ft) Part # : 150-31-201
Fuel Filler Hose Kit, Translucent 30 cm (1 ft) Part # : 150-31-205
Fuel Filler Hose Kit, Translucent 60 cm (2 ft) Part # : 150-31-206
Fuel Filler Hose Kit, Translucent 90 cm (3 ft) Part # : 150-31-207

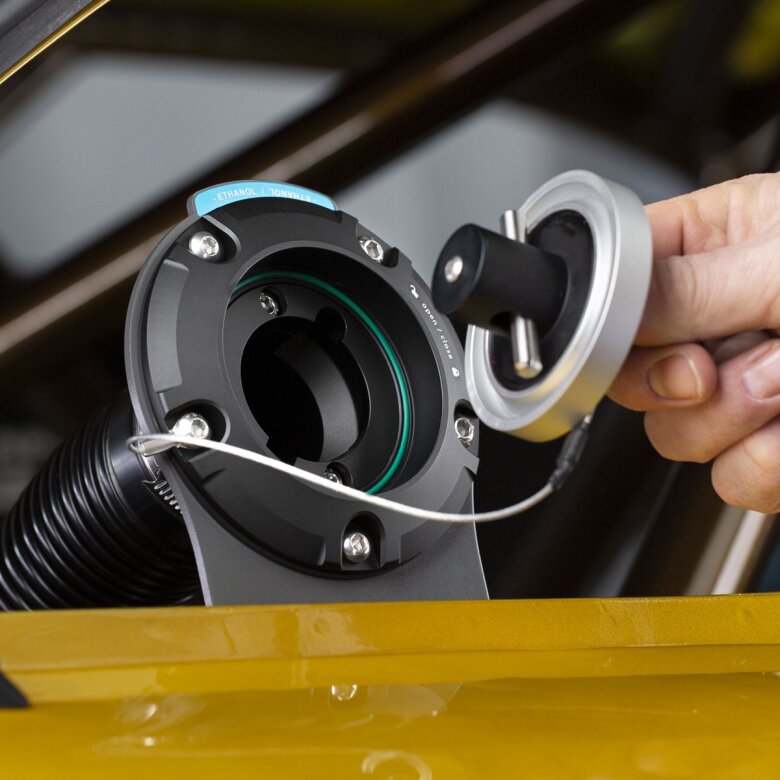

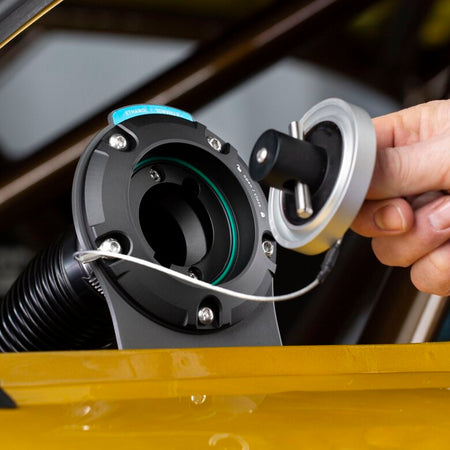

Combine with the Nuke Performance Remote quick lock filler cap for a trouble-free and easy-to-reach fuel fill installation.
Simplify your fuel cell fuel-filling process with the Nuke Performance Remote Quick Lock Filler Cap (available here), the perfect combination with the flexible and lightweight fuel filler hose (available here). The Nuke Performance filler cap features a lightweight design and a quick lock mechanism. With just a 90-degree turn, you can lock and unlock the cap with ease.
Remote quick lock filler cap Part # : 150-30-101
Remote mount fill neck, 60 degree elbow for direct mount to CFC Unit includes:
1 x Remote mount fill neck, 60 degree
1 x Viton gasket
5 x MF6S M5x16 Stainless steel bolts
