Nuke Performance Pre-assembled in tank 350mm fuel hose with SAE quick connect

In-tank convoluted black nylon fuel hose, pre-assembled in various setups. Made to be used together with the Nuke Performance fuel upgrade range or with custom installations.

The circular corrugation leaves you with a very flexible, yet sturdy fuel hose that fits within tight spaces. The nylon hose has high mechanical strength but still minimum wall thickness. Safe for all type of fuels, including alcoholic fuels such as ethanol and methanol. Our custom-designed fuel hose has an ID of 8mm in one end and 10mm in the other end.

The SAE quick connect fittings come in a wide variation and is manufactured from PA12 and is set to SAE J2044 standards. Equipped with Viton O-Ring seals, that is safe for all type of fuels, including alcoholic fuels such as ethanol and methanol. Operating pressure range -40°C up to +115°C.

Select if you intend to connect to an SAE Ø9.49 male fitting (Part # : 300-10-115) or an SAE Ø7.89 male fitting (not available in our range at this moment).

All hoses are premade to 350mm length.

Use together with a Stainless Steel single ear hose clamp 10.3-12.8mm (Part # : 150-20-304) to connect to fuel pump or fitting of choice.

Available pre-assembled setups:

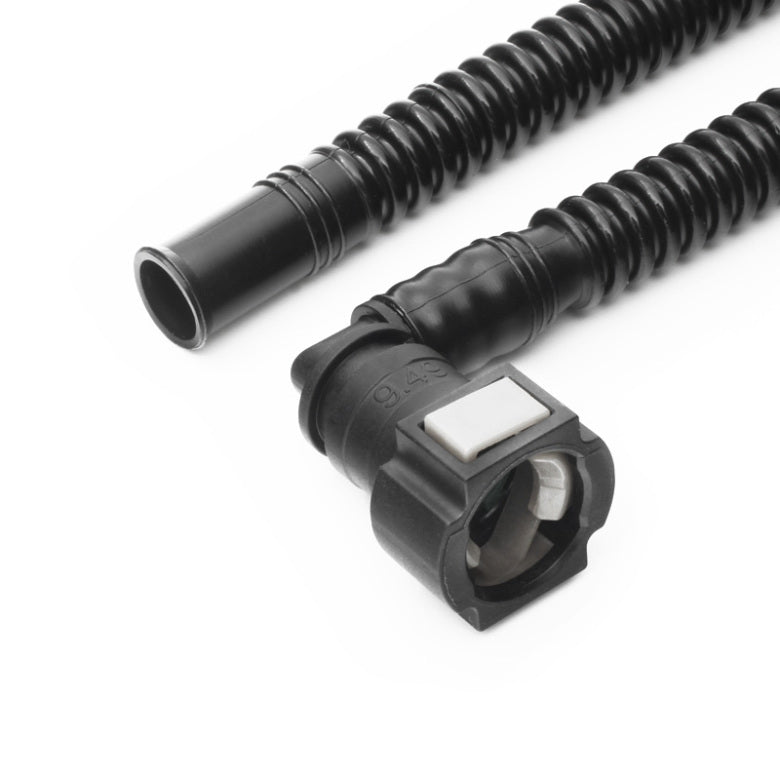

In-Tank 350mm fuel hose : SAE 9.49 90° to ID8 Part # : 150-20-305
In-Tank 350mm fuel hose : SAE 9.49 90° to ID10 Part # : 150-20-306

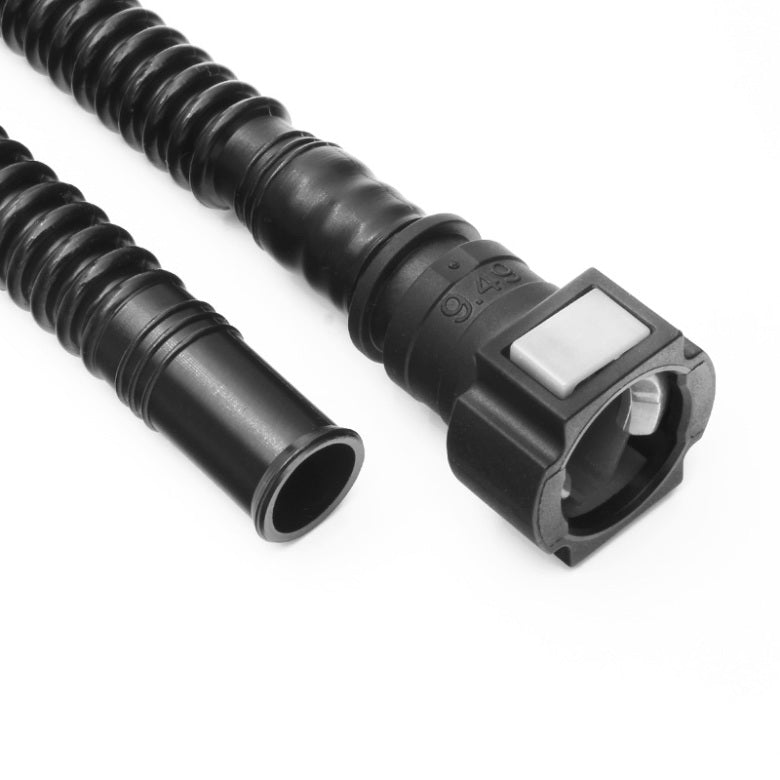

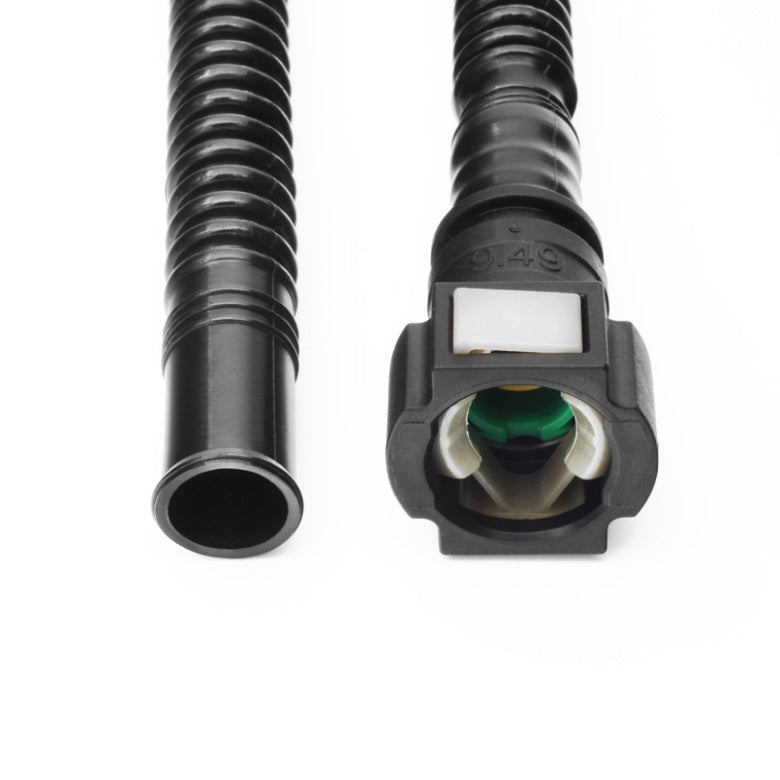

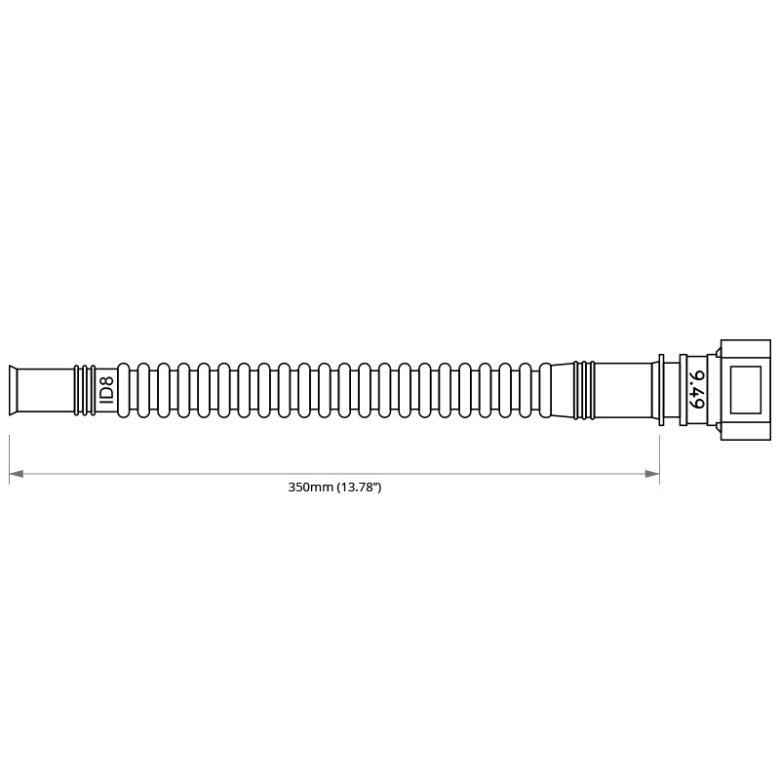

In-Tank 350mm fuel hose : SAE 9.49 Straight to ID8 Part # : 150-20-307

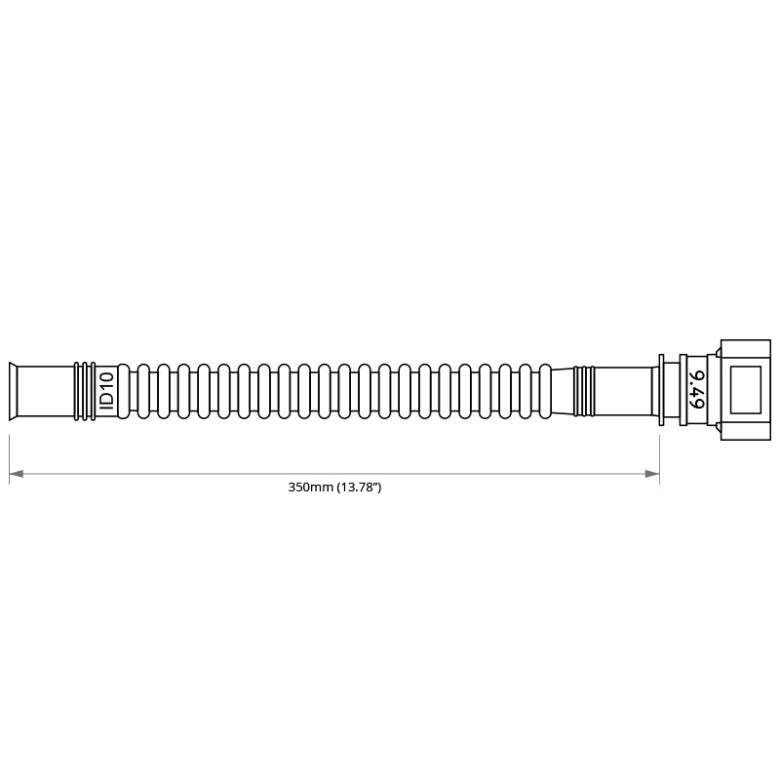

In-Tank 350mm fuel hose : SAE 9.49 Straight to ID10 Part # : 150-20-308

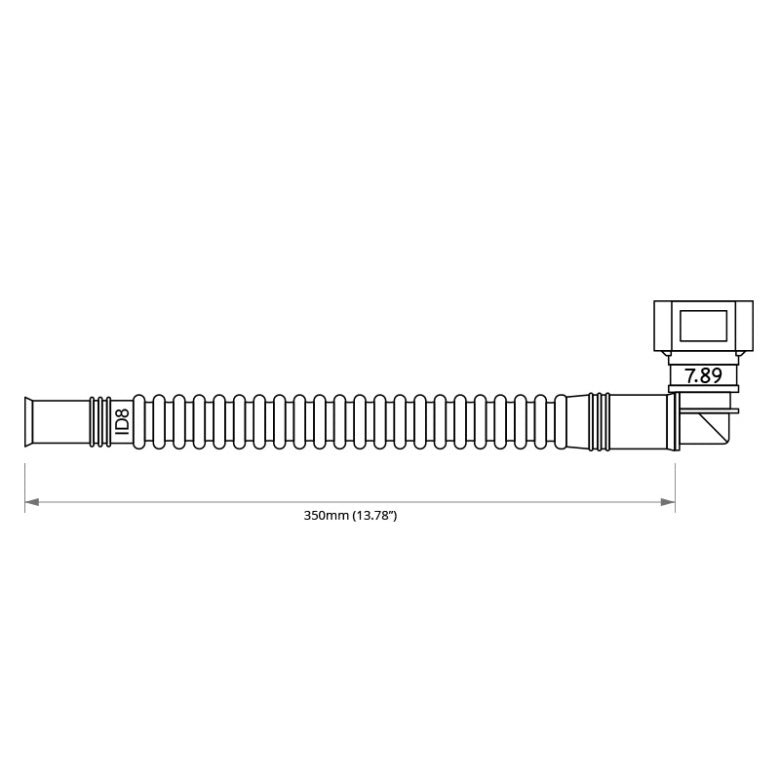

In-Tank 350mm fuel hose : SAE 7.89 90° to ID8 Part # : 150-20-309

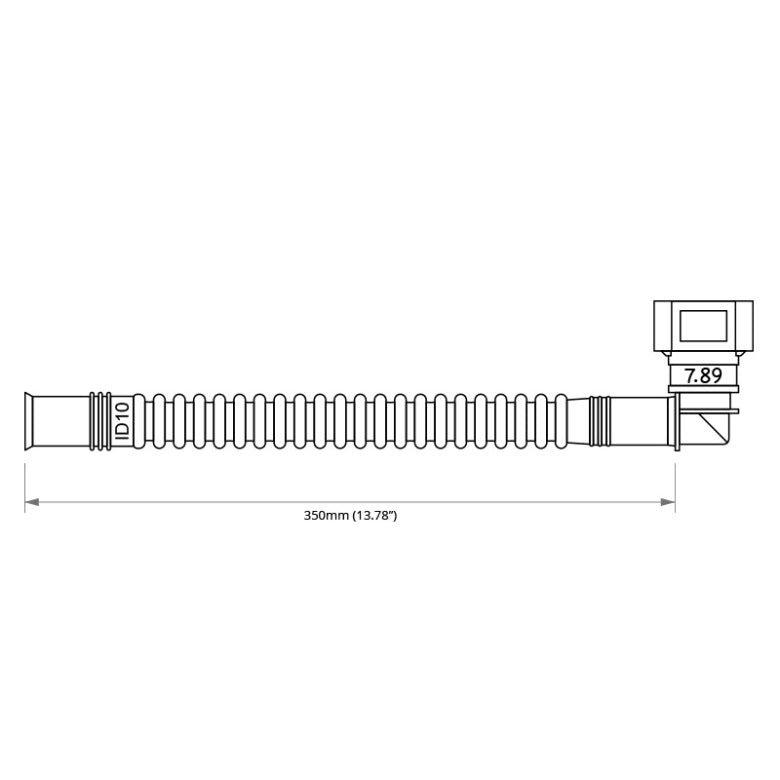

In-Tank 350mm fuel hose : SAE 7.89 90° to ID10 Part # : 150-20-310

Quantity: 1pc
