Nuke Performance GM LS1, LS2, LS3, LS6, L76, L99 fuel rail front crossover hose kit

Nuke Performance LS engine fuel rail front hose kit for the new Full Flow AN-8 LS fuel rails.

Optional AN-8 braided fuel hose crossover hose kit, specifically designed for LS engines. Engineered to pair seamlessly with the Nuke Performance LS fuel rails, part number 120-10-101.

Delivered with the needed AN-8 ORB to AN-8 Male adapters
Nitrile fuel hose, ideal for gasoline/petrol use
90 Degree AN-8 Full Flow hose ends
40cm (15.75") AN-8 nitrile fuel hose included

Easy installation and easy setup when you want to route the fuel line across the front of the engine just as in the OEM fuel system setup. For a returnless installation using the mid inlet of the driver-side intake fuel rail, you will also need to block off the back ports of both fuel rails, this is made with two AN-8 ORB Plugs.
AN-8 ORB Plug Part # : 700-04-116

For running E85, we recommend using a PTFE fuel line for maximum durability and compatibility. Avoid using a dead-end system without a return; instead, opt for two separate fuel lines feeding into the fuel rail with individual returns routed to the fuel pressure regulator, positioned after the fuel rails. This ensures optimal performance, fuel flow, and reliability.

LS1, LS2, LS3, LS6, L76, L99 fuel rail front crossover hose kit Specifications:
For more information about specifications, contact us directly.

* old generation that is no longer available for purchase

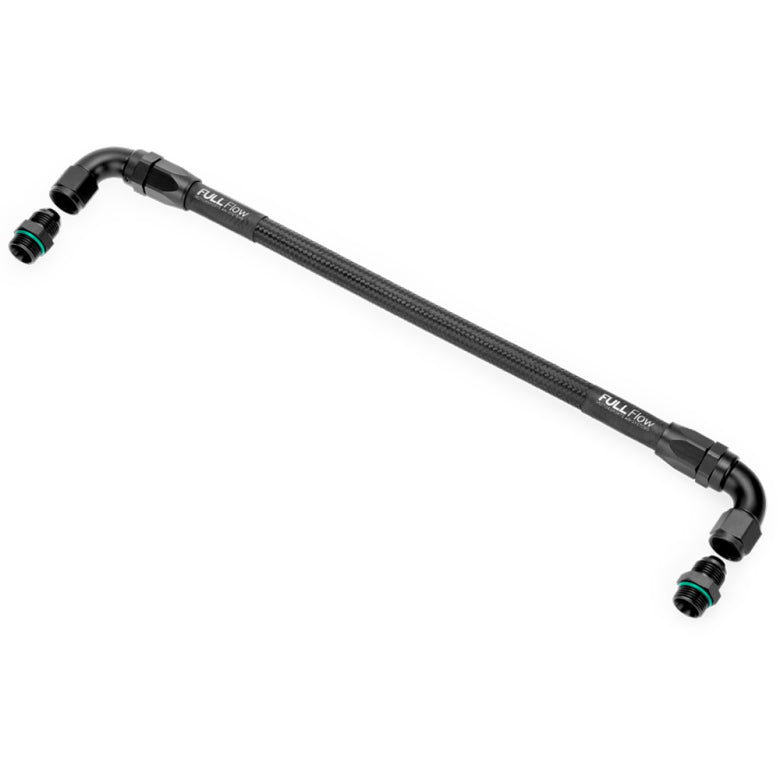

LS1, LS2, LS3, LS6, L76, L99 fuel rail front crossover hose kit includes:

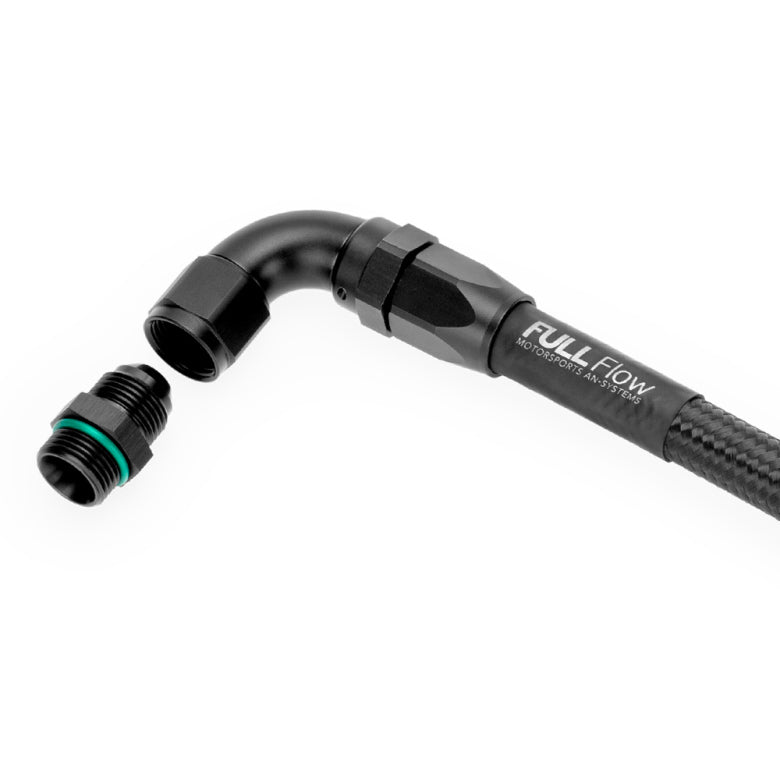

2 x Full Flow AN Hose End Fitting 90 Degree AN-8 (part number 830-09-108)
40cm (15.75") AN-8 Full Flow Nitrile fuel hose
2 x AN-8 ORB to AN-8 Male adapters
2 x Heat shrinks
