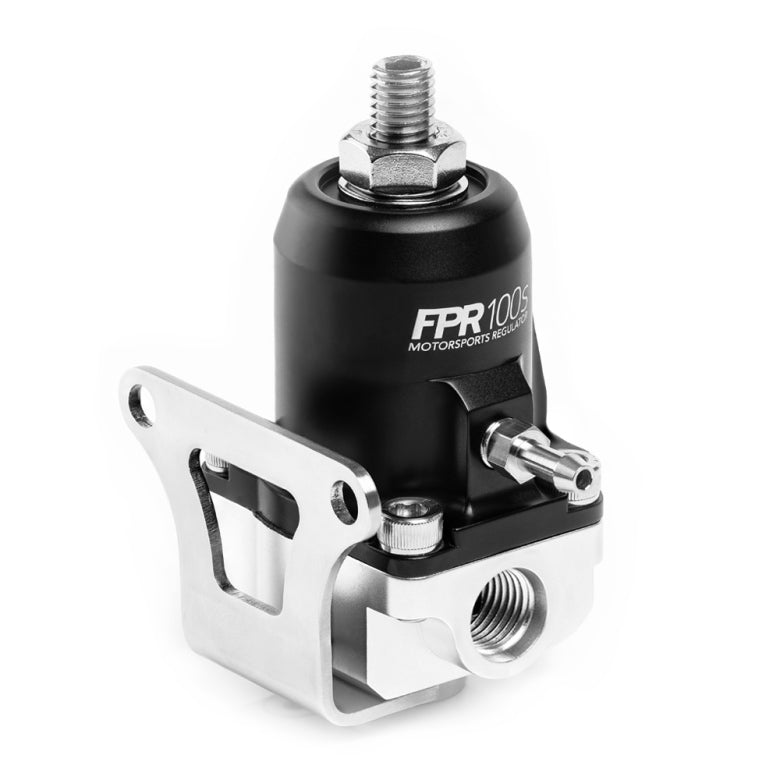

Nuke Performance Fuel Pressure Regulator FPR100s AN-6
Nuke Performance FPR100s Fuel Pressure Regulator: Redefining efficiency for motorsports fuel management.
Lightweight design, ethanol-proof fuel pressure regulator with a slim design, and easy-to-mount stainless steel brackets. Every unit is thoroughly tested before delivery, with unmatched functionality and the same high quality as always.
Lightweight motorsports fuel pressure regulator
Safe for all types of fuel including methanol and ethanol
Every unit performance tested before delivery
Fully adjustable up to 100 PSI (7 bar)
1:1 boost reference
Stainless steel mounting bracket
AN-6 ORB inlets/outlet
The most reliable 1:1 boost reference solution to bring together simple or complex fuel systems for all types of tuning or motorsports engine setup. Redesigned with precision functionality in focus. Lightweight design with the same hallmark as the entire Nuke Performance range of motorsports parts, with an integrated stainless steel bracket for safe and easy mounting for all applications and installations.
Fuel Pressure Regulator FPR100s AN-6 Specifications
For more information about specifications, contact us directly.
| Pressure range | 2 - 7 BAR (30 - 100 PSI) |
| Boost reference | 1:1 |
| Horsepower rating | 200 - 700 HP |
| Free fuel flow rating | 600 LPH |
| Fuel compatibility | Gasoline, Petrol, Methanol, Ethanol |
| Inlet thread | Dual AN-6 ORB |
| Outlet thread | Single AN-6 ORB |
| Gauge port | 1/8 NPT |
| Vacuum reference port | 1/16 NPT |
| Diaphragm | 46mm Fibre-enhanced nitrile membrane |
| Height | 93-105mm (3.66-4.13")* |
| Width | 53mm (2.08”) |
| Depth | 46mm (1.81”) |
| Weight | 352g (12.42oz) |
| Ball-Bearing adjustment | ≈0.14 BAR (≈2 PSI) / turn |
* depending on set pressure
Nuke Performance Fuel Pressure Regulator FPR100s AN-6 Includes:
1 x 6AN ORB plug for the additional inlet
1 x 1/8 NPT plug for gauge/sensor outlet
1 x 1/16 NPT Barb fitting for 5mm vacuum hose
1 x Stainless steel mounting bracket
2 x Stainless steel bolts for the mounting bracket
