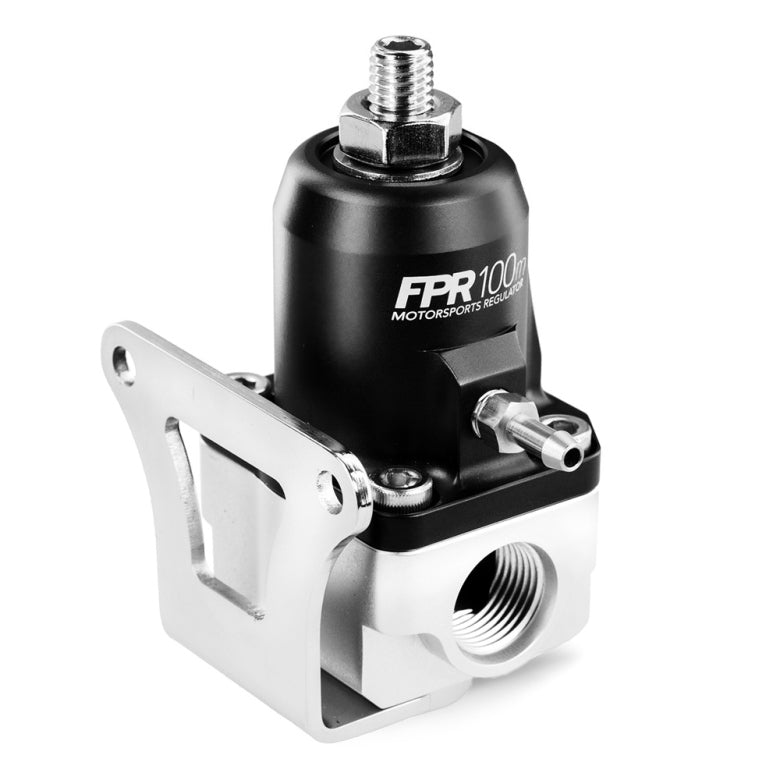

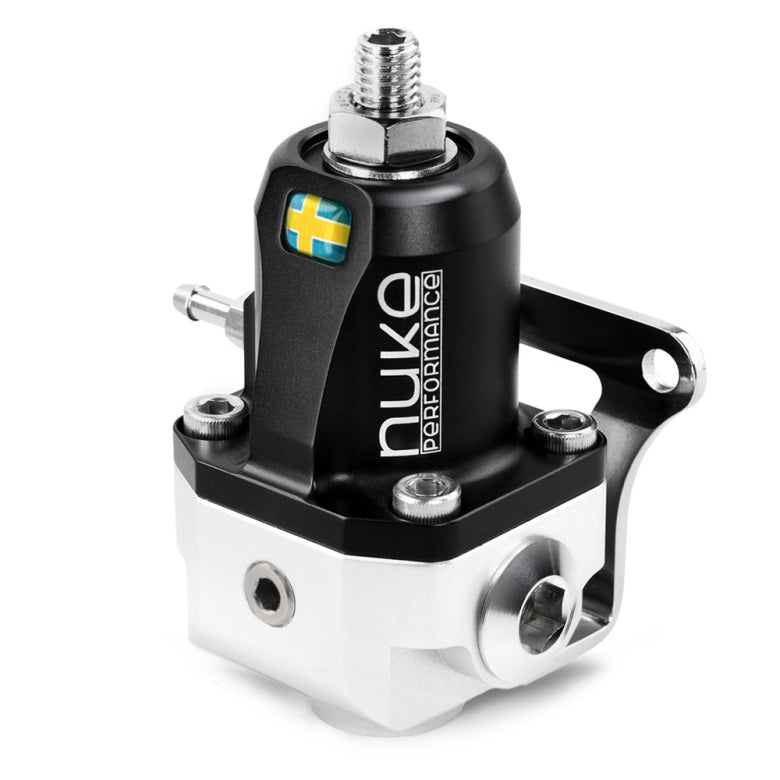

Nuke Performance Fuel Pressure Regulator FPR100m AN-8
Nuke Performance FPR100m AN-8 Fuel Pressure Regulator: Redefining versatility of motorsports fuel management.
We are proud to introduce the next generation regulator, the ultimate replacement for the classic FPR90. This is an ethanol-proof fuel pressure regulator with a slim design and easy-to-mount stainless steel brackets. Every unit is thoroughly tested before delivery, with unmatched functionality and the same high quality as always.
Universal motorsports regulator
Approved for 500-1200hp
Safe for petrol, methanol, and ethanol
Every unit is performance tested
Adjustable up to 100 PSI (7 bar)
1:1 boost reference
Stainless steel mounting bracket
AN-8 ORB inlets/outlet
As the most versatile 1:1 boost reference fuel pressure regulator on the market, the Nuke Performance FPR100m AN-8 Fuel Pressure Regulator is easy to adapt to most installations, regardless of flow and horsepower. It can tie together simple or complex fuel systems for all types of tuning or motorsports engine setups and has been redesigned with precision functionality in focus. Its lightweight design has the trusted hallmark of the entire Nuke Performance range of motorsports parts, with an integrated stainless steel bracket for safe and easy mounting for all applications and installations.
Fuel Pressure Regulator FPR100m AN-8 Specifications
For more information about specifications, contact us directly.
| Pressure range | 2 - 7 BAR (30 - 100 PSI) |
| Boost reference | 1:1 |
| Horsepower rating | 1200 HP |
| Free fuel flow rating | 1000 LPH |
| Fuel compatibility | Gasoline, Petrol, Methanol, Ethanol |

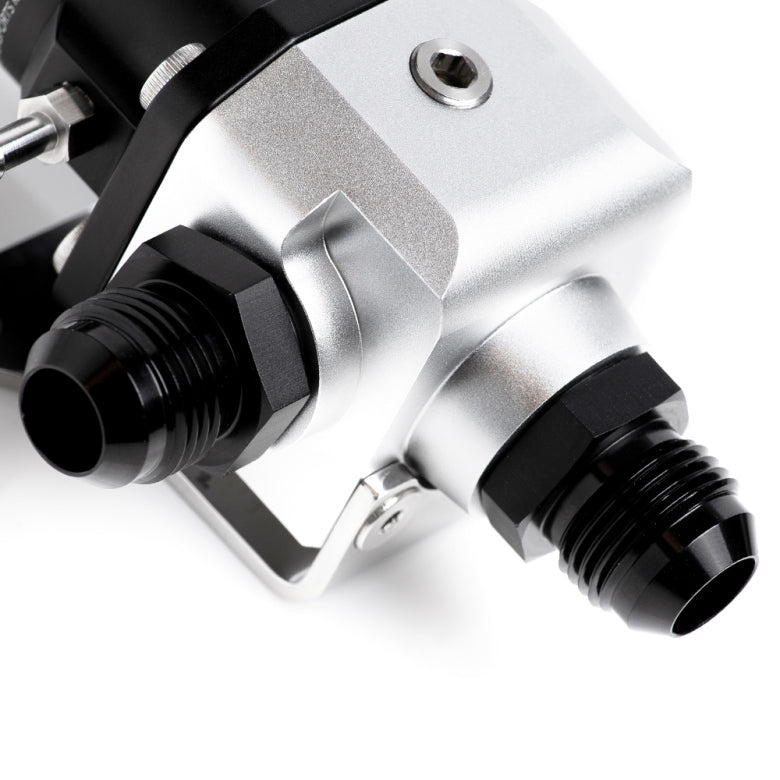

| Inlet thread | Dual AN-8 ORB |
| Outlet thread | Single AN-8 ORB |
| Gauge port | 1/8 NPT |
| Vacuum reference port | 1/16 NPT |
| Diaphragm | 46mm Fibre-nitrile diaphragm |
| Height | 98-110mm (3.85-4.33")* |
| Width | 55mm (2.16”) |
| Depth | 49mm (1.93”) |
| Weight | 427g (15.06oz) |
| Ball-Bearing adjustment | ≈0.14 BAR (≈2 PSI) / turn |
* depending on set pressure
Nuke Performance Fuel Pressure Regulator FPR100m AN-8 Includes:
1 x 8AN ORB plug for the additional inlet
1 x 1/8 NPT plug for gauge/sensor outlet
1 x 1/16 NPT Barb fitting for 5mm vacuum hose
1 x Stainless steel mounting bracket
2 x Stainless steel bolts for the mounting bracket
