Nuke Performance Deatschwerks VB40a Voltage Booster

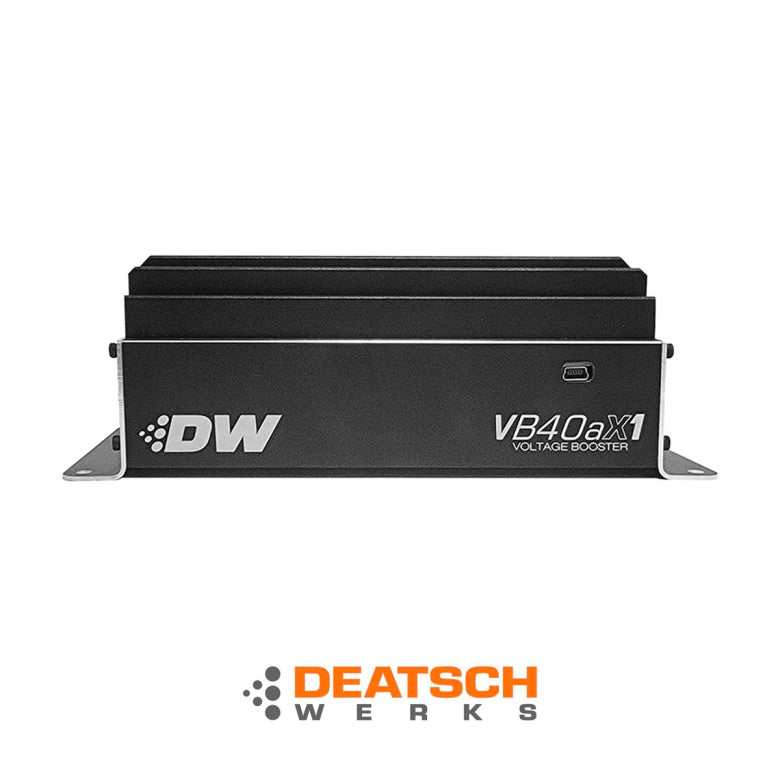

Deatschwerks VB40aX1 Single Fuel Pump 40 Amp Voltage Booster.
The DeatschWerks VB40a brings fuel pump voltage boosting to an entirely new level. The industry's first pump booster with digital programming, password protection, and a special brushless pump mode allows voltage output of up to 26 volts.
- Single / Dual fuel pump booster (X1 / X2)
- Standard mode up to 20 volts
- Brushless mode up to 26 volts
- Programming via roller wheel and digital screen
- OLED Screen
-
User-defined passcode protection

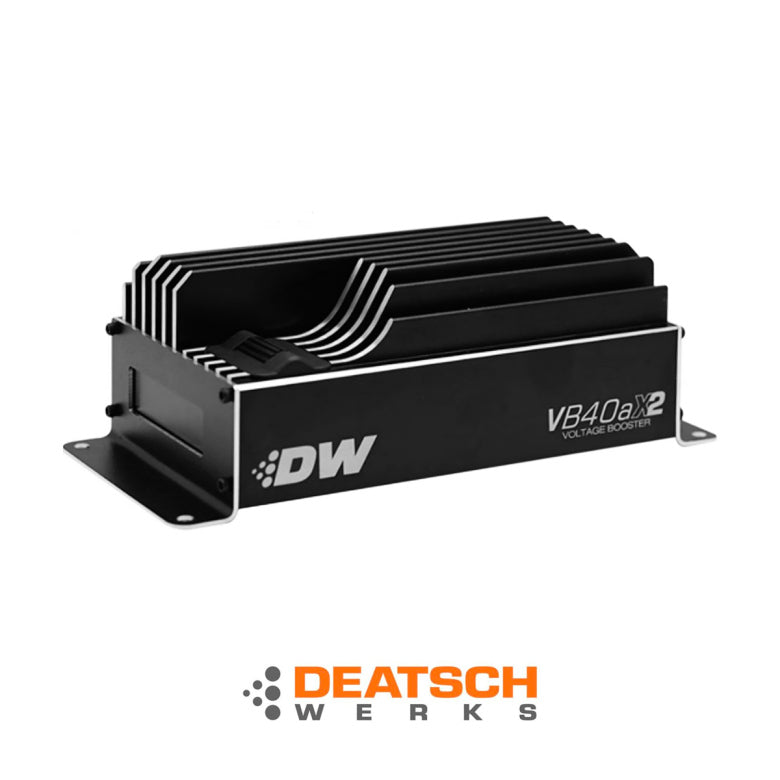

The VB40a is universally compatible with all makes and models and is available in both single-pump (VB40aX1) and dual-pump (VB40aX2) versions. The Deatschwerks VB40a voltage booster is limited to 40amps. Increased flow results will stop when the total pump(s) amperage hits 40amps.
Deatschwerks VB40aX1 Specifications:
| Weight | 2.5 lbs. (1120 g) |
| Housing materials | Anodized Aluminum Case |
| Display | OLED Screen |
| Input voltage | 6.0 - 14.5 Volts |
| Output Volt (standard mode) | 14.5 - 20 Volts |
| Output Volt (brushless mode) | 14.5 - 26 Volts |
| Max current | 40 Amps *¹ |
| Voltage settings | 14.5, 18, 20, 22, and 26 Volts |
| Trigger modes | Active Low and Always On *² |
| Ramp rates (sec) | Auto, 1.5, 1.0, 0.5, and Instant |
| Compatible pumps | Brushed and Brushless |
| VB40a wiring | 24" (610mm) 10awg |
| Output wiring | 36" (915mm) 10awg |
| Trigger wiring | 36" (915mm) 14awg |
| Fuse(s) | ATO 50 Amp |
| VB40a Power | Red Wire, 12v Key On *³ |
| VB40a ground | Black Wire, Chassis Ground |
| Trigger | White Wire, Switched Ground |
| Fuel pump power | Blue Wire, To Fuel Pump *³ |
*1 X1 : No not exceed 40amp total fuel pump current draw
*2 Always on setting is limited to 18V only
*3 VB40aX2 has two power (red) and two pump wires (blue)
Fuel pump flow rates when used with VB40aX1 Voltage Booster:
| Deatschwerks DW300 | |
| Flow rate 13.5 volts | 340 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 14.0 volts | 364 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 16.0 volts | 421 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 18.0 volts | 465 LPH @ 40 PSI / 2.75 BAR |
| Deatschwerks DW400 | |
| Flow rate 13.5 volts | 415 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 14.0 volts | 436 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 16.0 volts | 510 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 18.0 volts | 585 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 20.0 volts | 659 LPH @ 40 PSI / 2.75 BAR |
| Deatschwerks DW440 | |
| Flow rate 13.5 volts | 441 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 14.0 volts | 449 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 16.0 volts | 490 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 18.0 volts | 554 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 20.0 volts | 623 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 22.0 volts | 651 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 24.0 volts | 708 LPH @ 40 PSI / 2.75 BAR |
| Deatschwerks DW650il | |
| Flow rate 13.5 volts | 651 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 14.0 volts | 667 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 16.0 volts | 748 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 18.0 volts | 853 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 20.0 volts | 966 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 22.0 volts | 1065 LPH @ 40 PSI / 2.75 BAR |
| Flow rate 24.0 volts | 1158 LPH @ 40 PSI / 2.75 BAR |
More information about flow rates at different volts and pressure is available for all fuel pumps from Deatschwerks. All DW fuel pumps are rated at 13.5v@40psi, so that is why these sheets use this as the main reference. Contact us or Deatschwerks directly for more extensive data from the fuel pump testing.
