Deatschwerks DW810 Brushless in-tank fuel pump
Deatschwerks DW810 Brushless Kit
| Petrol horsepower | ≈ 1500 HP @ 60 PSI / 4.14 BAR (EFI engines) |
| E85 horsepower | ≈ 1125 HP @ 60 PSI / 4.14 BAR (EFI engines) |
| Flow rate | 810 LPH (40 PSI, 13.5v) 650 LPH (80 PSI, 13.5v) |
| Safe for ethanol | YES |

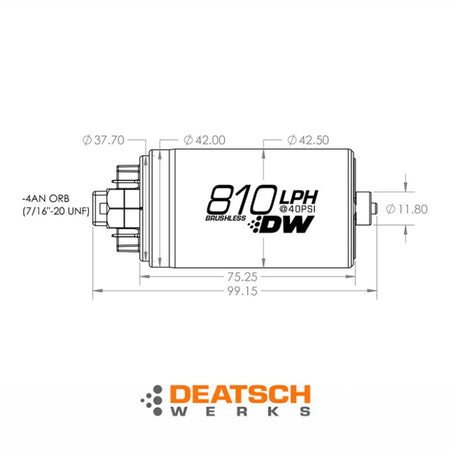

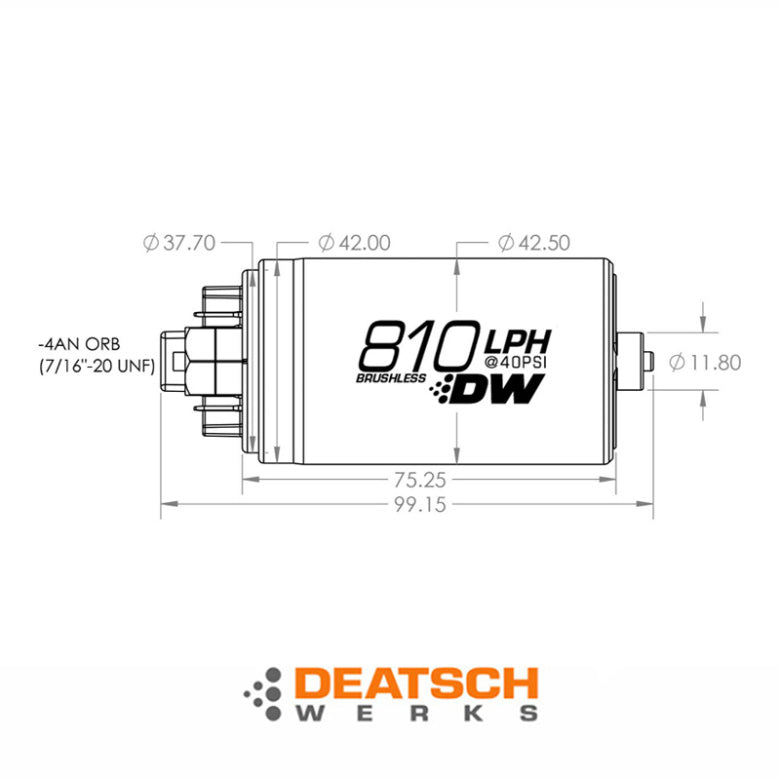

| Fuel pump setup | In-tank fuel pump, 42mm outer diameter |
| Controller unit | C105 Dual speed controller included |
| Impeller design | Single scroll composite turbine |
| Integrated check valve | YES |

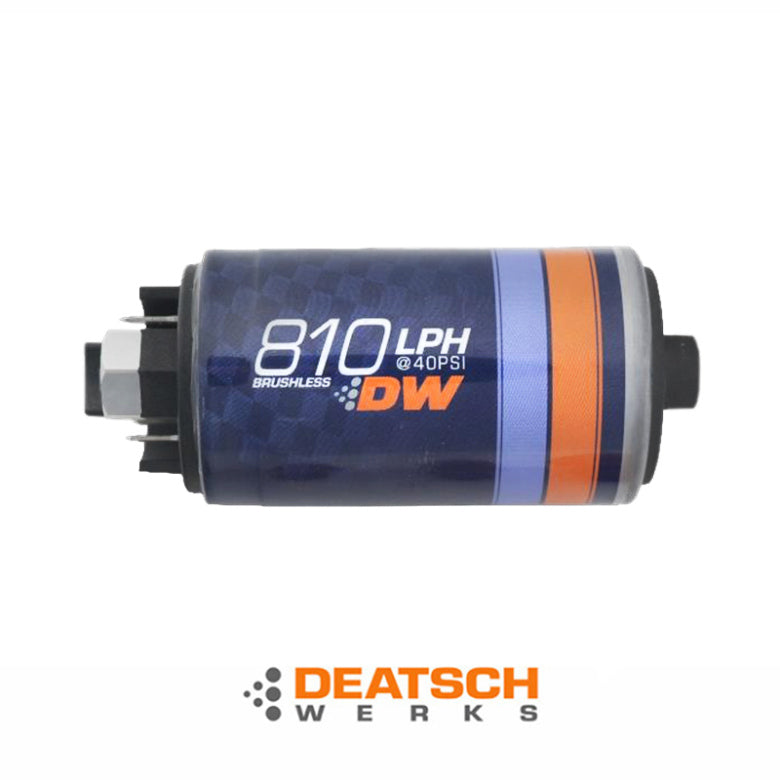

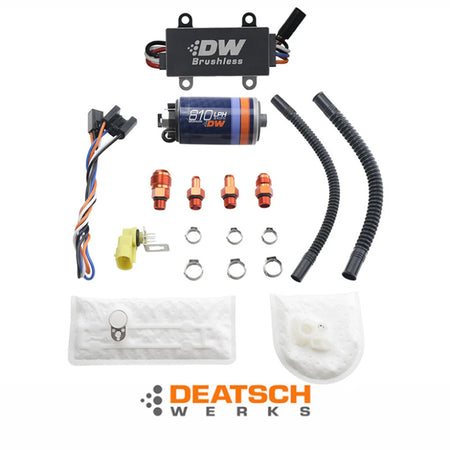

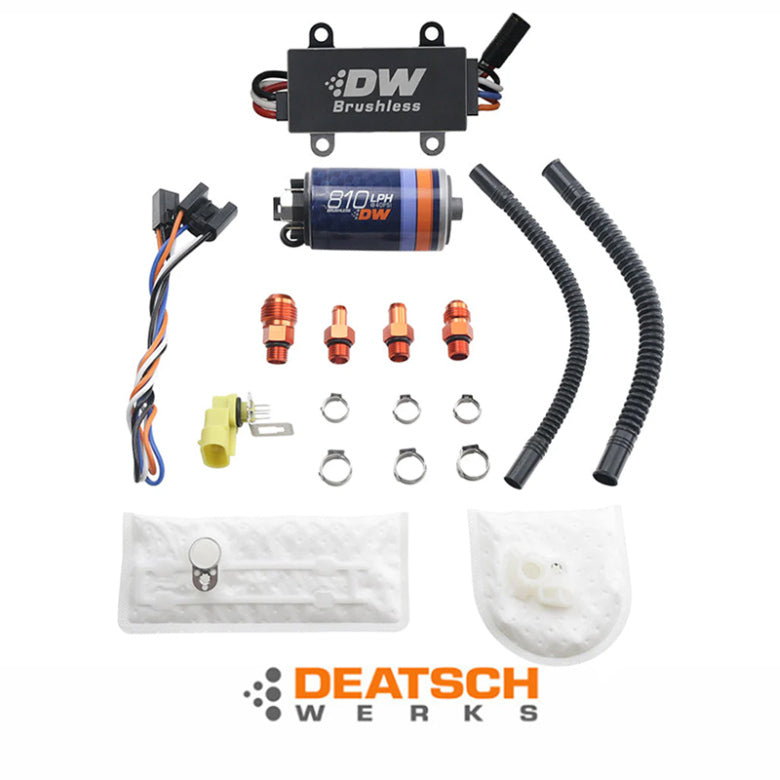

Deatschwerks DW810 brushless in-tank fuel pump with dual speed controller
DW810 brushless in-tank fuel pump brings brushless pump technology into the fuel cell, surge tank, and Nuke Performance CFC Unit. Brushless technology reduces friction and heat, increases efficiency vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.
All brushless pumps require digital controllers to drive the brushless armature. The controller included with the DW810 pump kits was designed exclusively for DW and contains features and options to maximize ease of integration into your fuel system. The DW brushless C105 pump controller is rated at 40amps and includes variable timing advance, digital thermal protection, and high-capacity integrated heat sinks.
When used with Nuke Performance CFC Unit and Surge Tank for brushless fuel pumps:
According to the manufacturer, if you are utilizing the DW440 brushless fuel pump in a dual fuel pump configuration with the Nuke Performance CFC Unit and Fuel Surge Tank for brushless fuel pumps, only three out of the four cables from the controller are required. The black cable should be omitted as it is unnecessary in this scenario. If you use a single fuel pump, you have free pins to use the fourth cable if wanted, but it is required for neither safety nor functionality.
