Nuke Performance Air Jack Valve Enclosure
Optimal installation and protection; mount and safeguard your air jack connector with ease with this Air Jack Valve Enclosure.
The most convenient way to install your air jack valve or connector is by using this lightweight aluminum Air Jack Valve Enclosure. This practical enclosure mounts directly to the vehicle body, securing the valve or connector in a protected yet easily accessible location.

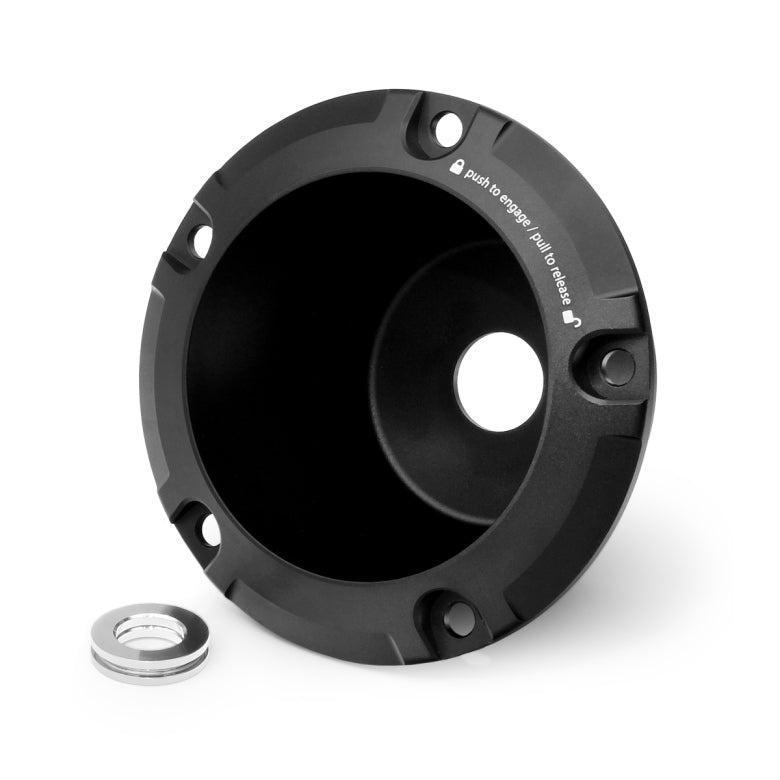

Lightweight aluminum air jack valve enclosure
Protects the air jack valve during racing
5-bolt M6 bolt pattern, easy to mount to body or chassis
Secure your air jack lance connection from the harsh conditions of the racetrack with this enclosure. Pair it with the Air Jack Valve Protection Cap to prevent debris from entering your high-pressure system, ensuring optimal performance and longevity.
Compatible with Multiple Nuke Performance Air Jack Connectors for a Secure, Long-Lasting Fit on the Track.

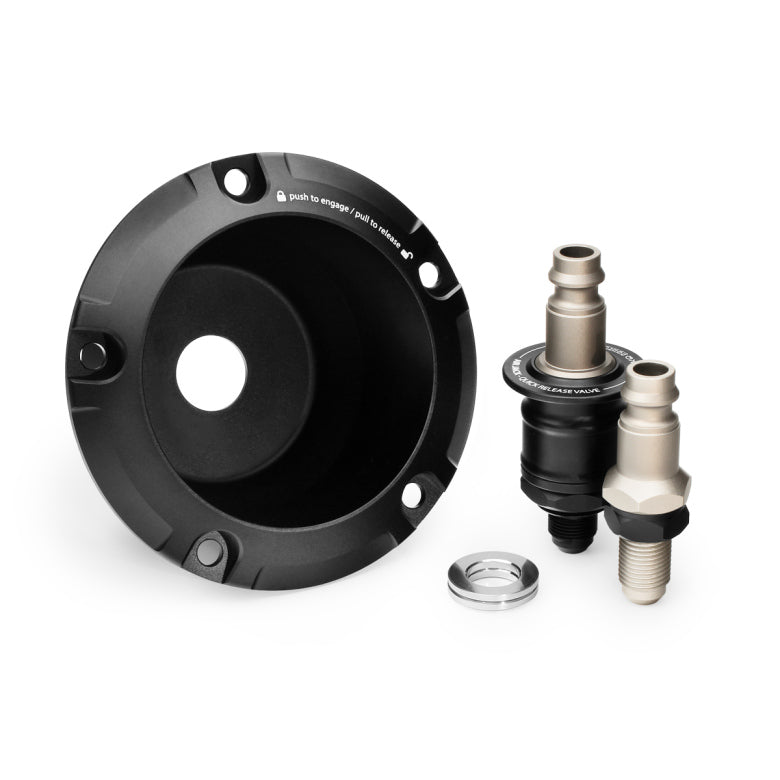

The Air Jack Valve Enclosure is compatible with two Nuke Performance connectors: the Air Jack Male Connector, AN-6, and the Air Jack Quick Release Connector Valve, AN-6. It includes a stainless steel adapter, allowing both valve types to be mounted in the same enclosure. Please note, the additional petcock valve (part number 570-20-102) is not compatible with this enclosure.
Air Jack Lance AN-6 Part # : 570-10-001
Air Jack Male Connector, AN-6 Part # : 570-20-101
Air Jack Quick Release Connector Valve Part # : 570-20-103
Ensure optimal performance and secure Your Air Jack System with a combination of the Valve Protection Cap and Enclosure.

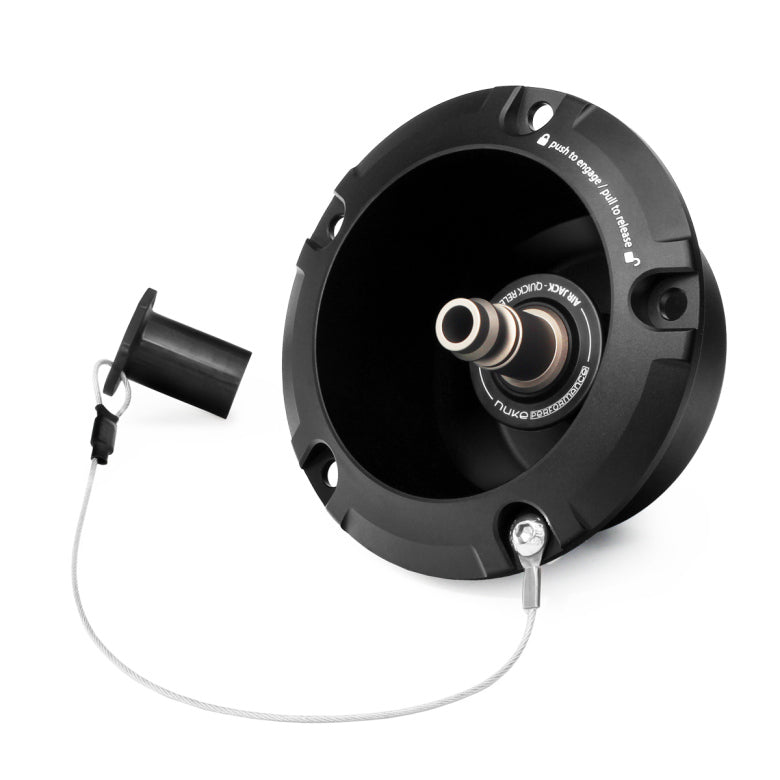

Combine the enclosure with the Air Jack Valve Protection Cap for a secure and protected installation of your air jack system. This setup keeps the valve and high-pressure system free from debris, ensuring long-term protection and optimal performance for both high- and low-pressure air jack systems. The Nuke Performance Air Jack Valve Enclosure is compatible with the convenient air jack lance, as well as the Air Jack 90C (low pressure) and Air Jack 60C (high pressure) from Nuke Performance.
Air Jack Valve Protection Cap Part # : 570-20-202

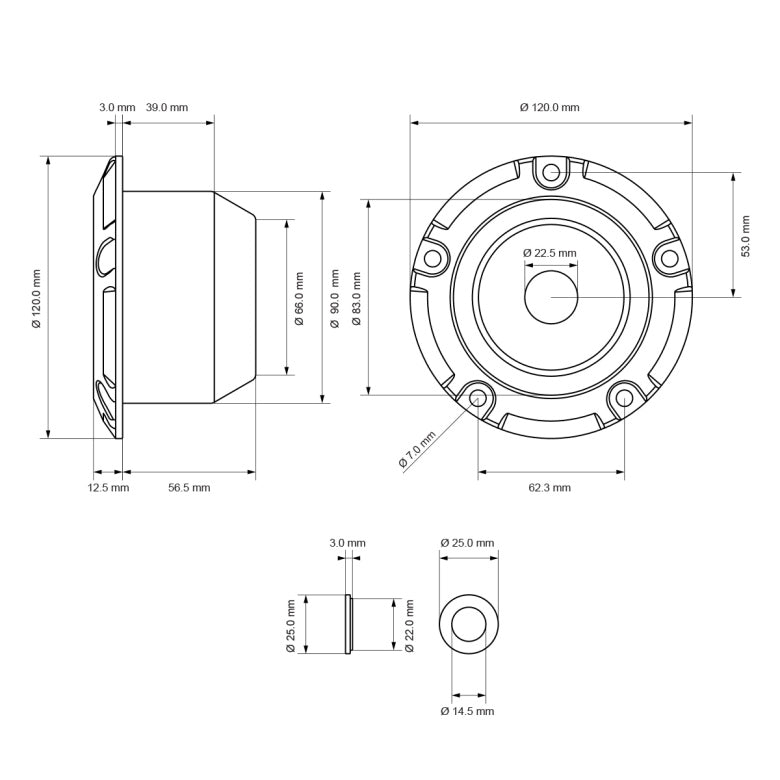

Air Jack Valve Enclosure Specifications
For more information about specifications, contact us directly.
| Material | Aluminum body, stainless steel washer |
| Fits to parts | 570-20-101, 570-20-103 * |
| Bolt dimensions | M6 (not included) |
| Bolt pattern | PCD 5x105.9 ** |
| Mounting diameter |
22.5mm (0.88") / 14.5mm (0.57") |
| Outer diameter | 120.0mm (4.72") ** |
| Height over panel | 12.5mm (0.49") |
| Depth from flange | 56.5mm (2.22") |
| Weight, with washers | 289.0g (10.19oz) |
| For motorsports use | YES |
| Part # | 570-20-201 |
| EAN | 7340209507867 |
* The enclosure is not compatible with the petcock valve, part number 570-20-102.
** The enclosure does not use the same bolt pattern or diameter as the remote filler cap from Nuke Performance.
