Nuke Performance 3/8 NPT Full Flow Swivel Banjo Fittings

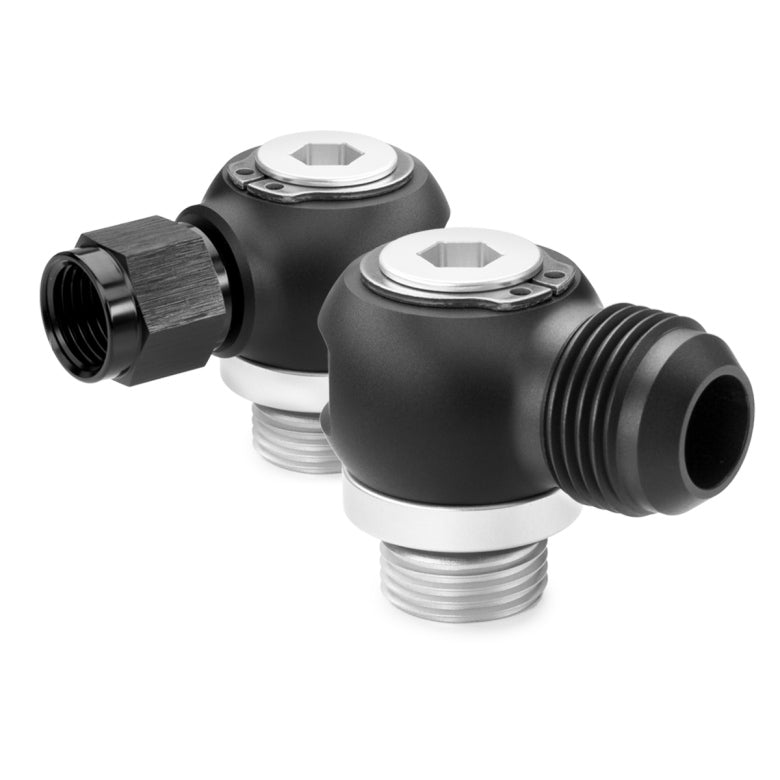

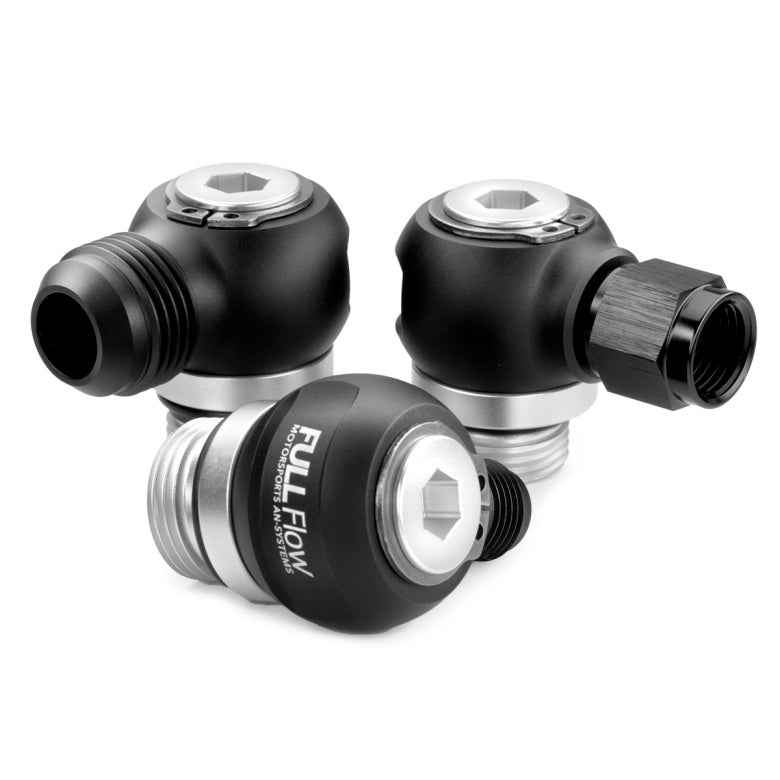

Nuke Performance Full Flow Swivel Banjo fittings are available in many sizes, and versions, and both with male and female output.
The 3/8 NPT full flow swivel banjo fittings allow for a space-efficient installation with minimal flow loss, thanks to the oversized full-flow internal design. The fitting provides 360-degree rotation even when tightened and is safe for use with all types of fuels, including alcoholic fuels.
Swivel design, 360° rotation even when tightened
Oversized internal full-flow design, minimal flow loss
A low-profile banjo fitting enables space-efficient installations
Safe for all types of fuels, including alcoholic fuels such as E85
Leak proof for both low and high-pressure installations

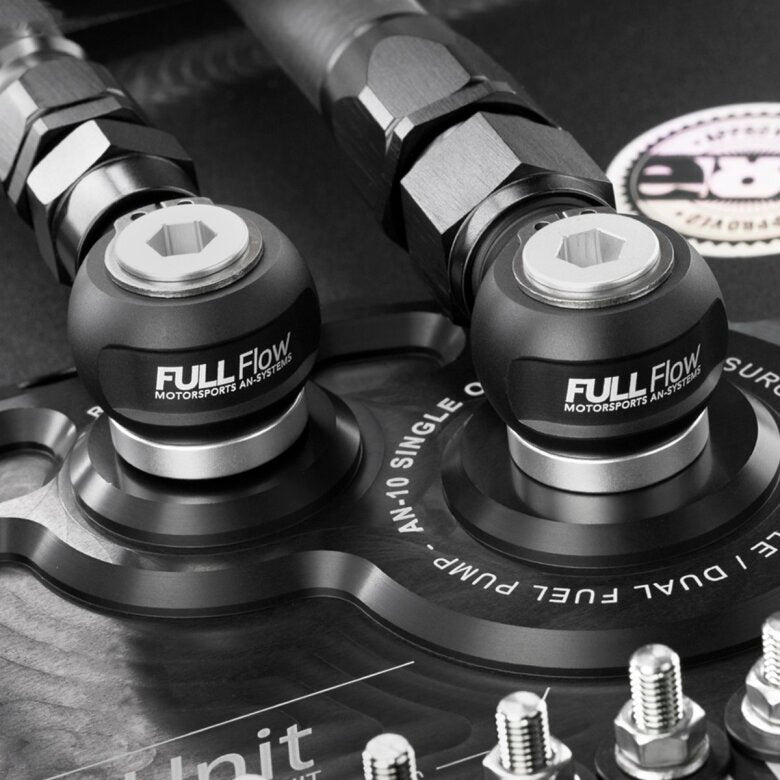

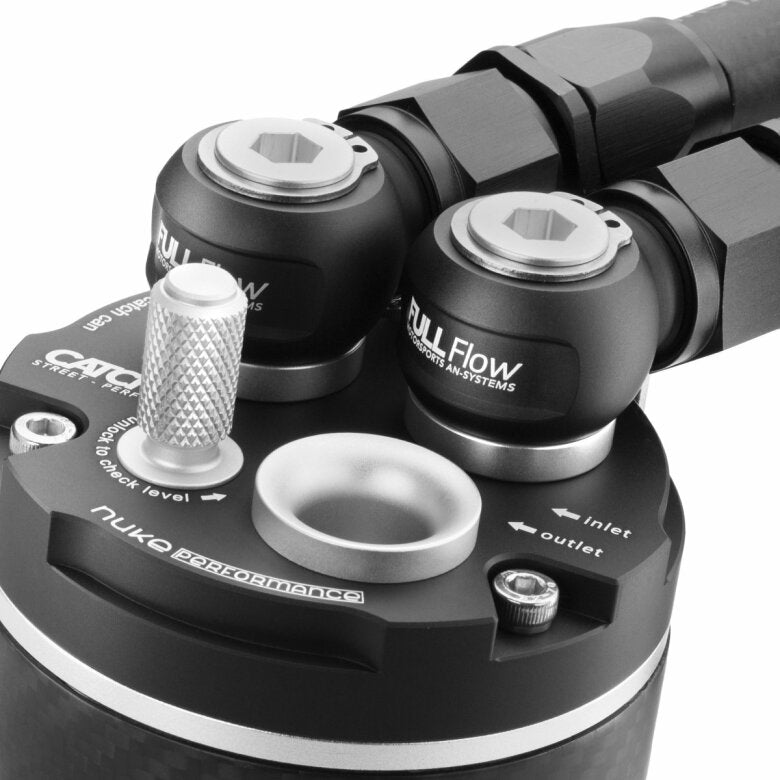

The Nuke Performance banjo fittings are available in numerous versions, making them ideal for various applications in your fuel system, oil system, vacuum, and crankcase catch can installations. They are safe for all fuels, thanks to their dual Viton O-rings setup. The Nuke Performance Full Flow Swivel Banjo fittings represent the next level of engineering for a 90-degree banjo fitting.
All NPT fittings need thread seal tape or liquid thread seal to make a functional seal. We recommend the PTFE seal tape that is both safe for all types of fuel, including alcoholic fuels such as E85, and makes a good seal when installed.
PTFE Thread Seal Tape 12mm x 0.075mm x 10m Part # : 700-05-201
3/8 NPT Full Flow Banjo Specifications:
For more information about specifications, view the product sheet.
| Bolt thread (clear) | 3/8 NPT (thread tape is needed) |
| Outlet thread (black) | AN6, AN8, AN10, AN6 Female * |
| Swivel rotation | 360 degrees, also when it is installed |
| Compatibility | Gasoline, Ethanol, Diesel, Coolant, Air |
| Diameter bolt (clear) | 27mm (1.06") |
| Diameter banjo (black) | 34mm (1.34") |
| Height, when installed |
30-40mm (1.18"-1.57") ** |
* Choose the outlet thread version when placing an order
** Depends on how far down into female thread the NPT thread is allowed to travel when installed

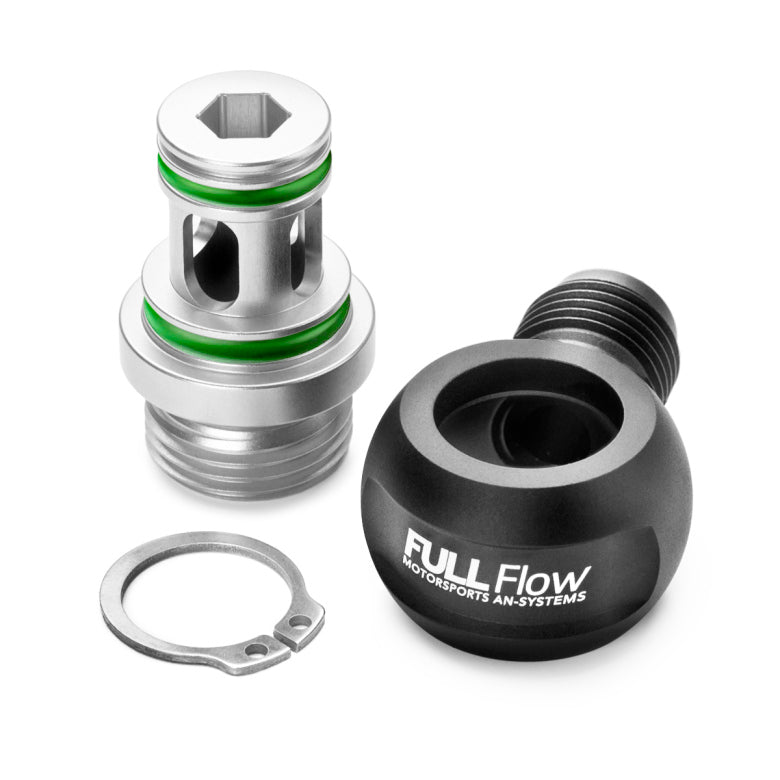

Nuke Performance Full Flow Banjo includes:
1 x 3/8 NPT threaded full-flow bolt
1 x AN6 Male, AN8 Male, AN10 Male, AN6 Female banjo
1 x Stainless steel C-clip
2 x Viton O-ring, safe for all types of fuels, including E85
All NPT thread needs to be sealed with thread sealant or thread tape to make a leakproof seal.
