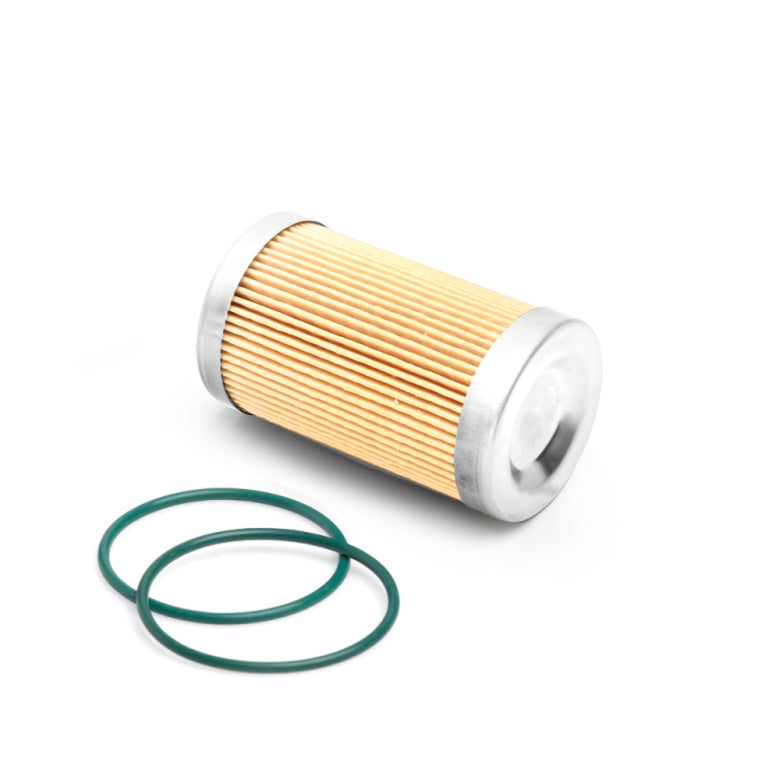

Nuke Performance 10 Micron Filter Element - Cellulose
Replacement 10-micron cellulose Fuel Filter element insert for Nuke Performance fuel filters.
This cellulose fuel filter is meant to be used with petrol/gasoline, not alcoholic fuels such as E85, and used together with the available "short" fuel filters from Nuke Performance (see matching part numbers in the description).
Over 60 sq. inches of filtering area
Cellulose filter element for gasoline/petrol
Stainless steel end caps
Works with Nuke Fuel Filter and Fuel Filter Slim
Delivered with 2x replacement Viton O-rings
Two replacement Viton O-rings are included with the filter element, the O-rings should always be changed when replacing your filter element to ensure a proper seal, make sure to use some lubrication on the threads before attaching the filter end cap to the filter body when reassembling the filter.
We recommend that the filter insert be replaced at least once per season to maintain maximum function.
Changing your cellulose filter element at least once per season is far more important if used with alcoholic fuels such as ethanol. We do not recommend that you use a cellulose element for alcoholic fuels, use our welded stainless steel inserts instead, you can use the stainless steel elements in the same filter housings as this one.
10-micron stainless steel element Part # : 200-10-105
100-micron stainless steel element Part # : 200-10-102
The filter element fits with the following items from Nuke Performance
Make sure to select the preferred filter element for the filter it is intended to be installed. Both the fuel filters with included brackets and the fuel filter slim-series from Nuke Performance use the same dimension of fuel filters and can be used for all filter bodies.
The accurate fuel filters delivered with the cellulose element are these:
Fuel Filter 10 micron 10-micron Part # : 200-01-201
Fuel Filter Slim AN-10 10-micron Part # : 200-02-201
10 Micron Filter Element - Cellulose Specifications :
For more information about specifications, contact us directly.
| Filter / Micron | Cellulose / 10 micron |
| Fuel compatibility | Gasoline, Petrol |
| Length | 75mm (2.95") |
| Diameter | 42mm (1.65”) |
| Weight | 47g (0.1lb) |
| Filter area | 60 sq. in |
| Work pressure / Max pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) |
| Flow capacity | 750 LPH |
| Pressure drop | ≈0.15 BAR (≈2.17 PSI) |
| Part # | 200-10-101 |
| EAN | 7340209500578 |
10 Micron Filter Element - Cellulose includes :
1 x 10-micron Cellulose filter element
2 x Viton O-ring
