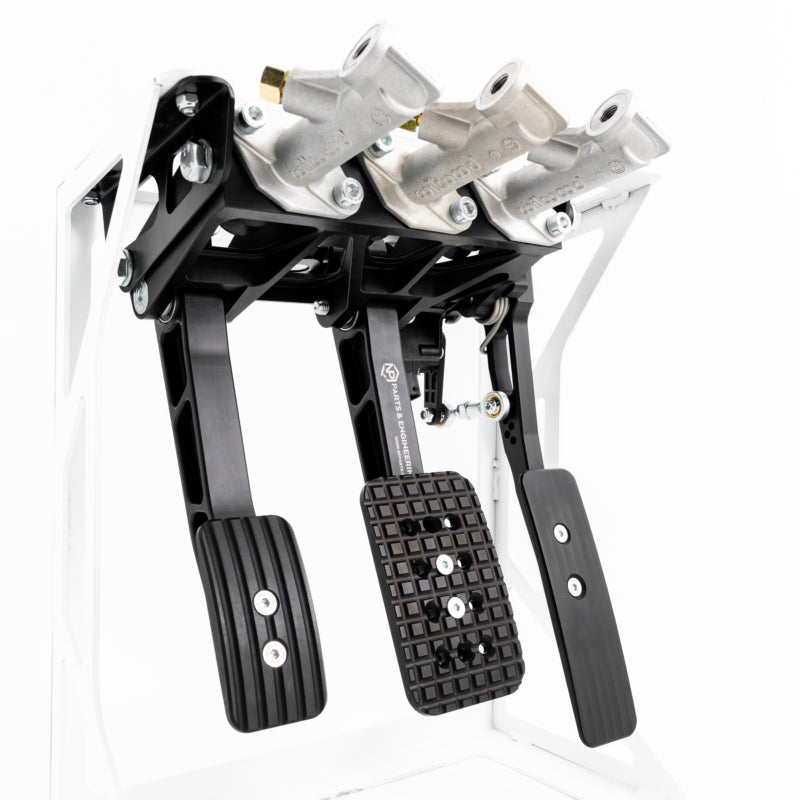

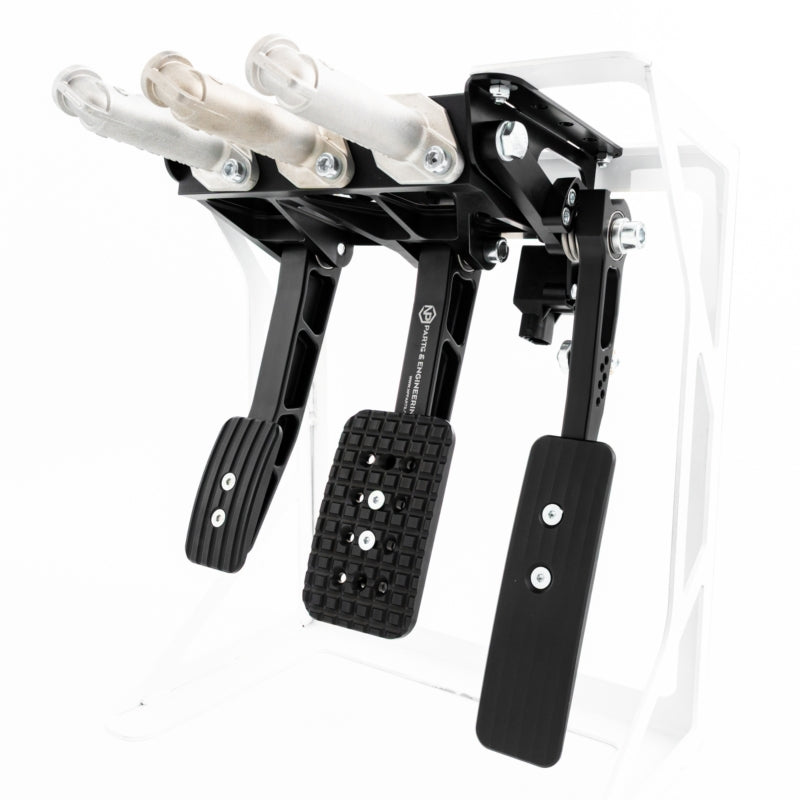

NP Top Mounted Pedal Box

Top Mounted Pedalbox – CNC Aluminium Motorsport Pedal Box by NP Parts

The Top Mounted Pedalbox is a precision-engineered motorsport pedal assembly designed and manufactured by NP Parts & Engineering. Featuring a top-mounted configuration, this pedal box is ideal for rally, drift, circuit racing, and high-performance builds where pedal positioning, rigidity, and control are critical.

Designed as a bolt-in or weldable solution, it replaces the factory pedal cluster with a lightweight, fully adjustable CNC-machined system. Its compact, low-profile construction allows installation in tight cockpit environments while maintaining exceptional structural rigidity under sustained motorsport loads.

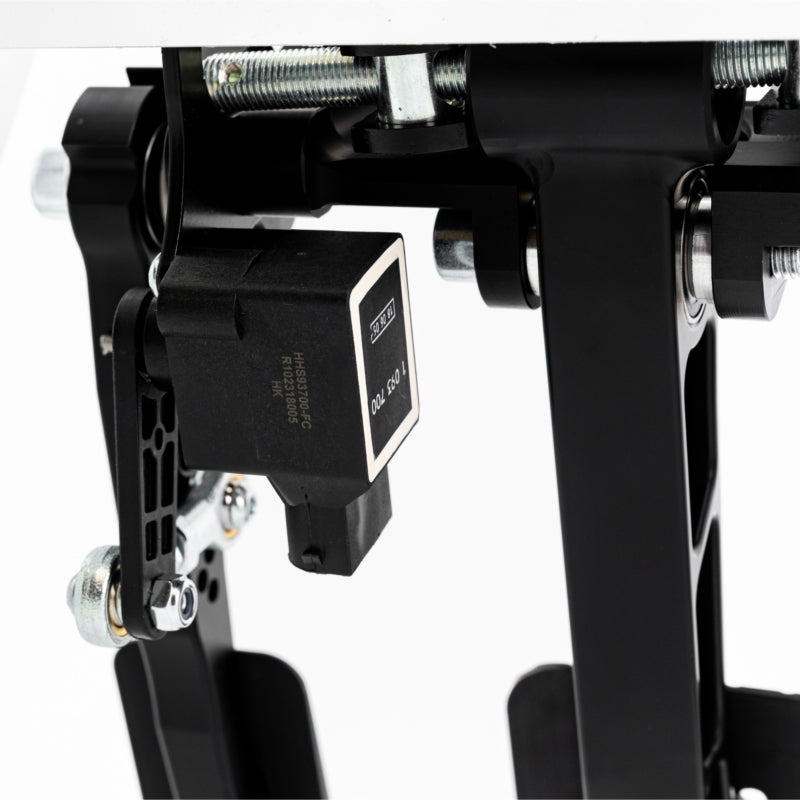

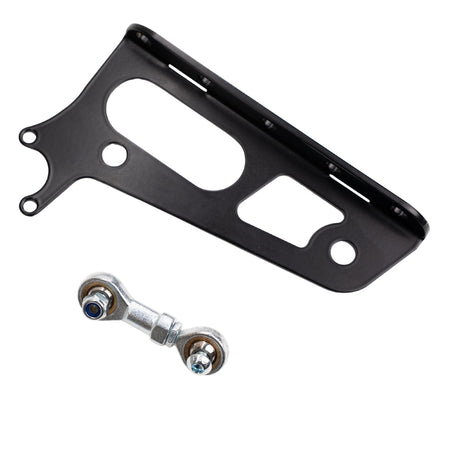

The pedalbox is supplied in a black anodized finish as standard, with custom colors available upon request. Please note: throttle sensor and throttle linkage kit are not included and must be purchased separately.

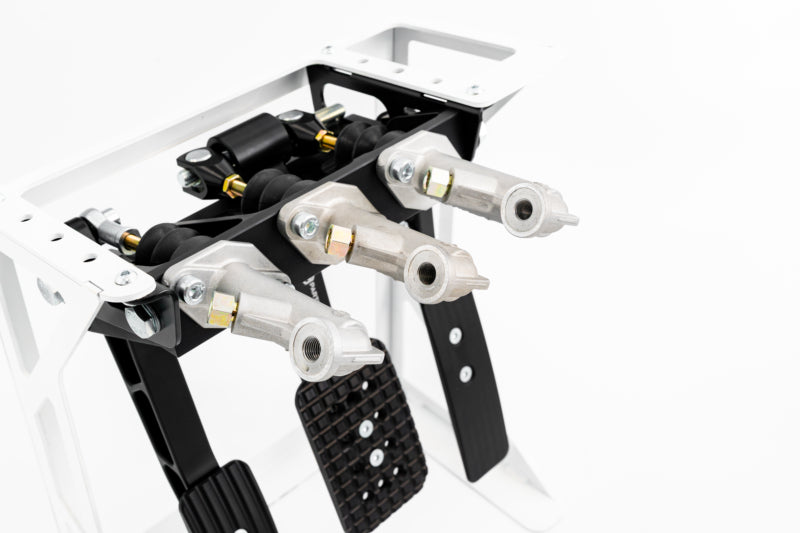

For Master Cylinders CHECK HERE .

Key Features & Benefits

• CNC-machined 6082 aluminium billet
  High-strength aluminium construction ensures maximum rigidity with minimal weight, delivering precise and consistent pedal feel in competitive driving conditions.
• Top mounted pedalbox configuration
  Optimized for motorsport applications, allowing improved pedal positioning and better integration into custom-built cockpits.
• Compact low-profile design
  Suitable for tight footwells and roll cage setups where space is limited.

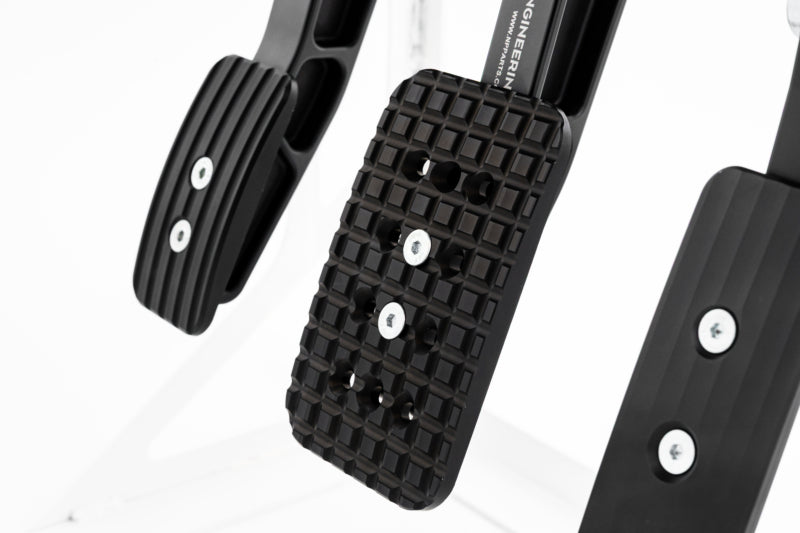

• Adjustable pedal pad angle and position
  Enables fine-tuning for driver ergonomics, supporting optimal heel-toe technique and driving comfort.
• Brake pedal ratio 5:1 to 6:1
  Engineered for strong, progressive brake modulation with efficient master cylinder actuation.
• Compatible with BMW E90 throttle pedal bracket
  Direct compatibility simplifies installation in BMW-based motorsport builds.
• Bolt-in or weldable mounting options
  Flexible installation to suit a wide range of chassis and fabrication requirements.
• Durable anodized finish
  Provides corrosion resistance and long-term durability in harsh motorsport environments.

Materials & Construction

• CNC-machined 6082 aluminium billet
• Anodized protective surface finish
• Adjustable pedal hardware for precise setup

Applications

• Rally and stage racing – precise control in demanding conditions
• Drift competition – smooth throttle and brake modulation with reliable heel-toe performance
• Circuit and endurance racing – consistent performance over long sessions
• Time attack and hillclimb builds – professional-grade cockpit solutions
• BMW E90-based projects – easy integration with OEM mounting points

Why This Pedalbox Matters

Factory pedal assemblies are designed for comfort rather than precision and are not suitable for the extreme demands of motorsport. The Top Mounted Pedalbox by NP Parts solves this by offering:

• Increased rigidity with zero flex
• Precise and repeatable pedal feel
• Fully adjustable pedal positioning
• Improved driver control and confidence

It is one of the most impactful upgrades in any serious motorsport build.

Technical Specifications

• Product type: Motorsport pedalbox
• Configuration: Top mounted
• Brake pedal ratio: 5:1 to 6:1
• Material: CNC-machined 6082 aluminium
• Compatibility: BMW E90 throttle pedal bracket
• Mounting: Bolt-in or weldable
• Finish: Anodized black (standard), custom colors available
• Throttle sensor: Not included
• Throttle linkage kit: Not included
• Intended use: Rally, drift, circuit racing, performance builds
• Condition: New
