NP Pedal box

Pedalbox – CNC Aluminium Motorsport Pedal Box by NP Parts

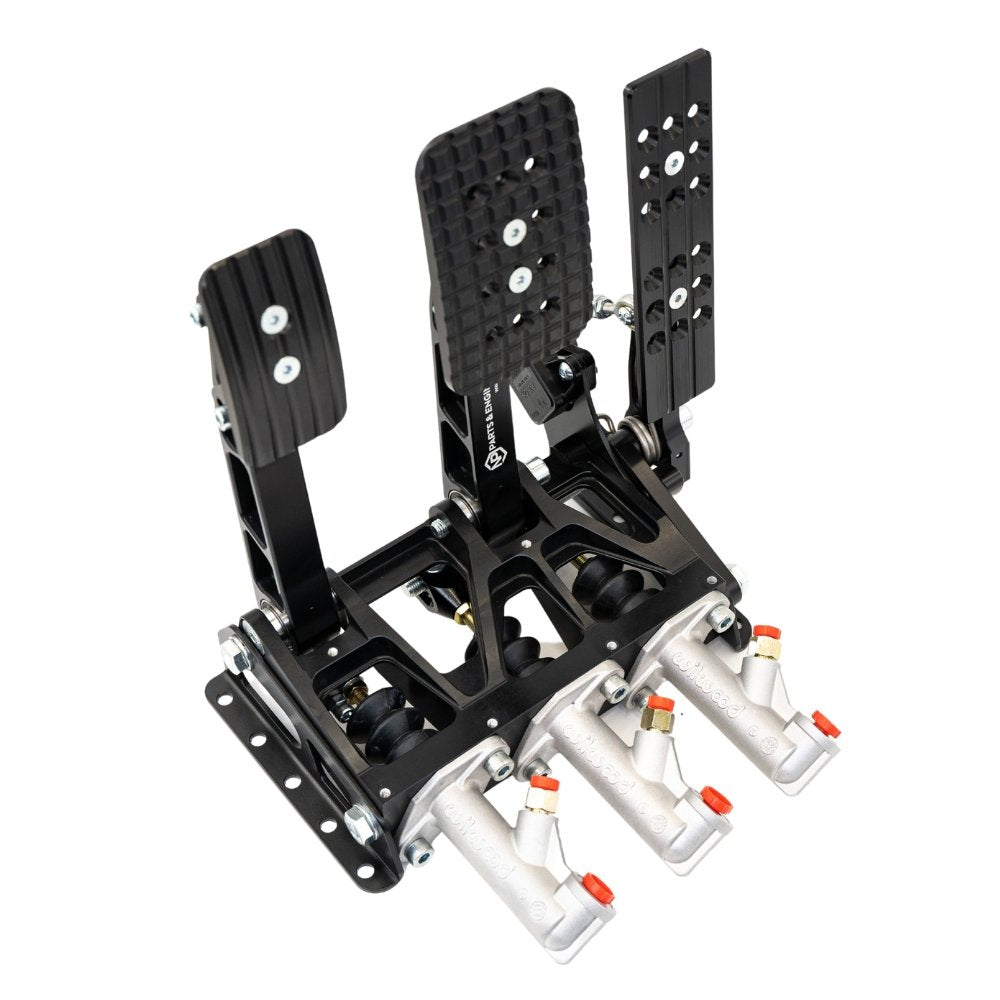

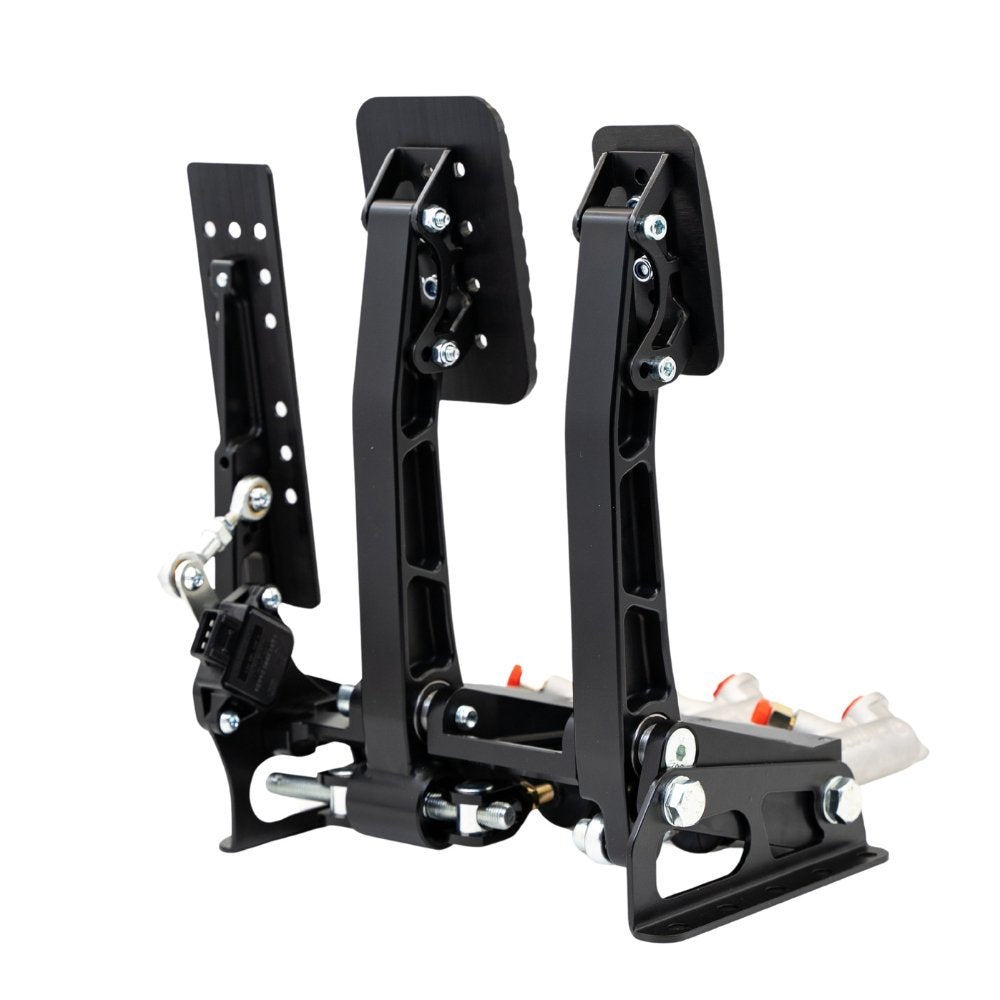

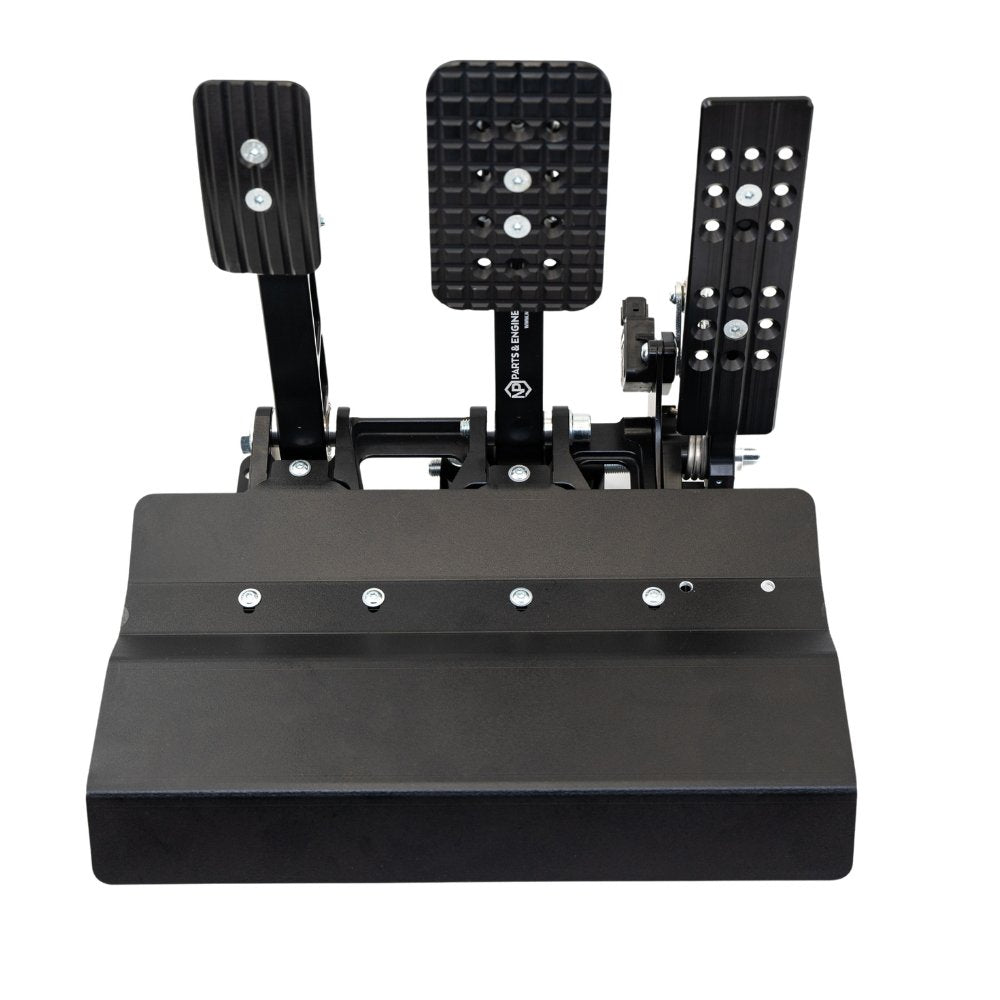

The Pedalbox is a precision-engineered motorsport pedal assembly manufactured by NP Parts & Engineering. Designed as a direct-fit or weldable unit for rally, drift, circuit, and performance driving applications, it replaces the factory pedal cluster with a lightweight, fully adjustable CNC-machined system. The low-profile 54 mm height allows installation in compact cockpit environments while maintaining a robust, rigid structure under sustained load.

The Pedalbox is available in black as standard, with other anodized colors available on request. It is sold as the pedal box unit only – the throttle sensor and throttle linkage kit must be purchased separately.

Key Features & Benefits

• CNC-machined 6082 aluminium billet – the billet aluminium construction delivers exceptional rigidity with minimal weight, ensuring precise and consistent pedal feel under competition conditions.
• Reverse pedalbox configuration – the pedal assembly uses a reverse layout, well-suited to custom pedal setups in rally and motorsport cockpit builds where space and routing constraints apply.
• Low profile design at 54 mm height – the compact height makes this pedalbox compatible with tight footwells and roll cage installations where standard pedal boxes cannot fit.
• Adjustable foot pad angle and position – foot pad geometry can be set to suit driver preference, enabling a natural pedal feel tailored to heel-toe technique and driving style.
• Brake pedal ratio 5:1 to 6:1 – the mechanical advantage ratio is engineered for strong, progressive hydraulic brake master cylinder actuation without excessive pedal travel.

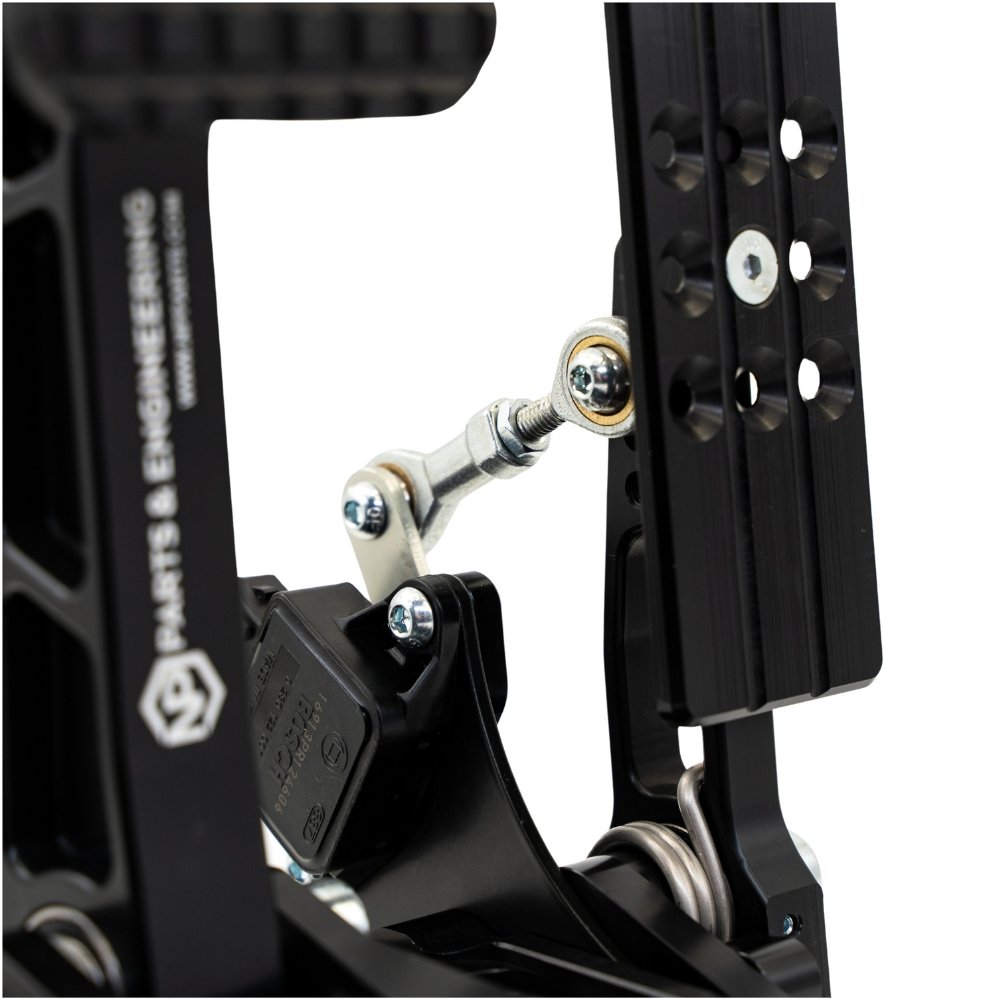

• Compatible with BMW E90 throttle pedal bracket – fits directly to the BMW E90 throttle pedal mounting bracket, simplifying installation in BMW-based builds.
• Boltable or weldable mounting brackets – the bracket system allows both bolt-in and welded installation to suit different chassis configurations and fabrication approaches.
• Standard black finish with optional colors – black is the stock anodized finish; additional colors are available with a lead time of approximately two weeks.

Materials & Construction

• 6082 aluminium billet – CNC-machined for precise dimensional accuracy, providing a lightweight and rigid structure suited to high-cycle motorsport use.
• Anodized surface finish – provides corrosion resistance and a durable surface for the operating environment of a competition cockpit.
• Adjustable foot pad hardware – allows fine-tuning of pedal geometry to match driver ergonomics and heel-toe technique requirements.

Applications

• Rally and stage racing – where a compact, rigid pedal system with precise feel is essential for consistent driver inputs.
• Drift competition – requiring accurate throttle and brake control with smooth heel-toe capability.
• Circuit and endurance racing – where pedal durability and consistent performance over long stints are critical.
• Time attack and hillclimb – for drivers building high-performance cockpits demanding professional-grade components.
• BMW E90-based builds – direct compatibility with the E90 throttle bracket simplifies installation in one of motorsport’s most common donor platforms.

Why This Pedalbox Is Important

A quality motorsport pedalbox is one of the most directly impactful upgrades in a competition car build. The factory pedal cluster is rarely suited to the demands of competition driving – the geometry is designed for comfort, not precision, and the materials cannot withstand the repeated high loads of motorsport use. The Pedalbox from NP Parts resolves this by providing an adjustable, CNC-machined platform that places brake and throttle pedals exactly where the driver needs them, with a consistent ratio and rigid construction that eliminates flex and vagueness from the pedal feel.

Technical Information

• Product type: Motorsport pedalbox
• Configuration: Reverse pedalbox
• Height: 54 mm (low profile)
• Brake pedal ratio: 5:1 to 6:1
• Materials: CNC-machined 6082 aluminium billet
• Compatibility: BMW E90 throttle pedal bracket; boltable or weldable to custom chassis
• Surface finish: Anodized black (standard); other colors available to order
• Throttle sensor: Not included – sold separately
• Throttle linkage kit: Not included – sold separately
• Intended use: Rally, drift, circuit motorsport, performance builds
• Condition: New
