NISSAN - SKYLINE - STAGEA Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm

No reviews
€1.662,96
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KNI23582-2G
  • Model SKYLINE and STAGEA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews
Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

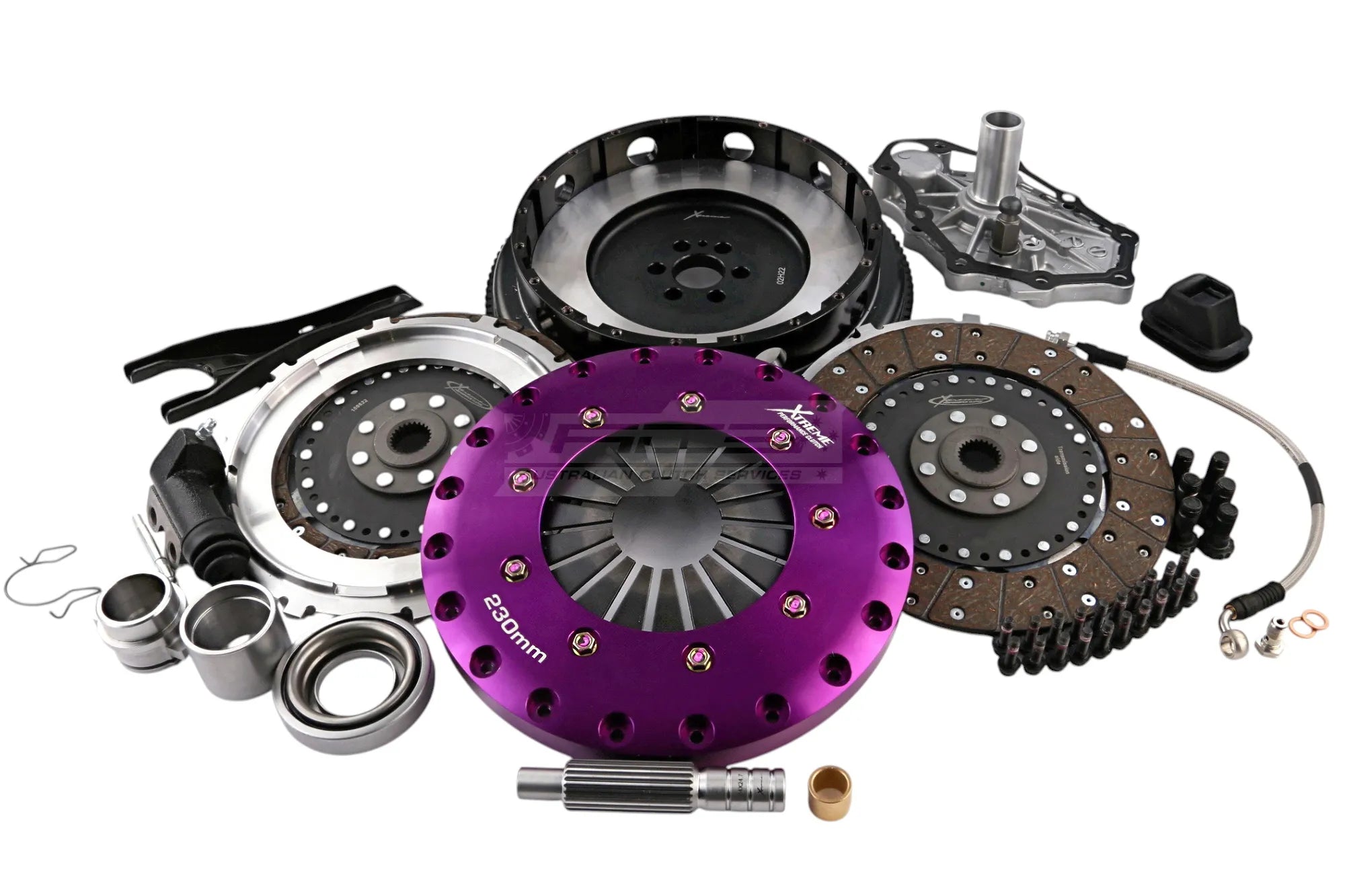

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.



Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
  • Nissan Skyline R32 GT-R 2.6 Twin Turbo 4x4 RB26DETT (1989.04-1993.06) - Pull to Push Type Conversion
  • Nissan Skyline R33 GT-R 2.6 Twin Turbo 4x4 RB26DETT (1994.07-1999.09) - Pull to Push Type Conversion
  • Nissan Skyline R34 2.5 Turbo RB25DET (1998.05-2002.08) - Pull to Push Type Conversion
  • Nissan Skyline R34 2.5 Turbo RB25DET (1998.05-2006.01) - Pull to Push Type Conversion
  • Nissan Skyline R34 2.5 4x4 RB25DEH (1998.06-2000.07) - Pull to Push Type Conversion
  • Nissan Skyline R34 2.5 Turbo RB25DET (1998.06-2006.01) - Pull to Push Type Conversion
  • Nissan Stagea WC34 2.5 RB25DE (1996.09-2001.10) - Pull to Push Type Conversion
  • Nissan Stagea WC34 2.5 AWD RB25DE (1996.09-2001.10) - Pull to Push Type Conversion
  • Nissan Stagea WC34 2.5 Turbo AWD RB25DET (1996.09-2001.10) - Pull to Push Type Conversion
  • Nissan Stagea WC34 2.6 Twin Turbo RB26DETT (1996.09-2001.10) - Pull to Push Type Conversion
  • Clutch Disc Diameter (mm)
    230
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25.5
  • Torque (Nm)
    1200
  • Flywheel Step
    +3.8mm
  • Design
    Twin Plate
  • Stage
    Multiplate - street use only
  • Tech Bulletins

  • Clamp Load

  • Recommended for
    High horsepower street driven vehicles
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    21.95
