NISSAN - SKYLINE - STAGEA Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

No reviews
€1.399,26
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KNI20526-2E
  • Model SKYLINE and STAGEA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews
Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

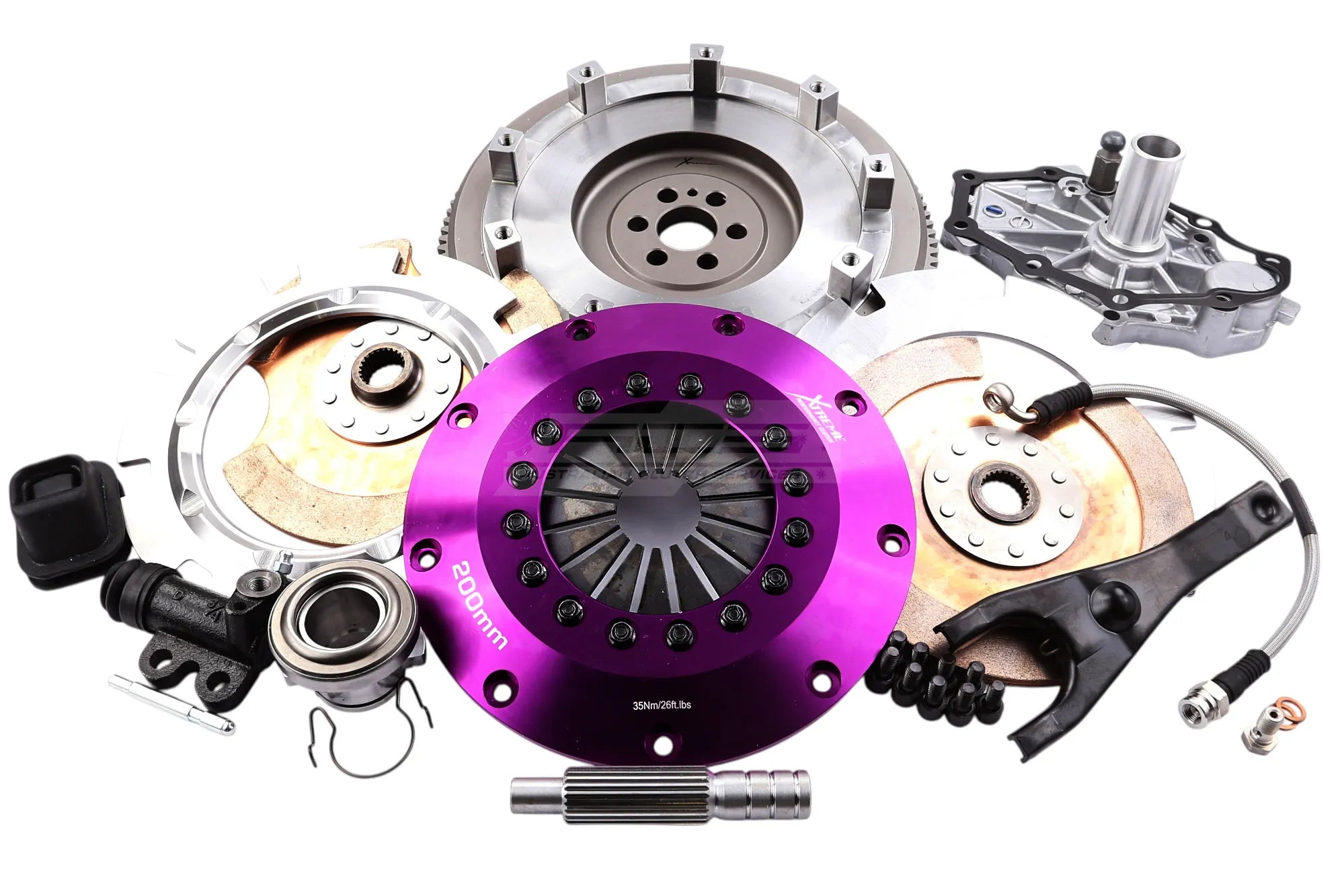

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).



Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Rigid driven discs (individual hubs)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7kg
Disc Set Static Mass 1.75kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")



Vehicle Compatibility (Pull-to-Push Conversion Required)

• Nissan Skyline R32 GT-R 2.6 Twin Turbo AWD (RB26DETT) 1989-1993
• Nissan Skyline R33 GT-R 2.6 Twin Turbo AWD (RB26DETT) 1994-1999
• Nissan Skyline R34 2.5 Turbo (RB25DET) 1998-2006
• Nissan Skyline R34 2.5 4WD (RB25DEH) 1998-2000
• Nissan Stagea WC34 2.5 (RB25DE) 1996-2001
• Nissan Stagea WC34 2.5 AWD (RB25DE) 1996-2001
• Nissan Stagea WC34 2.5 Turbo AWD (RB25DET) 1996-2001
• Nissan Stagea WC34 2.6 Twin Turbo (RB26DETT) 1996-2001

Note: Suitable for vehicles converted from factory pull-type clutch operation to push-type clutch operation.



  • Clutch Disc Diameter (mm)
    200
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25.4
  • Torque (Nm)
    1200
  • Flywheel Step
    +2.2mm
  • Design
    Twin Plate
  • Stage
    Multiplate - track use only
  • Tech Bulletins

  • Clamp Load

  • Recommended for
    Motorsport
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    15.6
