Home » NISSAN - SKYLINE - STAGEA Clutch Kit - Xtreme Performance Heavy Duty Cushioned Ceramic 1170Kg (40% inc.) 920Nm
Some images can be for illustration purposes only.

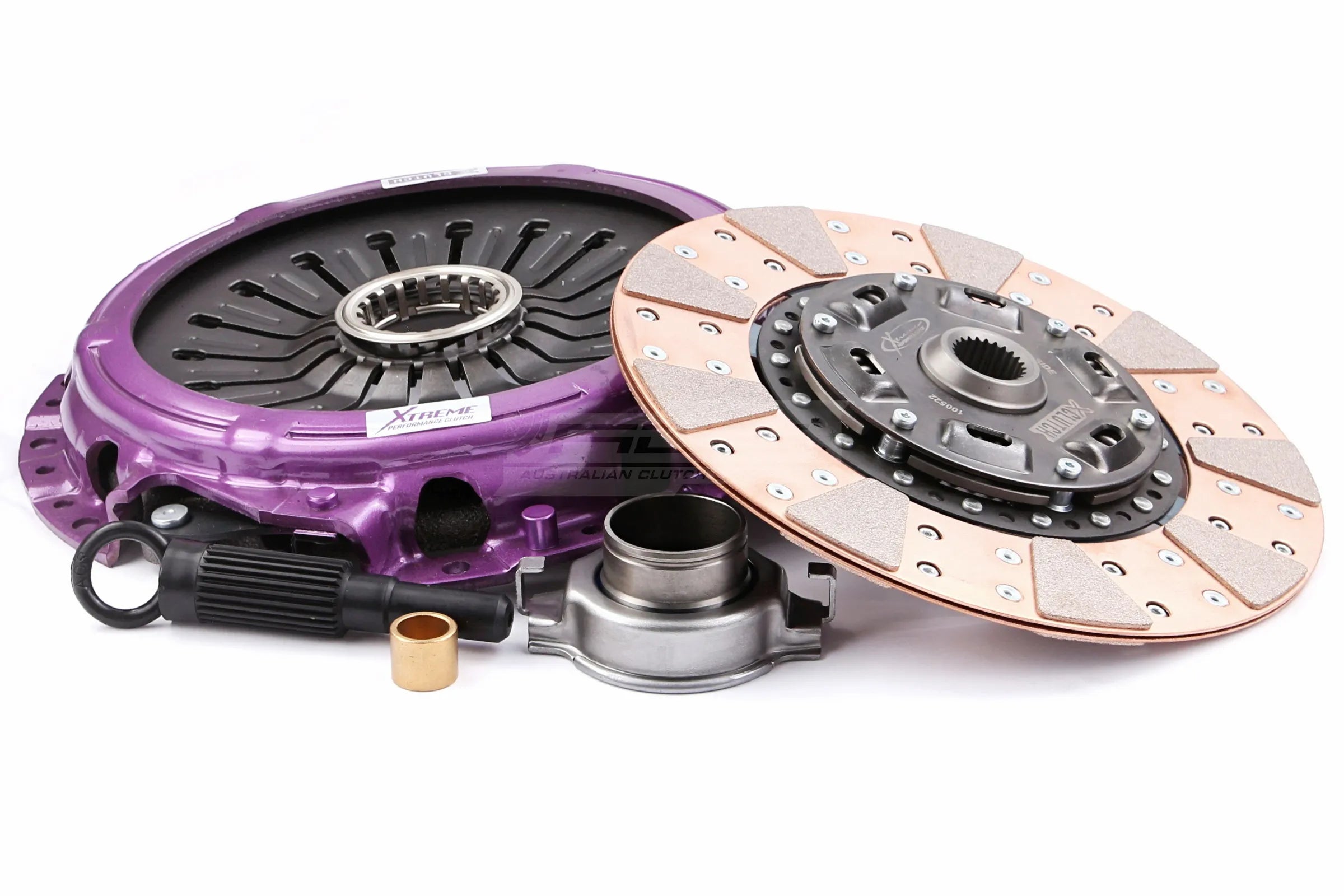

NISSAN - SKYLINE - STAGEA Clutch Kit - Xtreme Performance Heavy Duty Cushioned Ceramic 1170Kg (40% inc.) 920Nm

No reviews
€1.073,66
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KNI25003-1C
  • Model SKYLINE and STAGEA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews
Xtreme Performance - Cushioned Ceramic kit /-1C

Recommended for: Motorsport Applications



These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.



Specifications:
  • Torque capacity 920Nm
  • Clamp load 1170Kg 40% Increased over standard
  • Cushioned Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories



The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.





Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

NISSAN - SKYLINE - STAGEA Clutch Kit - Xtreme Performance Race Sprung Ceramic 1500Kg (120% Inc.) - Pull to Push Type Conversion

  • Nissan Skyline R32 2.6 Twin Turbo 4x4 RB26DETT (1989.04-1993.06)
  • Nissan Skyline R33 2.6 Twin Turbo 4x4 RB26DETT (1994.07-1999.09)
  • Nissan Skyline R34 2.5 Turbo RB25DET (1998.05-2002.08)
  • Nissan Skyline R34 2.5 Turbo RB25DET (1998.05-2006.01)
  • Nissan Skyline R34 2.5 4x4 RB25DEH (1998.06-2000.07)
  • Nissan Skyline R34 2.5 Turbo RB25DET (1998.06-2006.01)
  • Nissan Stagea WC34 2.5 RB25DE (1996.09-2001.10)
  • Nissan Stagea WC34 2.5 AWD RB25DE (1996.09-2001.10)
  • Nissan Stagea WC34 2.5 Turbo AWD RB25DET (1996.09-2001.10)
  • Nissan Stagea WC34 2.6 Twin Turbo RB26DETT (1996.09-2001.10)

Note: Pull to Push Type Conversion Required.

  • Clutch Disc Diameter (mm)
    250
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25.5
  • Torque (Nm)
    920
  • Flywheel Step
    0
  • Design
    Single Plate
  • Stage
    Stage 2
  • Tech Bulletins

  • Clamp Load
    1170Kg (40% inc.)
  • Recommended for
    Track - Stage 2
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    9.67
