NISSAN - SKYLINE Clutch Kit - Xtreme Performance Race Sprung Ceramic 1090Nm

Regular price €833,26
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KNI24007-1R
  • Model SKYLINE

Do you have questions about this product?

Ask an expert!

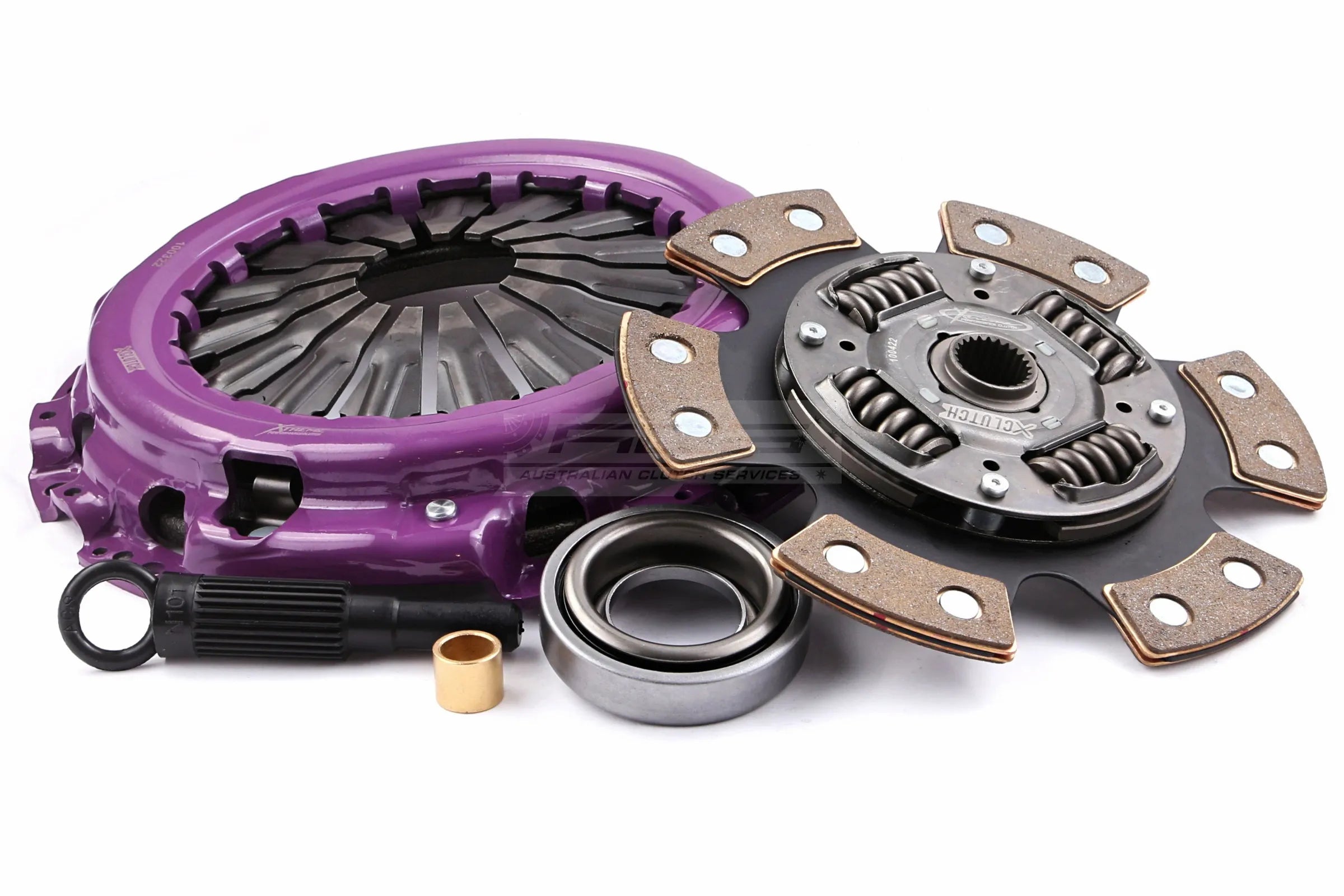

Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R

Recommended for: Motorsport Applications



-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.



Specifications:
  • Torque capacity 1090Nm
  • Clamp load Increased over standard
  • Sprung Ceramic Friction Disc
  • Extra Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories



The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.





Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.





What's in the Box?



Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Vehicle Fitment:

  • Nissan Skyline R32 GT-R 2.6 Twin Turbo 4WD (RB26DETT) – 1989.04-1993.06
  • Nissan Skyline R33 2.5 Turbo (RB25DET) – 1994.01-2000.07
  • Nissan Skyline R34 2.5 (RB25DEH) – 1998.06-2000.07

Note: Requires Pull-to-Push Clutch Conversion Kit.

  • Clutch Disc Diameter (mm)
    240
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25.4
  • Torque (Nm)
    1090
  • Flywheel Step
    0
  • Design
    Single Plate
  • Stage
    Stage 2R
  • Tech Bulletins

  • Clamp Load

  • Recommended for
    Race Vehicles - Stage 2R
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    8.88
