Nissan Patrol TB48 Sequential (RS90) AWD

No reviews
€11.900,00
Product details
  • SKU RS90/TB48

Do you have questions about this product?

Ask an expert!

We Advice To Check Shipping Rate With Our Sales Team Before Purchasing .

Description Shipping information Delivery Time Reviews

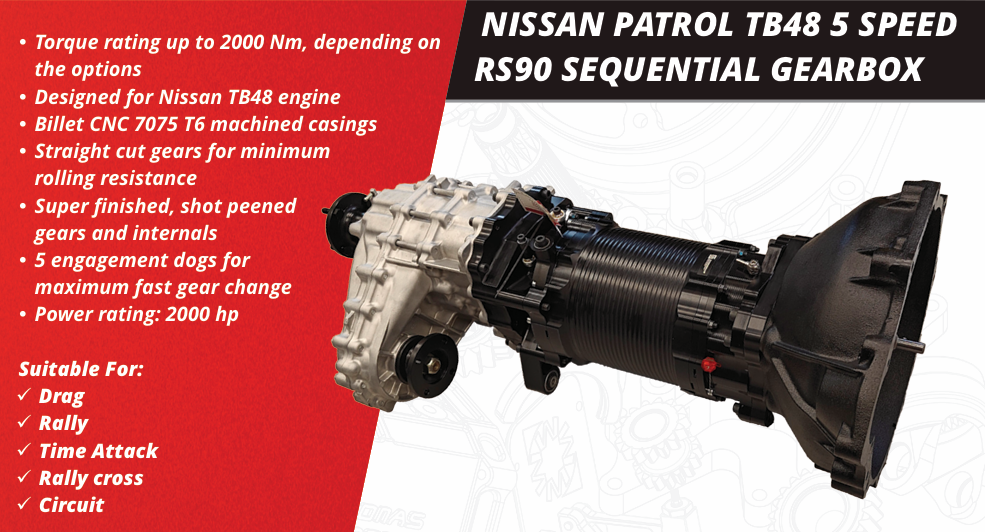

The Samsonas RS90 Nissan Patrol TB48 gearbox is designed to be the ultimate sequential gearbox and has a torque rating up to 2000 Nm, depending on options. The RS90 features an internal oil pump, 5mm extra between shafts, 2mm wider dogrings and 4mm wider gears than it's predecessor.

It can be used in rally, drag race, rally cross, hill climb, street racing and similar. We can offer many gear ratio versions with additional reduction/transfer gear ratios. This gear kit is a synergy of our many years' experience and all the latest technology.

Kit Contains:

- 5 Speed (plus reverse) full sequential gearbox
- Solid aluminium casing
- Has a transfer or reduction gear
- Torque rating up to 2000 Nm depending on options.
- Straight cut teeth, 5 dogs design
- Internal oil spray systems

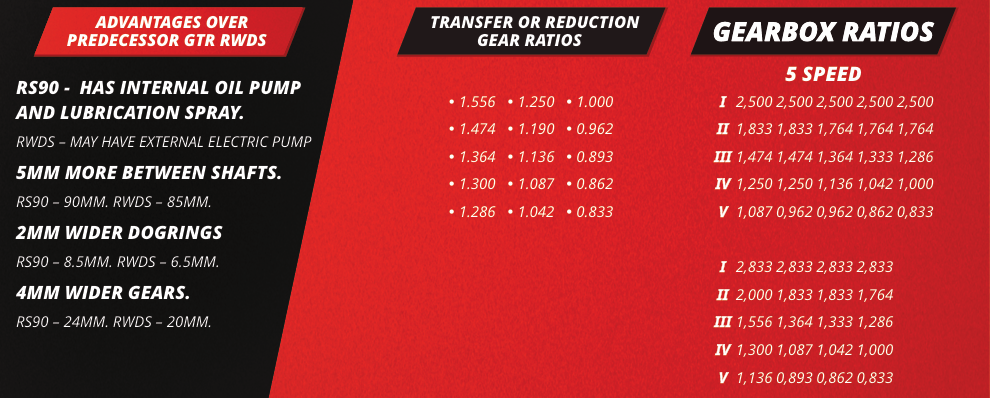

Gear Ratios

5 speed

Gear 1 Gear 2 Gear 3 Gear 4 Gear 5
2.833 2.000 1.556 1.300 1.136
2.833 1.833 1.364 1.087 0.893
2.833 1.833 1.333 1.042 0.862
2.833 1.764 1.364 1.136 0.962
2.833 1.764 1.286 1.000 0.833
2.833 1.764 1.364 1.136 0.962
2.833 1.764 1.250 1.042 0.893
2.500 1.833 1.474 1.250 1.087
2.500 1.833 1.474 1.250 0.962
2.500 1.833 1.474 1.136 0.962
2.500 1.764 1.364 1.136 0.962
2.500 1.764 1.333 1.042 0.862
2.500 1.764 1.286 1.000 0.833

Transfer / Reduction Gears

1.556
1.474
1.364
1.300
1.286
1.250
1.190
1.136
1.087
1.042
1.000
0.962
0.893
0.862
0.833

Output Shafts:

  • Audi 01E CV – 99, 6xM8, 86
    - Audi 01E CV – 108, 6xM10, 93.8
    - BMW CV E36/E46
    - BMW S50
    - BMW S65
    - BMW E39D
    - Ford Atlas
    - Honda S2000
    - Nissan GTR R32-34
    - Chevy T10 Slip Yoke
    - Chevy T56 Slip Yoke
    - Toyota V160
    - U Joint 1350-30, 16x92, 00-D106
  • Parts included with the gearbox package :
  • Input Shaft
  • Bellhousing Adapter
  • Gear Position Sensor
  • Oil Temperature Sensor
  • IMPORTANT NOTE :
  • 5 SPEED GEARBOX WITH CASING
    (without transfer case and bellhousing)
