Nissan GTR Sequential (RWDs) AWD
Regular price
€10.000,00

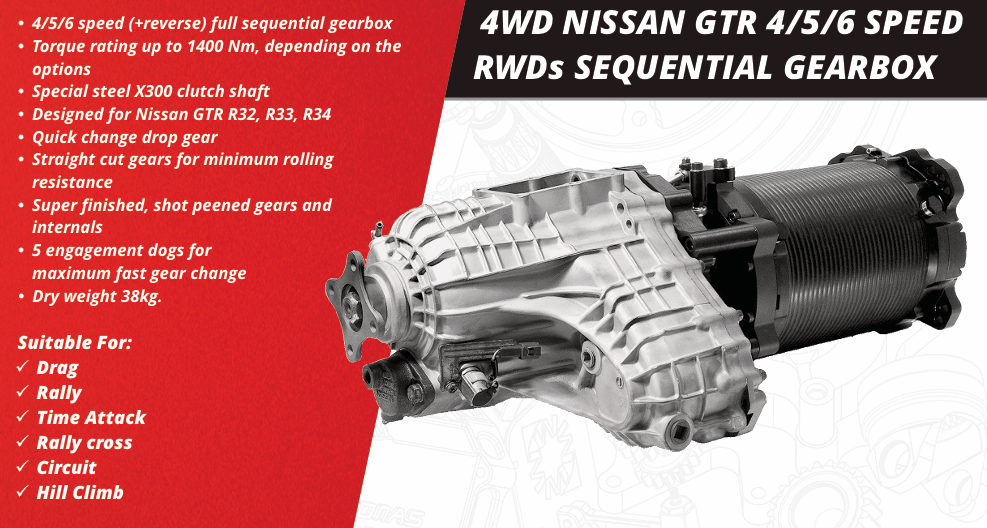

Features
4/5/6 speed (+reverse) full sequential gearbox
Special steel X300 clutch shaft
Designed for Nissan GTR R32, R33, R34
Quick change drop gear
Straight cut gears for minimum rolling resistance
Super finished, shot peened gears and internals
5 engagement dogs for maximum fast gear change
Parts included with the gearbox package:
Input Shaft
Bellhousing Adapter
Gear Position Sensor
IMPORTANT NOTE :
4 SPEED GEARBOX WITH CASING
(without transfer case)
5 SPEED GEARBOX WITH CASING
(without transfer case)
6 SPEED GEARBOX WITH CASING
(without transfer case)

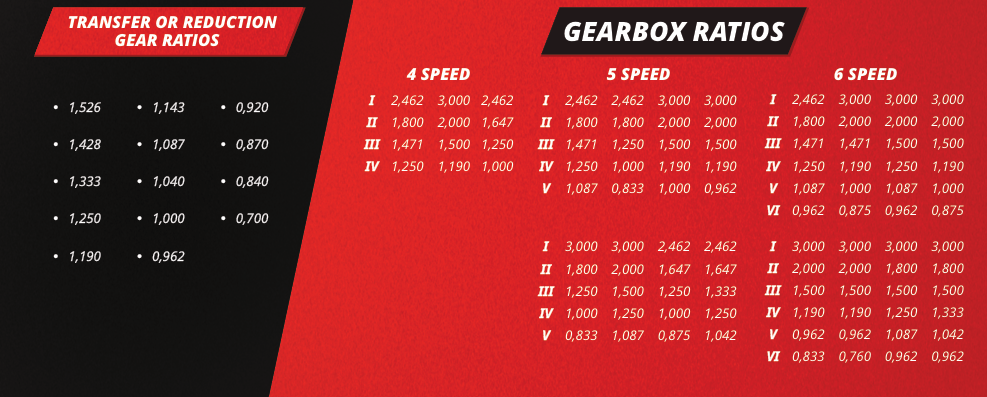

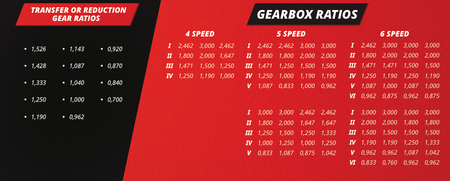

Gear Ratios
4 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 |
|---|---|---|---|
| 3.000 | 2.000 | 1.500 | 1.250 |
| 3.000 | 2.000 | 1.500 | 1.190 |
| 3.000 | 1.800 | 1.250 | 1.000 |
| 3.000 | 1.647 | 1.250 | 1.000 |
| 2.462 | 1.800 | 1.471 | 1.190 |
| 2.462 | 1.800 | 1.471 | 1.250 |
| 2.462 | 1.647 | 1.250 | 1.000 |
Gear Ratios
5 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 | Gear 5 |
|---|---|---|---|---|
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 |
| 2.462 | 1.800 | 1.250 | 1.000 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.190 | 1.000 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 |
| 3.000 | 1.800 | 1.250 | 1.000 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.250 | 1.087 |
| 2.462 | 1.647 | 1.250 | 1.000 | 0.875 |
| 2.462 | 1.647 | 1.333 | 1.250 | 1.042 |
Gear Ratios
6 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 | Gear 5 | Gear 6 |
|---|---|---|---|---|---|
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 | 0.962 |
| 3.000 | 2.000 | 1.471 | 1.190 | 1.000 | 0.875 |
| 3.000 | 2.000 | 1.500 | 1.250 | 1.087 | 0.962 |
| 3.000 | 2.000 | 1.500 | 1.190 | 1.000 | 0.875 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 | 0.760 |
| 3.000 | 1.800 | 1.500 | 1.250 | 1.087 | 0.962 |
| 3.000 | 1.800 | 1.500 | 1.333 | 1.042 | 0.962 |
Transfer / Reduction Gears
1.526
1.428
1.333
1.250
1.190
1.143
1.087
1.040
1.000
0.962
0.920
0.870
0.840
0.700
