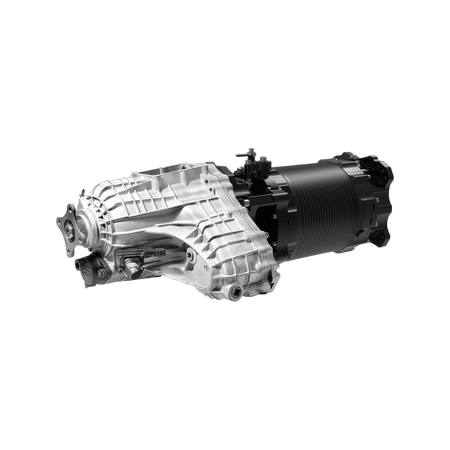

Nissan GTR Sequential (RS90) AWD

No reviews
€11.900,00
Product details
  • SKU RS90/GTR

Do you have questions about this product?

Ask an expert!

We Advice To Check Shipping Rate With Our Sales Team Before Purchasing .

Description Shipping information Delivery Time Reviews

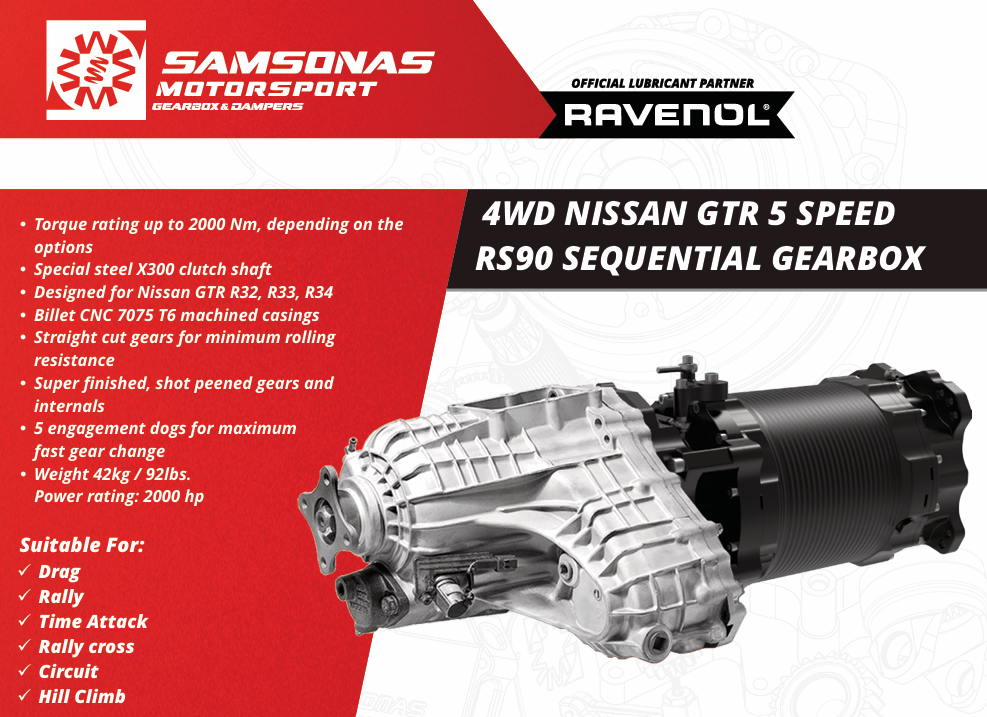

-Torque rating up to 2000 Nm, depending on the
options
-Special steel X300 clutch shaft
-Designed for Nissan GTR R32, R33, R34
-Billet CNC 7075 T6 machined casings
-Straight cut gears for minimum rolling
resistance
-Super finished, shot peened gears and
internals
-5 engagement dogs for maximum
fast gear change
-Weight 42kg / 92lbs.
-Power rating: 2000 hp


Suitable For:
-Drag
-Rally
-Time Attack
-Rally cross
-Circuit
-Hill Climbe


IMPORTANT NOTE :
-Parts included with the gearbox package:
-Input Shaft
-Bellhousing Adapter
-Gear Position Sensor
-Oil Temperature Sensor


5 SPEED GEARBOX WITH CASING
(without transfer case)

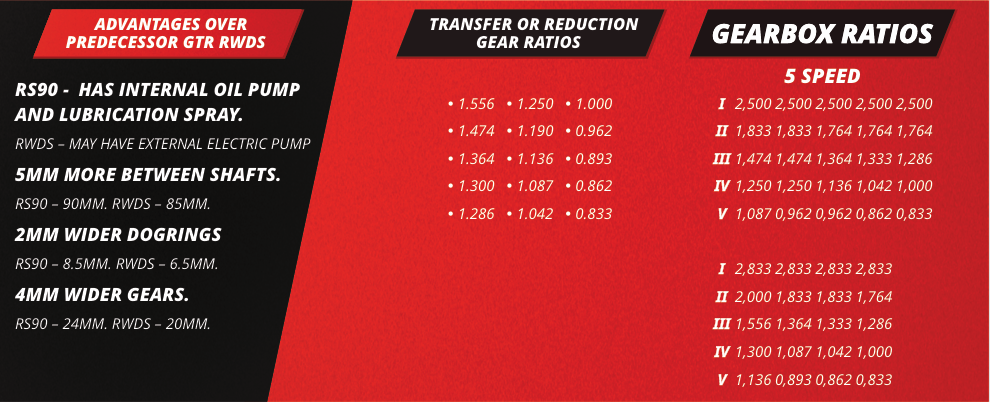

Gear Ratios

5 speed

Gear 1 Gear 2 Gear 3 Gear 4 Gear 5
2.833 2.000 1.556 1.300 1.136
2.833 1.833 1.364 1.087 0.893
2.833 1.833 1.333 1.042 0.862
2.833 1.764 1.364 1.136 0.962
2.833 1.764 1.286 1.000 0.833
2.833 1.764 1.364 1.136 0.962
2.833 1.764 1.250 1.042 0.893
2.500 1.833 1.474 1.250 1.087
2.500 1.833 1.474 1.250 0.962
2.500 1.833 1.474 1.136 0.962
2.500 1.764 1.364 1.136 0.962
2.500 1.764 1.333 1.042 0.862
2.500 1.764 1.286 1.000 0.833

Transfer / Reduction Gears

1.556
1.474
1.364
1.300
1.286
1.250
1.190
1.136
1.087
1.042
1.000
0.962
0.893
0.862
0.833
