Nissan 180SX - 200SX - Silvia Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm

No reviews
€1.702,48
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KNI23531-2B
  • Model 180SX, 200SX, and SILVIA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews

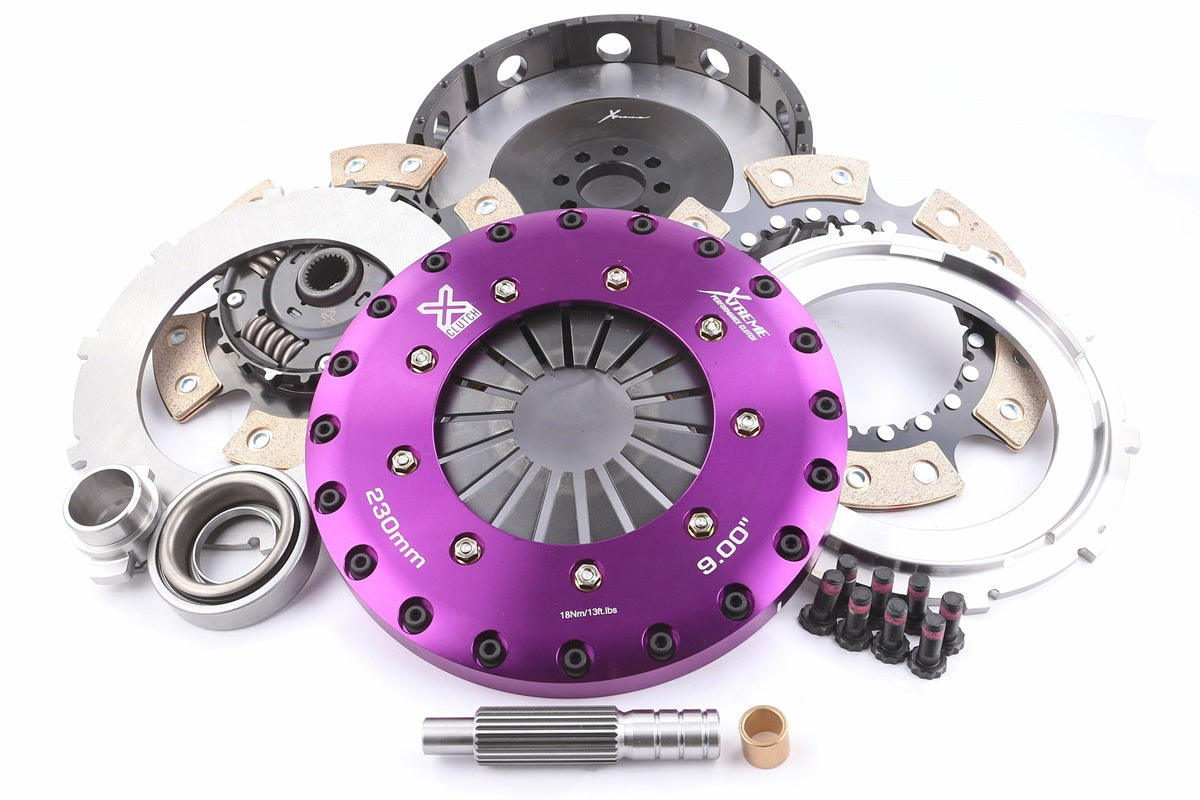

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.



The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.



Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1000Nm 1000Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")



Nissan 180SX

2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Apr 1991 – Mar 1994
2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 153 kW (208 hp), Jan 1992 – Jan 1997

Nissan 200SX

2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Oct 1993 – Dec 1999
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Apr 1994 – Nov 2000

Nissan Silvia

2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 151 kW (205 hp), Jan 1991 – Sep 1993
2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 164 kW (223 hp), Jan 1991 – Sep 1993
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Oct 1993 – Dec 1999
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 162 kW (220 hp), Apr 1994 – Sep 1999

Clutch Disc Diameter (mm)
230
Clutch Disc Spline Count
24
Clutch Disc Spline Diameter (mm)
25.5
Torque (Nm)
1000
Flywheel Step
+3.8mm
Design
Twin Plate
Stage
Multiplate - track use only
Tech Bulletins
TSB-166
Clamp Load
1300Kg
Recommended for
Motorsport
Ring Gear Tooth count
Additional infotmation
Weight [KG]:
21.25
