Nissan 180SX - 200SX - Silvia Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

No reviews
€1.338,63
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KNI20521-2B
  • Model 180SX, 200SX, and SILVIA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews

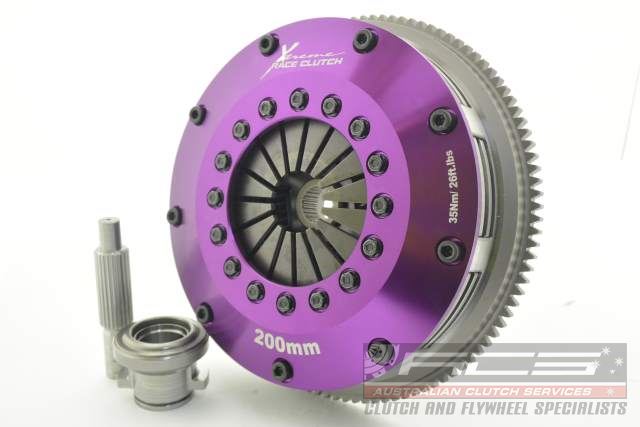

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

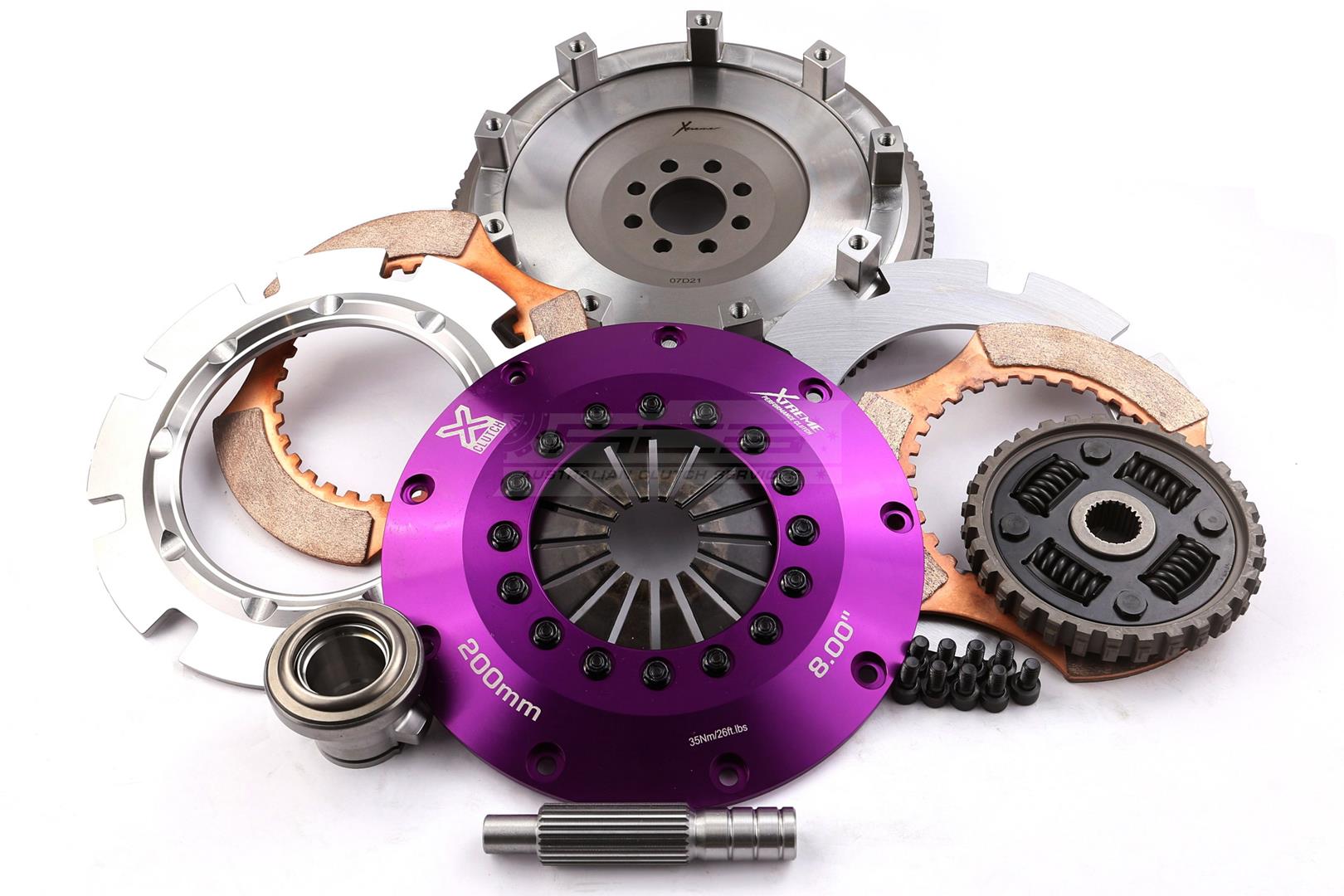

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).



Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")



Nissan 180SX

2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Apr 1991 – Mar 1994
2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 153 kW (208 hp), Jan 1992 – Jan 1997

Nissan 200SX

2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Oct 1993 – Dec 1999
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Apr 1994 – Nov 2000

Nissan Silvia

2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 151 kW (205 hp), Jan 1991 – Sep 1993
2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 164 kW (223 hp), Jan 1991 – Sep 1993
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Oct 1993 – Dec 1999
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 162 kW (220 hp), Apr 1994 – Sep 1999

Clutch Disc Diameter (mm)
200
Clutch Disc Spline Count
24
Clutch Disc Spline Diameter (mm)
25.5
Torque (Nm)
1200
Flywheel Step
+2.2mm
Design
Twin Plate
Stage
Multiplate - track use only
Tech Bulletins
TSB-200-2-X-1
Clamp Load
1100Kg
Recommended for
Motorsport
Ring Gear Tooth count
Additional infotmation
Weight [KG]:
13.6
