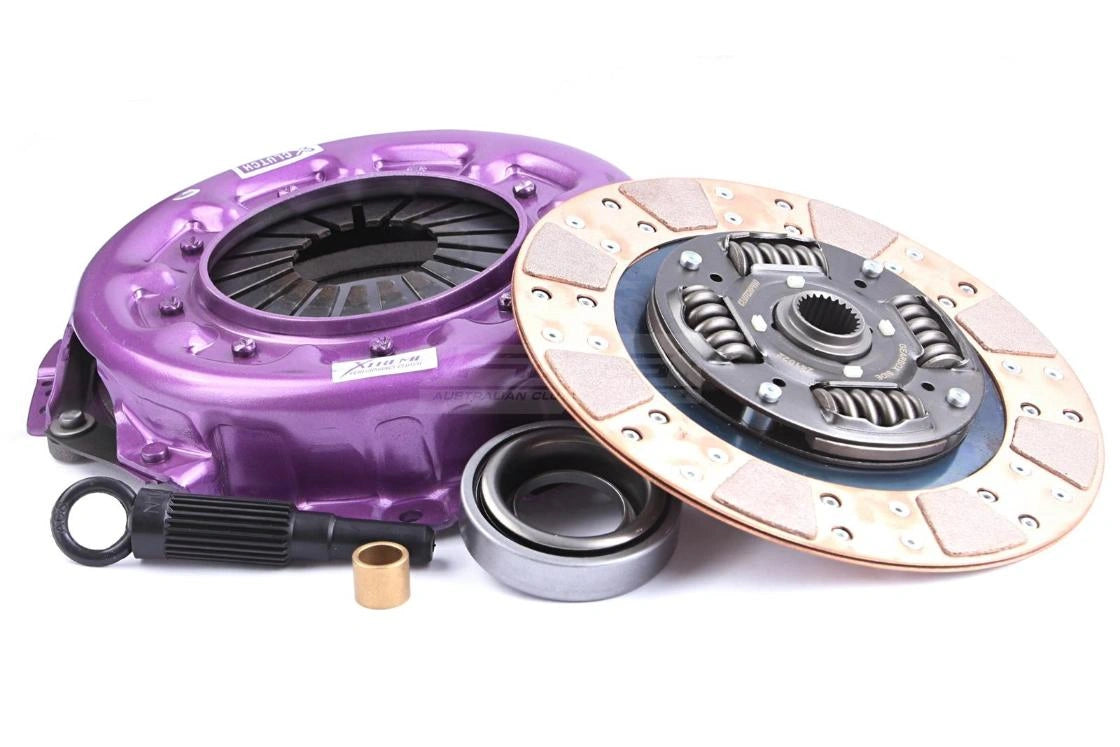

Nissan 180SX - 200SX - Silvia Stage 2 Clutch Kit - Xtreme Performance Heavy Duty Cushioned Ceramic 800Kg (35% inc.) 570Nm
- SKU KNI24003-1C
- Model 180SX, 200SX, and SILVIA
Do you have questions about this product?
Recommended for: Motorsport Applications
These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.
- Torque capacity 570Nm
- Clamp load 800Kg 35% Increased over standard
- Cushioned Ceramic Friction Disc
- Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Nissan 180SX
2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Apr 1991 – Mar 1994
2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 153 kW (208 hp), Jan 1992 – Jan 1997
Nissan 200SX
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Oct 1993 – Dec 1999
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Apr 1994 – Nov 2000
Nissan Silvia
2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 151 kW (205 hp), Jan 1991 – Sep 1993
2.0 Turbo (S13) – SR20DET, 2.0L Petrol, 164 kW (223 hp), Jan 1991 – Sep 1993
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 147 kW (200 hp), Oct 1993 – Dec 1999
2.0 Turbo (S14) – SR20DET, 2.0L Petrol, 162 kW (220 hp), Apr 1994 – Sep 1999
-
Clutch Disc Diameter (mm)240
-
Clutch Disc Spline Count24
-
Clutch Disc Spline Diameter (mm)25.5
-
Torque (Nm)570
-
Flywheel Step0
-
DesignSingle Plate
-
StageStage 2
-
Tech Bulletins
-
Clamp Load800Kg (35% inc.)
-
Recommended forTrack - Stage 2
-
Ring Gear Tooth count
-
Additional infotmation
-
Weight [KG]:9.63
