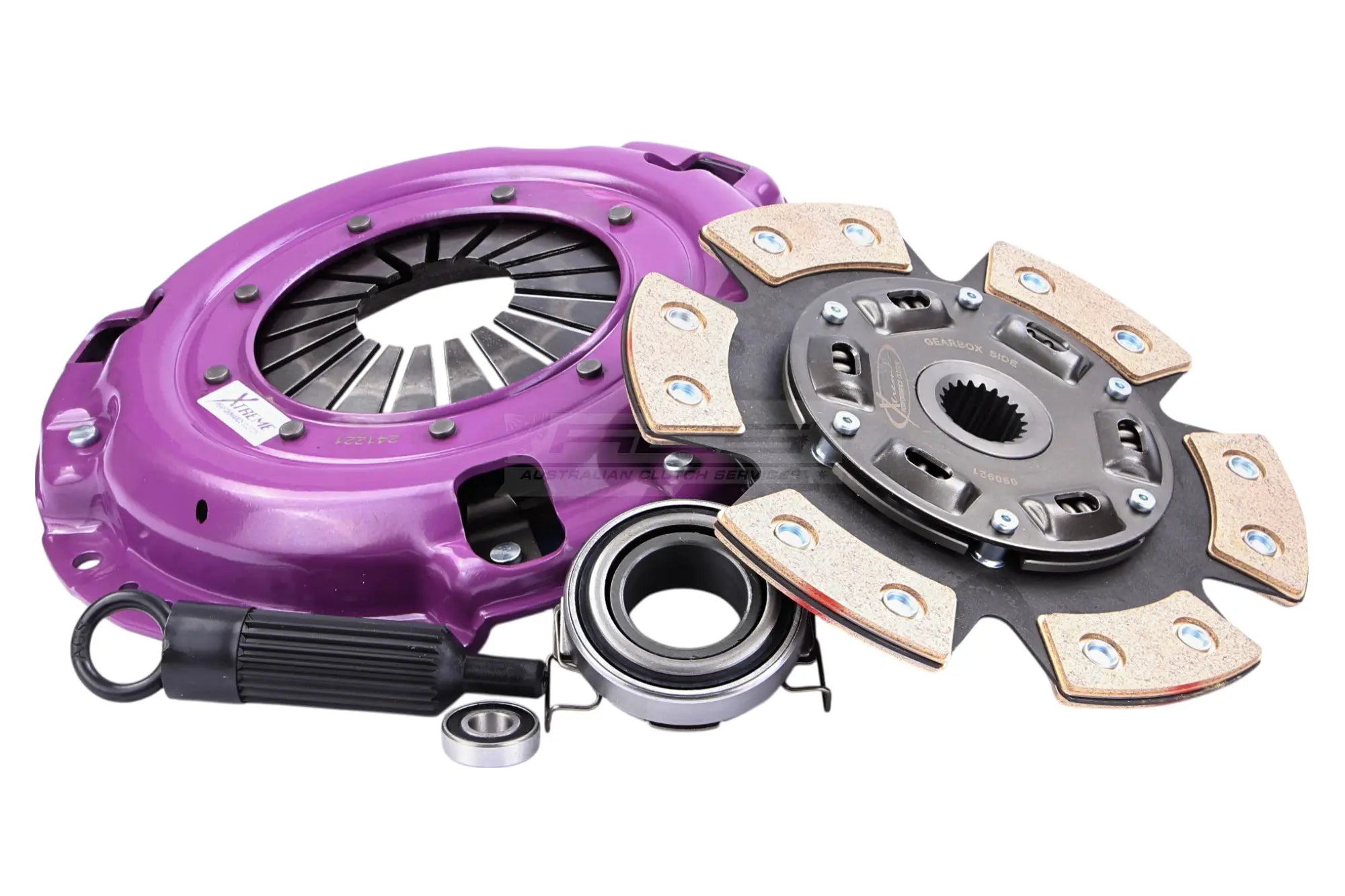

Lexus IS200 - Altezza Stage 2 Clutch Kit - Xtreme Performance Heavy Duty Sprung Ceramic 460Nm 700kg (45% inc.)

No reviews
€510,00
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KLX23001-1B
  • Model IS200 and ALTEZZA

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews
Xtreme Performance - sprung ceramic kit /-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 460Nm
  • Clamp load 700kg 45% Increased over standard
  • Sprung Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories



The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Lexus IS200

200 (GXE10) – 1G-FE, 2.0L Petrol, 114 kW (155 hp), Apr 1999 – Jul 2005

Toyota Altezza

2.0 (GXE10) – 1G-FE, 2.0L Petrol, 114 kW (155 hp), Jan 1999 – Jun 2001
2.0 VVT-i (GXE10) – 1G-FE, 2.0L Petrol, 118 kW (160 hp), Jan 1999 – May 2005

  • Clutch Disc Diameter (mm)
    225
  • Clutch Disc Spline Count
    21
  • Clutch Disc Spline Diameter (mm)
    29.8
  • Torque (Nm)
    460
  • Flywheel Step
    +0.5mm
  • Design
    Single Plate
  • Stage
    Stage 2
  • Tech Bulletins

  • Clamp Load
    700Kg (45% inc.)
  • Recommended for
    Track - Stage 2
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    6.39
