Holden - Calais - Commodore - Nissan - skyline Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
- SKU KNI20520-2B
- Model CALAIS, COMMODORE, and SKYLINE
Do you have questions about this product?
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

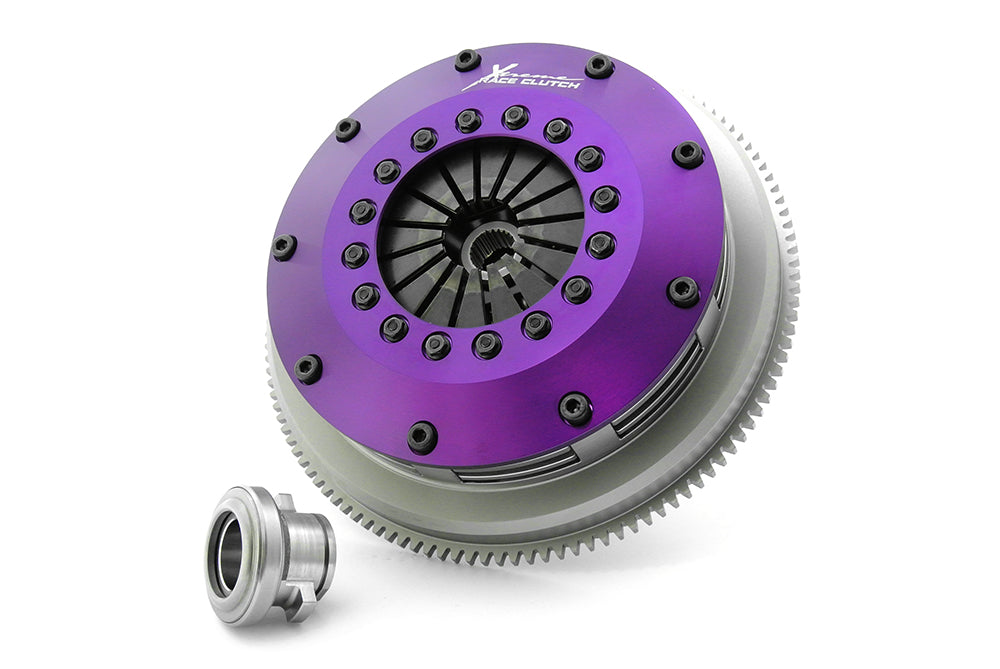

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design


| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Vehicle Compatibility:
- Holden Calais VL 3.0 EFI / 3.0 EFI Turbo (RB30E / RB30ET) 1986-1988
- Holden Commodore VL 3.0 EFI / 3.0 EFI Turbo (RB30E / RB30ET) 1986-1988
- Nissan Skyline R31 3.0 (RB30S / RB30E) 1985-1990
- Nissan Skyline R32 2.0 Turbo / 2.0 Turbo 4WD (RB20DET) 1989-1993
- Nissan Skyline R32 2.5 (RB25DE) 1989-1993
- Nissan Skyline R32 GT-R 2.6 Twin Turbo AWD (RB26DETT) 1989-1993
- Nissan Skyline R33 2.5 / 2.5 4WD (RB25DE) 1993-1998
- Nissan Skyline R33 2.5 Turbo (RB25DET) 1994-2000
- Nissan Skyline R34 2.5 4WD (RB25DEH) 1998-2000
Or for a shorter SEO-friendly format:
Suitable For: Holden VL Calais & Commodore RB30E/RB30ET, Nissan Skyline R31 RB30, R32 RB20DET/RB25DE/RB26DETT, R33 RB25DE/RB25DET, R34 RB25DEH.
-
Clutch Disc Diameter (mm)200
-
Clutch Disc Spline Count24
-
Clutch Disc Spline Diameter (mm)25.4
-
Torque (Nm)1200
-
Flywheel Step+2.2mm
-
DesignTwin Plate
-
StageMultiplate - track use only
-
Tech Bulletins
-
Clamp Load1100Kg
-
Recommended forMotorsport
-
Ring Gear Tooth count
-
Additional infotmation
-
Weight [KG]:16.8
