Home » HOLDEN - CALAIS - COMMODORE - NISSAN - PATROL - SKYLINE Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm
Some images can be for illustration purposes only.

HOLDEN - CALAIS - COMMODORE - NISSAN - PATROL - SKYLINE Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm

No reviews
€1.559,62
Important Note: Out-of-stock items may have variable delivery times. If European stock is available delivery times are typically 7–10 days. If your order is urgent, please contact our sales team before purchasing.
Product details
  • SKU KNI23530-2B
  • Model CALAIS, COMMODORE, PATROL, and SKYLINE

Do you have questions about this product?

Ask an expert!

Description Shipping information Delivery Time Reviews

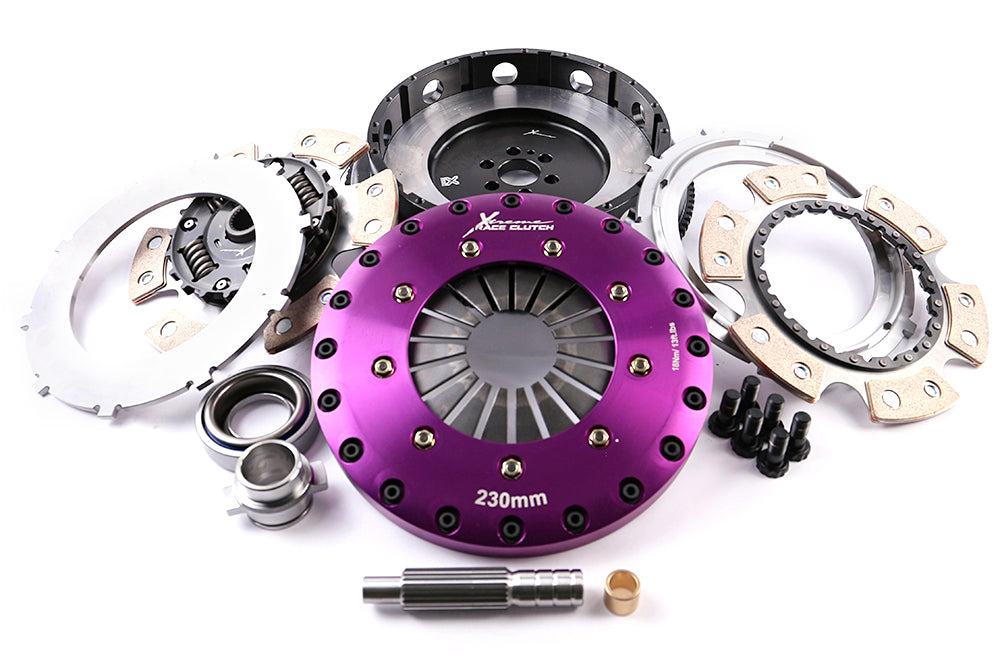

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.



The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.



Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1000Nm 1000Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")



Vehicle Fitment:

  • Holden Calais VL 3.0 EFI Turbo (RB30ET) – 1986.01-1988.08
  • Holden Calais VL 3.0 EFI (RB30E) – 1986.03-1988.09
  • Holden Commodore VL 3.0 EFI Turbo (RB30ET) – 1986.01-1988.08
  • Holden Commodore VL 3.0 EFI (RB30E) – 1986.03-1988.09
  • Nissan Patrol K260 3.0 (RB30S) – 1989.03-1993.09
  • Nissan Patrol Y60 3.0 4WD (RB30S) – 1990.01-1997.12
  • Nissan Skyline R31 3.0 (RB30S / RB30E) – 1985.08-1990.12
  • Nissan Skyline R32 2.0 Turbo (RB20DET) – 1989.03-1993.06
  • Nissan Skyline R32 2.0 Turbo 4WD (RB20DET) – 1989.03-1993.06
  • Nissan Skyline R32 2.5 (RB25DE) – 1989.03-1993.06
  • Nissan Skyline R32 GT-R 2.6 Twin Turbo 4WD (RB26DETT) – 1989.04-1993.06
  • Nissan Skyline R33 2.5 (RB25DE) – 1993.07-1998.05
  • Nissan Skyline R33 2.5 4WD (RB25DE) – 1993.07-1998.05
  • Nissan Skyline R33 2.5 Turbo (RB25DET) – 1994.01-2000.07
  • Nissan Skyline R34 2.5 (RB25DEH) – 1998.06-2000.07
  • Nissan Skyline R34 2.5 4WD (RB25DEH) – 1998.06-2000.07
  • Clutch Disc Diameter (mm)
    230
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25.4
  • Torque (Nm)
    1830
  • Flywheel Step
    +3.8mm
  • Design
    Twin Plate
  • Stage
    Multiplate - track use only
  • Tech Bulletins

  • Clamp Load

  • Recommended for
    Motorsport
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    17.59
