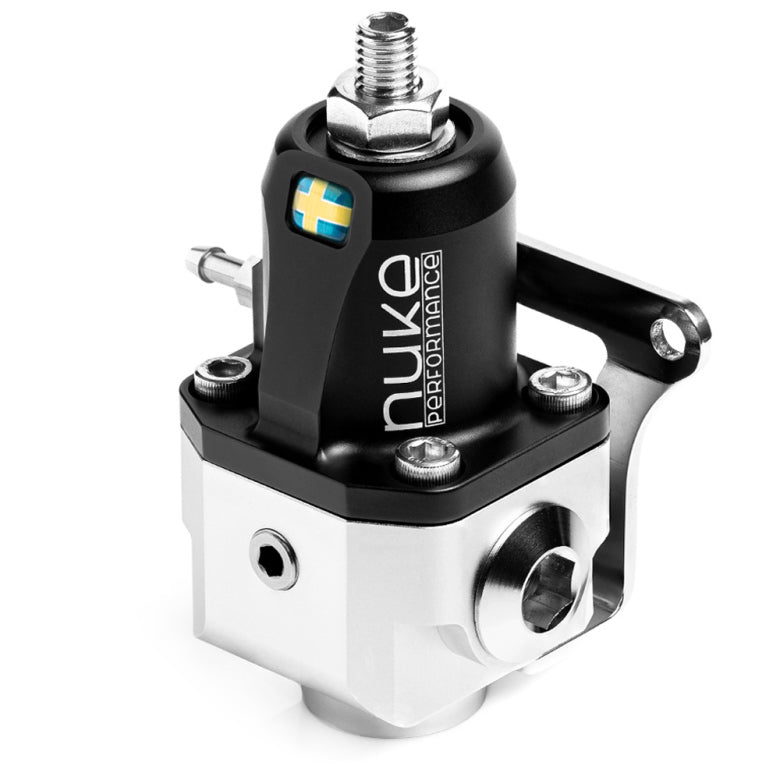

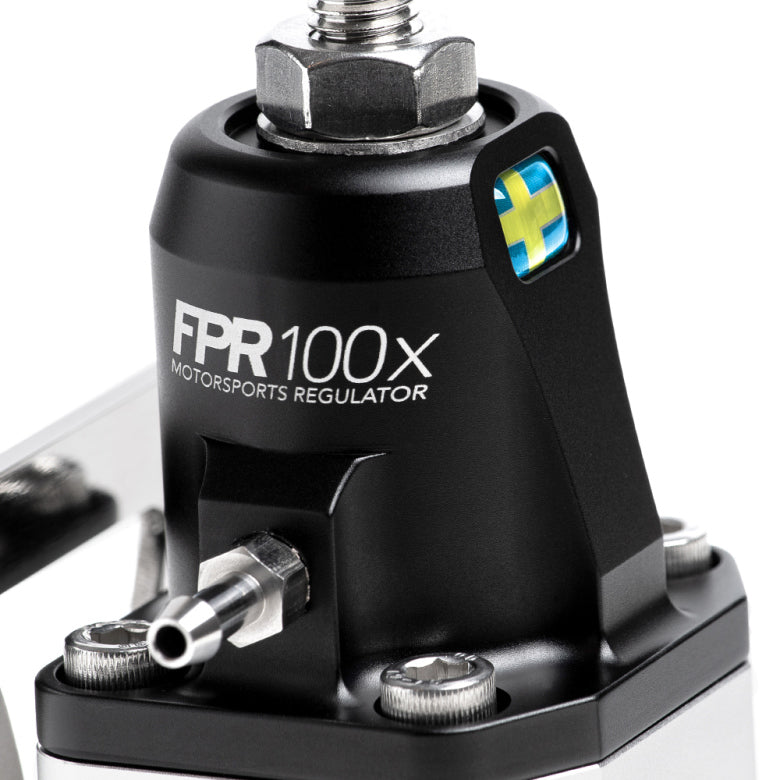

Fuel Pressure Regulator FPR100x AN-10
Nuke Performance FPR100x Fuel Pressure Regulator: Redefining power of motorsports fuel management.
A real beast in a lightweight design. This is an ethanol-proof AN-10 fuel pressure regulator with a slim design and easy-to-mount stainless steel brackets. Every unit is thoroughly tested before delivery, with unmatched functionality and the same high quality as always.
Extreme motorsports regulator
Approved for 2000hp+
Safe for petrol, methanol, and ethanol
Every unit is performance tested
Adjustable up to 120 PSI (8 bar)
1:1 boost reference
Stainless steel mounting bracket
AN-10 ORB inlets/outlet
The most reliable and highest performing 1:1 boost reference solution to bring together simple or complex fuel systems for all types of tuning or motorsports engine setup. Redesigned with precision functionality in focus. Its lightweight design has the trusted hallmark of the entire Nuke Performance range of motorsports parts, with an integrated stainless steel bracket for safe and easy mounting for all applications and installations.
Fuel Pressure Regulator FPR100x AN-10 Specifications
For more information about specifications, contact us directly.
| Pressure range | 2 - 8 BAR (30 - 120 PSI) |
| Boost reference | 1:1 |
| Horsepower rating | 700 - 2000+ HP |
| Free fuel flow rating | 1000 LPH |
| Fuel compatibility | Gasoline, Petrol, Methanol, Ethanol |
| Inlet thread | Dual AN-10 ORB |
| Outlet thread | Single AN-10 ORB |
| Gauge port | 1/8 NPT |
| Vacuum reference port | 1/16 NPT |
| Diaphragm | 46mm Fibre-enhanced nitrile membrane |
| Height | 115-127mm (4.52-5.00")* |
| Width | 57mm (2.24”) |
| Depth | 49mm (1.93”) |
| Weight | 481g (16.97oz) |
| Ball-Bearing adjustment | ≈0.14 BAR (≈2 PSI) / turn |
* depending on set pressure
Nuke Performance Fuel Pressure Regulator FPR100x AN-10 Includes:
1 x 10AN ORB plug for the additional inlet
1 x 1/8 NPT plug for gauge/sensor outlet
1 x 1/16 NPT Barb fitting for 5mm vacuum hose
1 x Stainless steel mounting bracket
2 x Stainless steel bolts for the mounting bracket
