EWP80 Kit - Remote Electric Water Pump (12V)
Regular price
€176,72

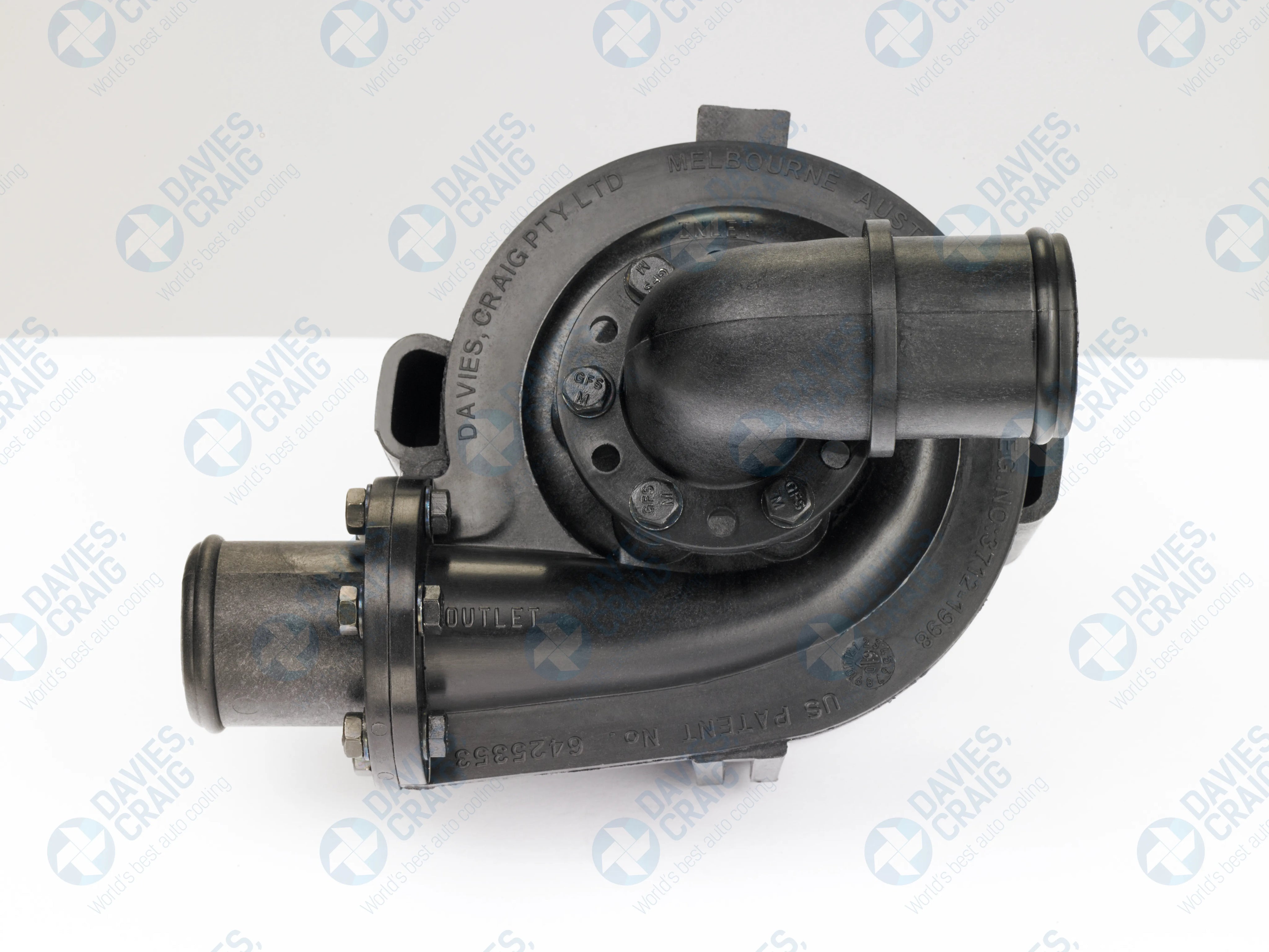

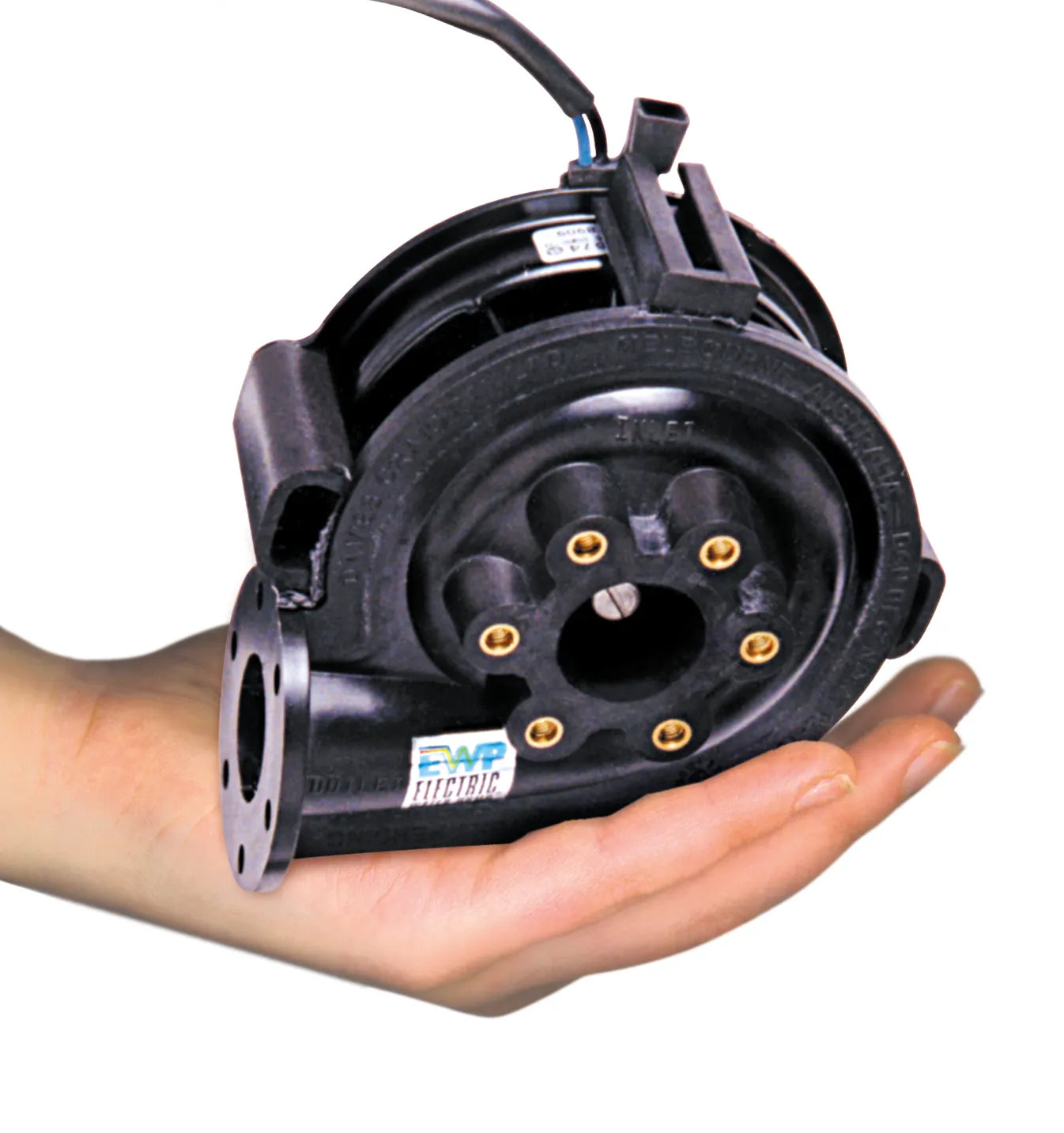

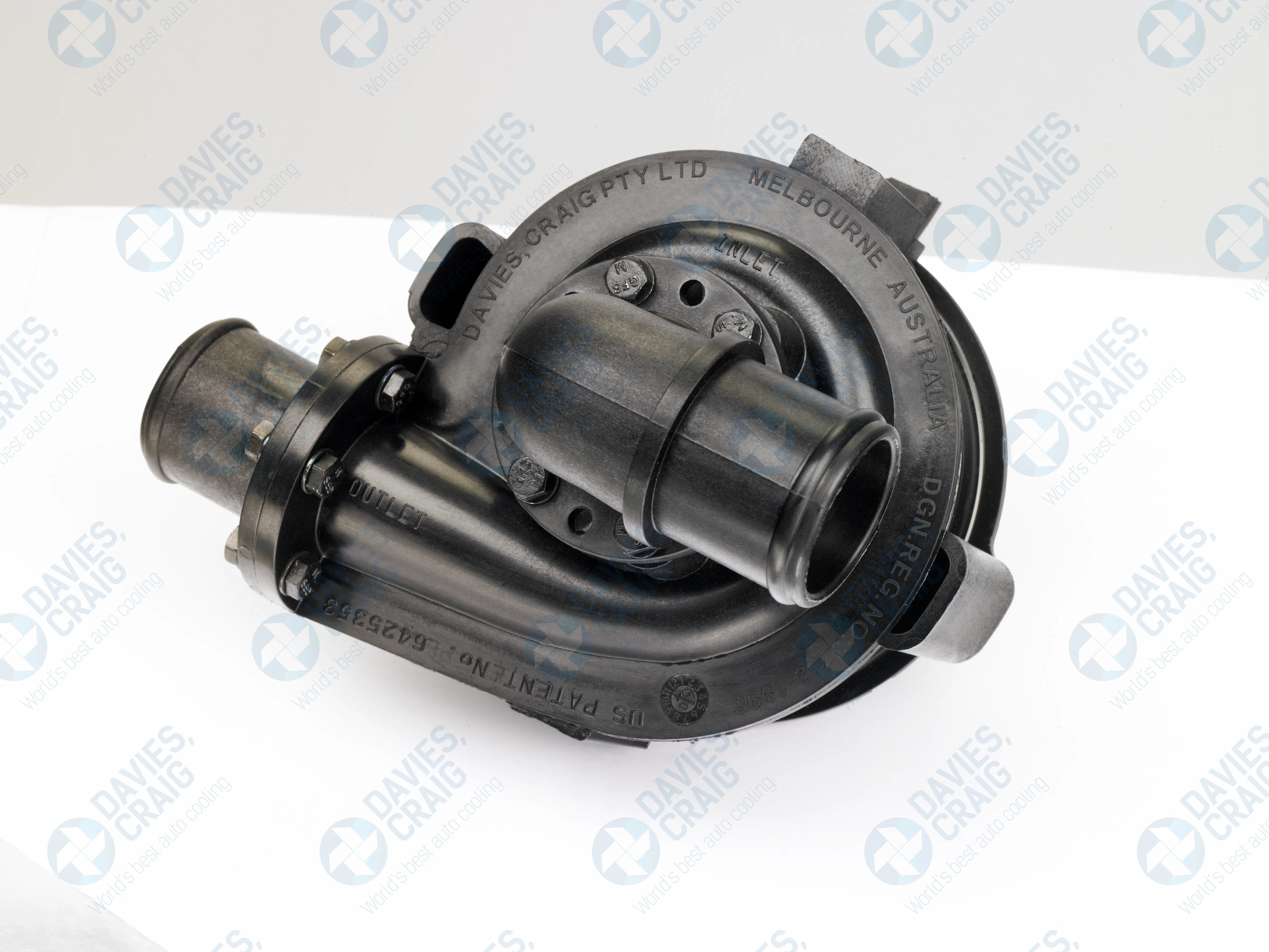

EWP®80 Kit Remote Electric Water Pump (12V)
** SUPERSEDED / DISCONTINUED **
Part #8005
This part has been discontinued. Please see the replacement options below:
| Discontinued Part # | Direct Replacement | Alternative Replacement | |
| 8105 (Pump Only) | #8106 | #8109 | |
| 8005 (Kit) | #8006 | #8009 | |
| 8907 (Controller Combo) | #8908 | #8919 |
The EWP®80 is available for purchase in following options:
- Pump Only (Part #8105)
- Kit (Part #8005)
- Combo with Controller (Part #8907)
The revolutionary, Australian-designed EWP®80 is made from anti-corrosive, lightweight, glass-filled nylon. It removes parasitic power losses of a belt-driven mechanical water pump, providing up to 10kW (13hp) of extra power and increased torque. Used extensively in Intercooler applications.

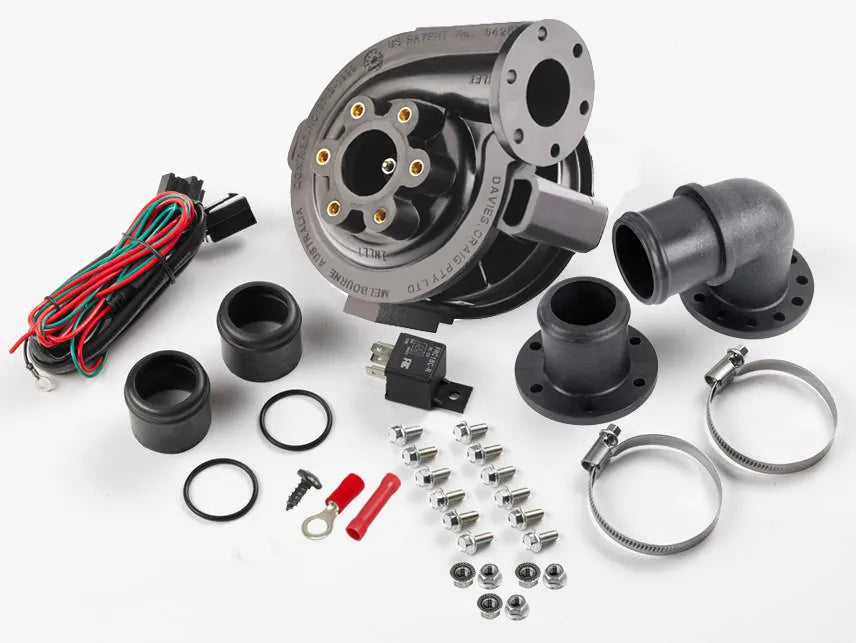

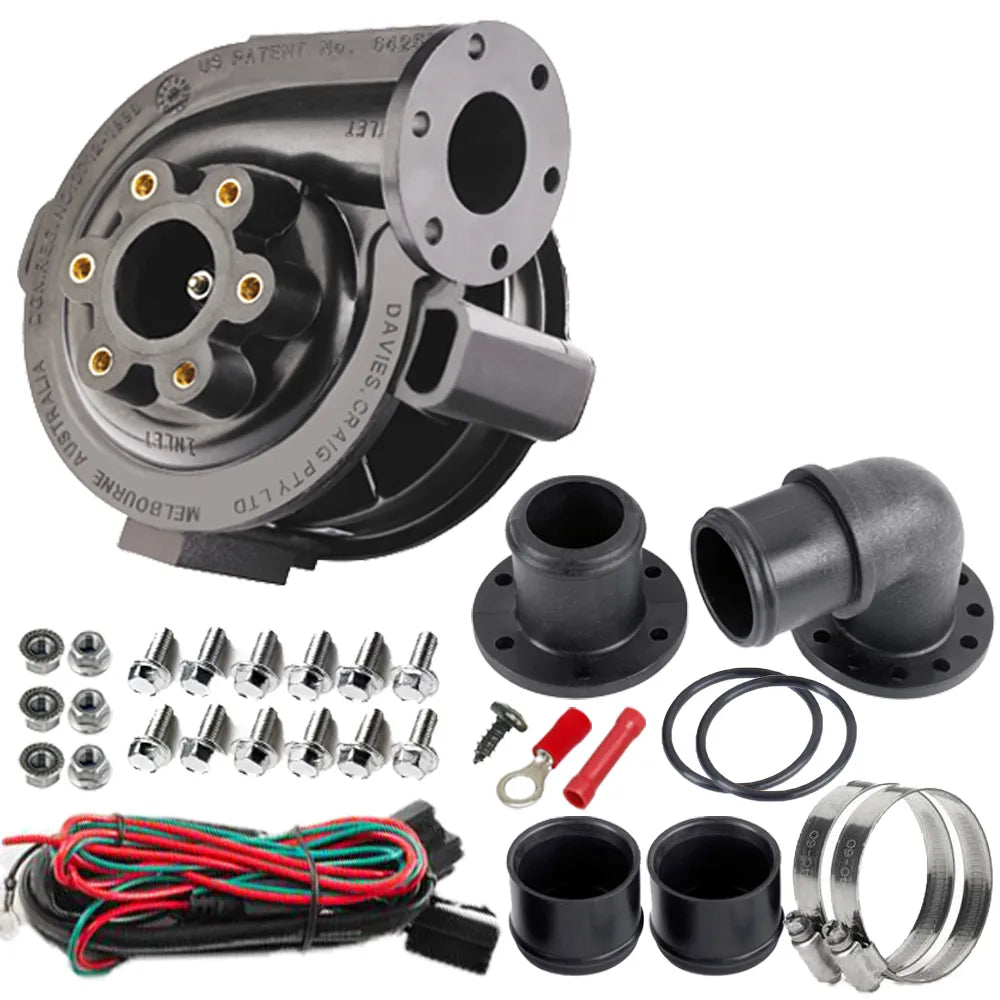

Kit contents
| Part description | Units |
|---|---|
| EWP®80 - Nylon 12V Assembly | 1 |
| Nylon Flange Adapter: 35mm 90° Elbow | 1 |
| Nylon Flange Adapter: 35mm Straight | 1 |
| EWP ADAPTOR O-RING | 2 |
| Adaptor - Rubber Sleeve - 3mm (Increases to 38mm) | 2 |
| HOSE CLAMP | 2 |
| EWP® BASIC PUMP LOOM | 1 |
| RED - Wire Joiner / 6mm Ring Terminal | 1 ea |
| RELAY - 12V 40 Amp 5 Pin W/- Resistor Protection | 1 |
| SCREW - SELF TAP 8X3/8 BZ | 1 |
| 5x12 Flanged Hex Set Screw Zinc Silver | 6 |
| 5x16 Flanged Hex Set Screw Zinc Silver | 6 |
| M5 FLANGE NUT ZINC SILVER | 6 |
Technical specifications
| Operating voltage | 3V DC to 15V DC |
| Maximum current | 7.5A @ 13V |
| Flow rate (max) | 90 L/min (23.8 US gal/min) @ 13V DC |
| Operating temp. | -40° to 120°C (-40° to 248°F) |
| Pump design | Clockwise centrifugal with volute chamber |
| Pump weight | 900 grams (2.0 lb) |
| Pump material | Nylon 66, 30% glass-filled |
| Burst pressure | 350 kPa (50 psi) |
| Seal | Ceramic face seal |
| Fits hose size | 32mm to 51mm (1⅜” to 2”) |
EWP & controller installation demonstration
EWP® installation options
Installing an EWP® as an AUXILIARY PUMP
- Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose.
- Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation when the thermostat is closed. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.
EWP® installation – disabling Mechanical water pump
- Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose and remove the manufacturer’s thermostat.
- You will need to bypass the water pump pulley by installing an appropriate length belt (not supplied). This method makes for an easy installation.
- If running the pump continuously remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.
In both these cases, the EWP® will pump past the impeller of the mechanical water pump.
Disengaged mechanical water pump (recommended)
- Remove the mechanical water pump and remove the thermostat.
- Then remove the impeller from the mechanical pump shaft. Retain the mechanical water pump using the pump pulley as an idler to avoid re-routing the drive belt.
- Block any bypass passages and re-install the disengaged water pump ensuring that all gasket surfaces are clean and the new gaskets are properly fitted to prevent leaks.
- Install the EWPÒ into the bottom radiator hose.
Removed mechanical water pump (Ideal)
- Remove the mechanical water pump and thermostat from the engine.
- Install a Davies Craig EWP® Header Adaptor or blanking plate (not supplied). Ensuring the gasket surfaces are clean and the appropriate gasket or sealant is used to prevent leaks.
- Install the EWP® into the bottom radiator hose. This method will require you to modify or replace the standard radiator hose.
- Install an appropriate length belt (not supplied) to drive the accessories.
In most cases EWP® will be adequately supported by the radiator hose. Where mounting is required, the EWP® must be soft mounted to protect against vibration. For the EWP®115, EWP®140 and EWP®150 Part #8700 or #8710 Mounting bracket is recommended.
