EWP150 Black Kit - Remote Electric Water Pump (12V)
The EWP®150 Black Alloy 12V is available for purchase in following options:
- Pump Only (Part #8165)
- Kit (Part #8065)
- Combo with Controller (Part #8975)
Celebrating 50 years, Davies Craig Pty Ltd has launched a ‘BLACK LABEL’ EWP®150 Remote-Mounted Electric Water Pump! Supplied in glorious matt black powder-coat, it offers modern performance, compactness, and style.
Muscle up your engine cooling system with the EWP®150. Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat & intercooler applications. This rugged alloy hi-flow pump increases power and improves coolant temperature control.

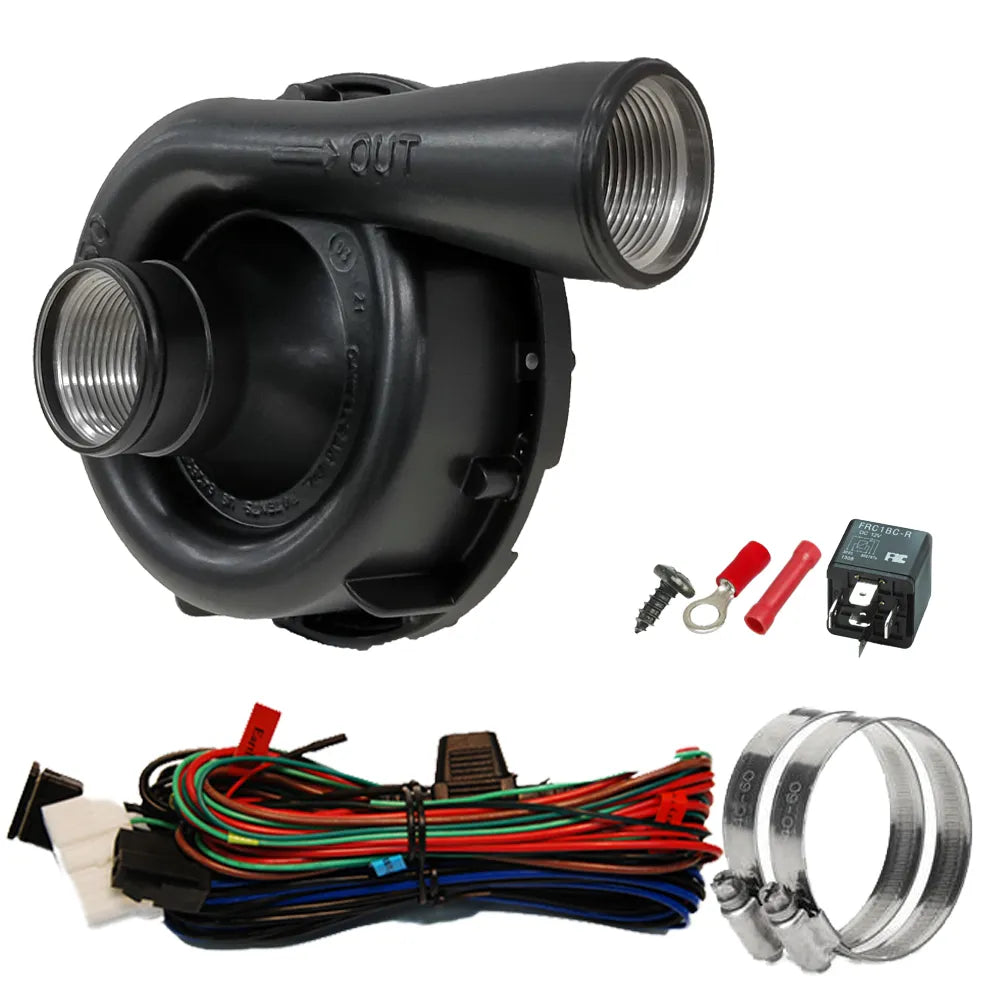

| Part description | Units |
|---|---|
| EWP®150 Black Alloy | 1 |
| EWP Basic Wiring Harness (with 10amp Fuse) | 1 |
| Hose Clamps | 2 |
| RED – Wire Joiner | 1 |
| RED – 6mm Ring Terminal | 1 |
| RELAY – 12V 40 Amp 5 Pin w/ Resistor Protection | 1 |
| SCREW – SELF TAP 8X3/8 BZ | 1 |
| Operating voltage | 3V DC to 15V DC |
| Maximum current | 10A @ 13V |
| Flow rate (max) | 162 L/min (42.8 US gal/min) @ 13V DC |
| Operating temp. | -40° to 120°C (-40° to 248°F) |
| Pump design | Clockwise centrifugal with volute chamber |
| Pump weight | 1,170 grams (2.6 lb) |
| Pump material | Aluminium (Powder Coated) |
| Internal Fittings | Inlet & Outlet: -16AN ORB |
| Fits hose sizes | 35mm to 51mm (1.38” to 2”) |
| Push-on fitting size | EWP inlet & outlet 38mm 3mm Sleeve: 44mm | 6mm Sleeve: 51mm |
Combined with an LCD EWP®/Fan Digital Controller (Sold separately Part #8002 or combo #8965) will manage both the EWP® and Thermatic® fan operation. The Digital Controller will vary the speed of the EWP® in response to the engine’s coolant temperature, eliminating ‘heat soak’ and extending engine life.
universal fit more power more cooling increase fuel efficiency extend engine life world-leading technologyInstalling an EWP® as an AUXILIARY PUMP
- Leaving the mechanical water pump in place, install the EWP® into the bottom radiator hose.
- Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate.
Disengaged mechanical water pump (recommended)
- Remove mechanical water pump and thermostat. Remove impeller from shaft.
- Retain the mechanical water pump using the pulley as an idler.
- Block any bypass passages and re-install. Install EWP into bottom hose.
Removed mechanical water pump (ideal)
- Remove mechanical pump and thermostat from the engine.
- Install a Davies Craig EWP® Header Adaptor. Install EWP into bottom hose.
For the EWP115, EWP140 and EWP150 Part #8700 or #8710 Mounting bracket is recommended.
