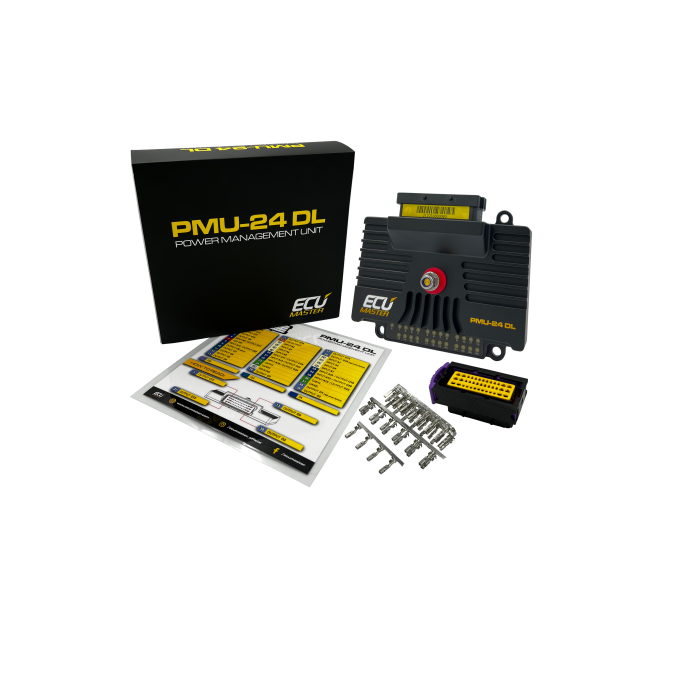

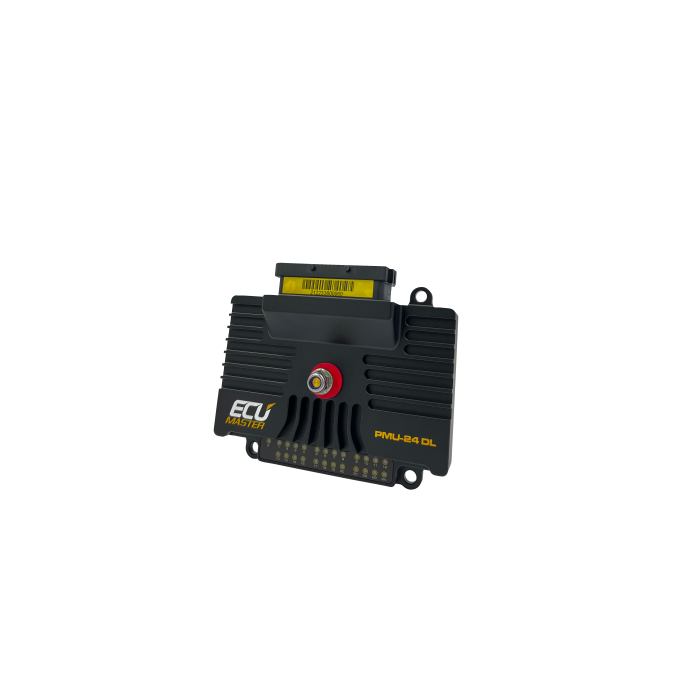

PMU-24 DL
NEW PMU24-DL AVAILABLE NOW!
PMU-24DL is a new and enhanced Power Management Unit featuring all the benefits of
the PMU-16, now with 24 high-side outputs and internal data logging memory as a
standard. All output states, voltage, and current information are transmitted via CAN bus to
a dash display to inform the driver of potential problems. All logged data can be
downloaded from the device for later analysis.
SPECIFICATION
• 170 Amps total continuous current.
• Operating voltage: 6-22V (immunity to transients according to ISO 7637)
• Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
• 10x 25 Amps high-side power outputs (PWM capable).
• 6x 15 Amps high-side power outputs.
• 8x 7 Amps high-side power outputs.
• Up to 16 analog inputs.
• 24x tricolor LED for each power output state.
• 2x CAN 2.0 A/B.
• 256 MB data logger memory.
• Up to 500 Hz logging frequency.
• Real-time clock for data stamping.
• 3D accelerometer/gyroscope.
• Built-in “inertia switch” in case of an accident.
• Easy access to CAN-bus data (imports and exports).
• Internal data processing using logical functions, numbers,
timers, and tables.
• Custom PID controllers.
• Fully customizable ”logic” for each output.
• Flexible and intuitive client software.
• Dimensions: 131x112x33mm, weight 385g
