Ecumaster MFD15 GEN2 52mm Can-Bus multi display
Regular price
€243,09
KEY FEATURES |
|
| Wireless internet access – Connect to your smartphone for setup, customization | |
| Can-Bus – Access to our complete Can Bus database (TRI Files) | |
| Compact – 52mm installation diameter and only 12.5mm installation depth actually fits everywhere | |
| Additional entrances – Connect additional sensors to the 6 analog inputs | |
| Preset alarms – Ready-made warnings can be easily activated and also customized. For example, get a big warning if the exhaust gas temperature is over 900 degrees. | |
| Online logging – ( Additional license required)Log your data with your smartphone and save the log for later analysis | |

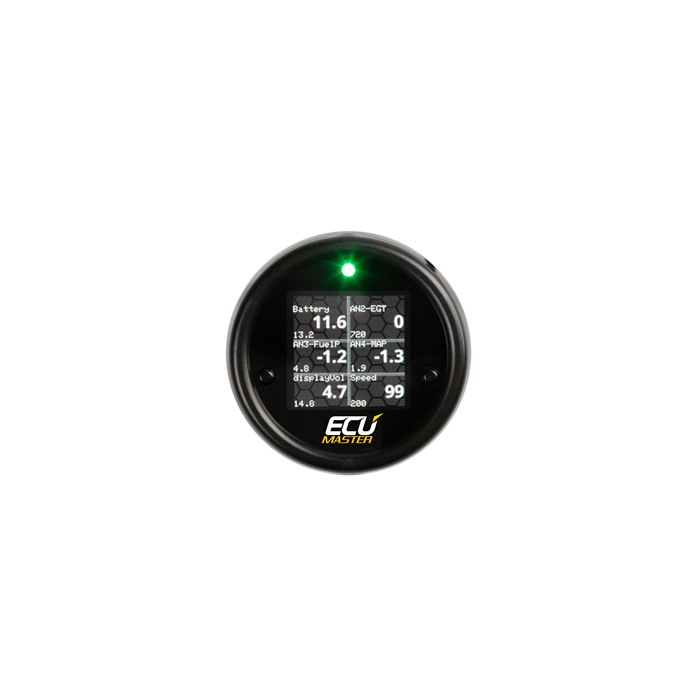

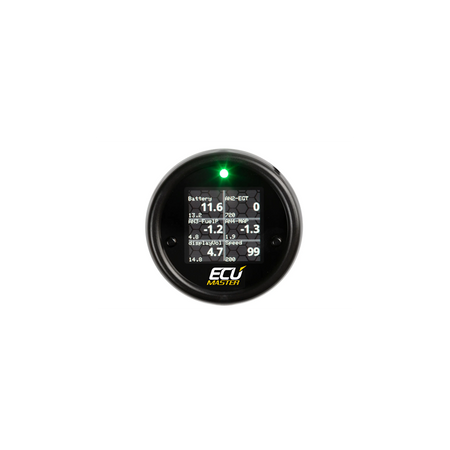

| Different views: -6-fold -4-fold -double value -double bar -circular display -single pointer -Double value plus bar -More gauges… Performance Meter, Gear Gauge |
|
| Online DSS – oDSS – A completely new feature of our MFD15 Gen2 is access to the device via WLAN. So you no longer need a laptop/PC for the settings on your display. Here you can set up your display completely, log values (license required), upload your own start image and also update the display. |
|
| Supported values – Many customers always ask: “Which values can I request from my control unit”. The answer: ” ALL “. Our MFD15 is compatible with ISO 11898-2 and SAE J2284. | |
| The control unit manufacturers themselves determine which values are sent via the CAN bus interface. Documentation is important here – possibly even in the form of a DBC file that can be imported via our DSS . You can also access our extensive list of already implemented controllers. These can be found in the download area . A total of up to 64 sensors can be queried if the manufacturer supports this. | |
| Data available in the broadcast as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as UDS are also available. | |
| Included as standard are: – OBD2 – 11bit/29bit – Ecumaster Classic and Black – DTAfast – BMW E46 Can Bus – BMW E90 Can Bus – Haltech v2 – Hondata – KMS van Kronenburg – LinkECU – MaxxECU – Motec M1 – Emtron – Megasquirt 2 and 3 – Syvecs – Trijekt – VW/AUDI PQ34/PQ35 etc. – Audi S1 (CJX) – Audi RS3/TT-RS (DAZA, DNWA/B/C) – VW UP GTI (DKRA/B/C/D) |
|
