Ecumaster Emu Black Preterminated Loom

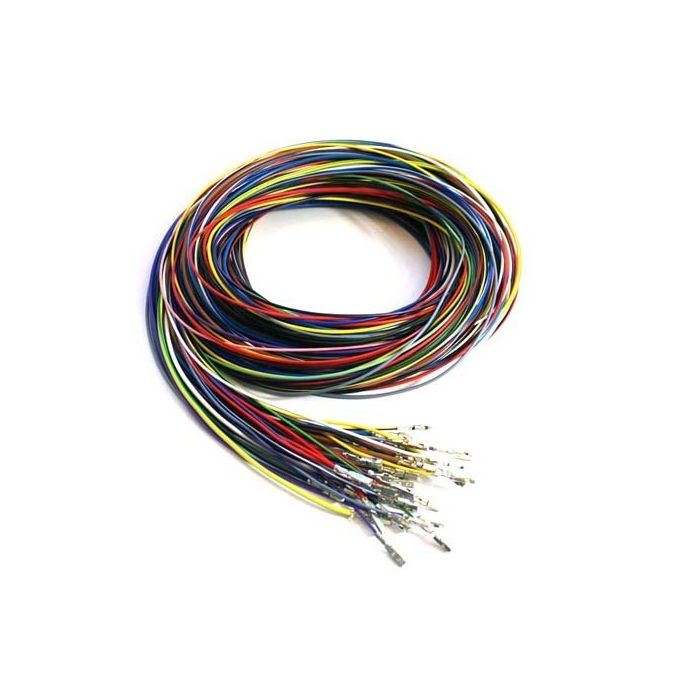

A universal cable harness that greatly simplifies the installation of the device. It consists of FLRY ducts intended for use in the automotive industry. In addition, at the end of each wire there is a terminal for EMU plugs.

The beam consists:

FLRY-B 0.50mm2 black GND x1
FLRY-B 0.50mm2 black GND x2
FLRY-B 0.50mm2 black GND x1

FLRY-B 0.50mm2 blue PRIG x1
FLRY-B 0.50mm2 blue CAM1 x1
FLRY-B 0.50mm2 blue CAM2 x1
FLRY-B 0.50mm2 blue VSS x1
FLRY-B 0.50mm2 blue FF x1
FLRY-B 0.50mm2 blue SW1 x1
FLRY-B 0.50mm2 blue SW2 x1
FLRY-B 0.50mm2 blue SW3 x1
FLRY-B 0.50mm2 blue CANL x1
FLRY-B 0.50mm2 blue CANH x1

FLRY-B 0.50mm2 yellow CLT x1
FLRY-B 0.50mm2 yellow IAT x1
FLRY-B 0.50mm2 yellow TPS x1
FLRY-B 0.50mm2 yellow AIN1 x1
FLRY-B 0.50mm2 yellow AIN2 x1
FLRY-B 0.50mm2 yellow AIN3 x1
FLRY-B 0.50mm2 yellow AIN4 x1
FLRY-B 0.50mm2 yellow AIN5 x1
FLRY-B 0.50mm2 yellow AIN6 x1

FLRY-B 0.50mm2 green BVS x1
FLRY-B 0.50mm2 green BIP x1
FLRY-B 0.50mm2 green WVGN x1
FLRY-B 0.50mm2 green WHTR x1
FLRY-B 0.50mm2 green WRCL x1

FLRY-B 0.75mm2 white AU1
FLRY-B 0.75mm2 white AU2
FLRY-B 0.75mm2 white AU3
FLRY-B 0.75mm2 white AU4
FLRY-B 0.75mm2 white AU5
FLRY-B 0.75mm2 white AU6
FLRY-B 0.75mm2 white BRD1A
FLRY-B 0.75mm2 white BRD1B
FLRY-B 0.75mm2 white BRD2A
FLRY-B 0.75mm2 white BRD2B

FLRY-B 0.75mm2 purple INJ1 x1
FLRY-B 0.75mm2 purple INJ2 x1
FLRY-B 0.75mm2 purple INJ3 x1
FLRY-B 0.75mm2 purple INJ4 x1
FLRY-B 0.75mm2 purple INJ5 x1
FLRY-B 0.75mm2 purple INJ6 x1
FLRY-B 0.75mm2 purple INJ7 x1
FLRY-B 0.75mm2 purple INJ8 x1

FLRY-B 0.75mm2 red GNS 12V x1
FLRY-B 0.75mm2 red OU 5V x1
FLRY-B 0.75mm2 red OU 5V x1

FLRY-B 1.00mm2 black PGND x3

FLRY-B 1.00mm2 black ATT2V x1

LGY 1.00mm2 blue COIL1 x1
LGY 1.00mm2 blue COIL2 x1
LGY 1.00mm2 blue COIL3 x1
LGY 1.00mm2 blue COIL4 x1
LGY 1.00mm2 blue COIL5 x1
LGY 1.00mm2 blue COIL6 x1
