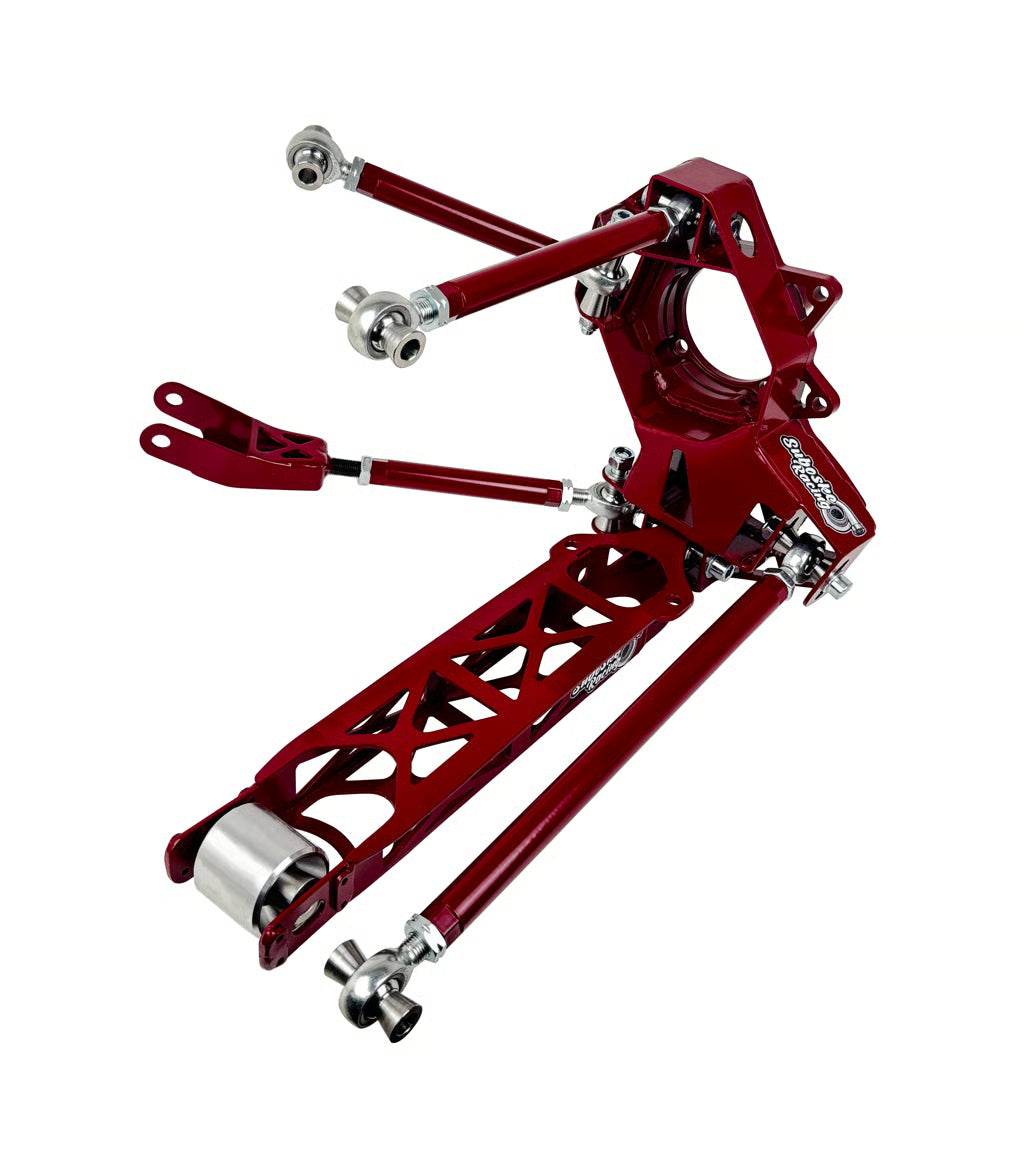

E8X / E9X Rear Grip Kit
The stock E8X / E9X rear suspension geometry isn't optimized for drifting. It gets even worse when the vehicle is lowered. This kit corrects roll center, bump steer, camber gain and anti-squat geometry for greatly improved grip, stability, and predictability.
Key features
-
Roll center correction (drop knuckle)
-
Eliminated camber gain
-
Adjustable bump steer (toe gain)
-
Adjustable anti-squat. 3 settings : Mild, strong and extreme. The kit allows for an extreme level of anti-squat without requiring subframe modification.
-
Double sheer bolt design. Factory single-sheer design is prone to failure. This kit solves it - no more broken suspension bolts.
-
Strong and durable. Constructed from high-strength alloy steel and equipped with high load bearing heim joints to ensure exceptional strength and long-lasting durability.
-
Dual caliper mounts. Designed for use with non-M E9X chassis brakes. Wilwood GP320 calipers can also be mounted using adapters. BMW 336mm brake disc 34216855004, BMW brake caliper L 34216769101 / R 34216769102
-
Bolt-on wheel bearing. BMW wheel bearing 33411095652, BMW wheel hub 33411095774, not provided with the kit.
-
Designed for large diameter half shafts. Fits both - stock and custom half shafts with CV joint diameters up to 122 mm.

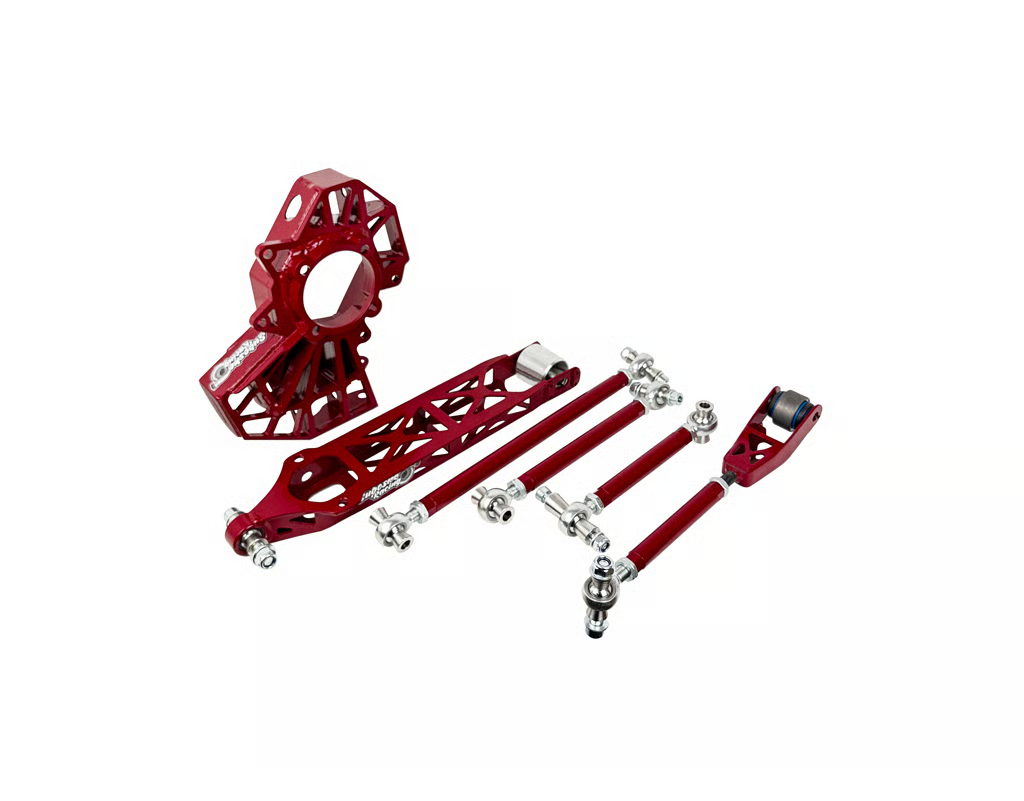

What's included
-

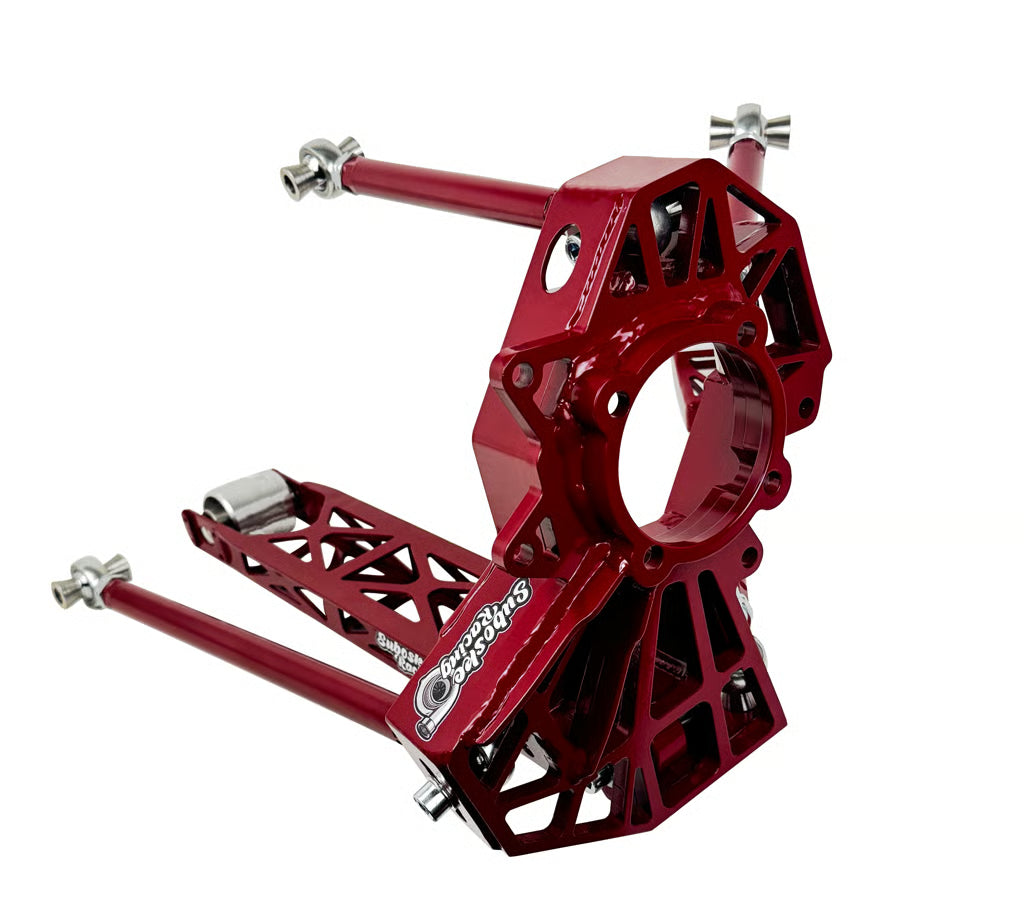

Knuckles (2 pcs)
-
Tubular Control Arms (8 pcs)
-
Lower Control Arms (2 pcs)
-
Spherical Uniball Subframe Bushings (4 pcs)
-
Installation Hardware
-
Assembly and Alignment Instructions
-
GP320 Caliper Adapters (if ordered)
