E8X / E9X Drift Angle Kit Supports ABS sensors!

With this kit you will have to cut off a part of your original knuckle - requires cutting (band saw or angle grinder).

Fits all E81/E82/E87/E88 1 series, E90/E91/E92/E93 3 series non-M BMW's

Some of Suboske Racing E8X/E9X Drift angle kit features :

• Up to 70 degrees of steering angle

• High strength steel control arms and knuckle adapters

• Wider stance to achieve necessary clearance

• Roll center correction

• Bump steer correction

• Optimal Ackermann for drifting (4 positions)

• Adjustable steering stoppers

• Excellent steering steering control/feedback

• Quality bearings are used to ensure long lifetime

• Easily adjustable caster (5 to 6.5 degree) *wider range is possible by adjusting lower control arm bearings

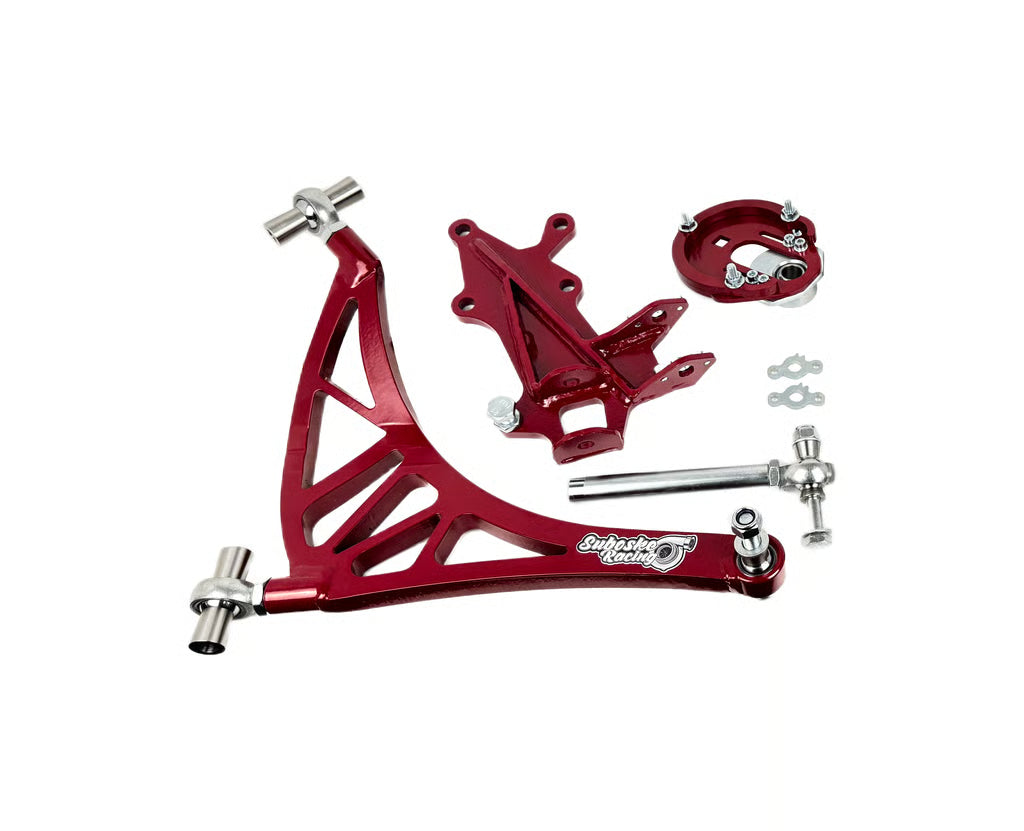

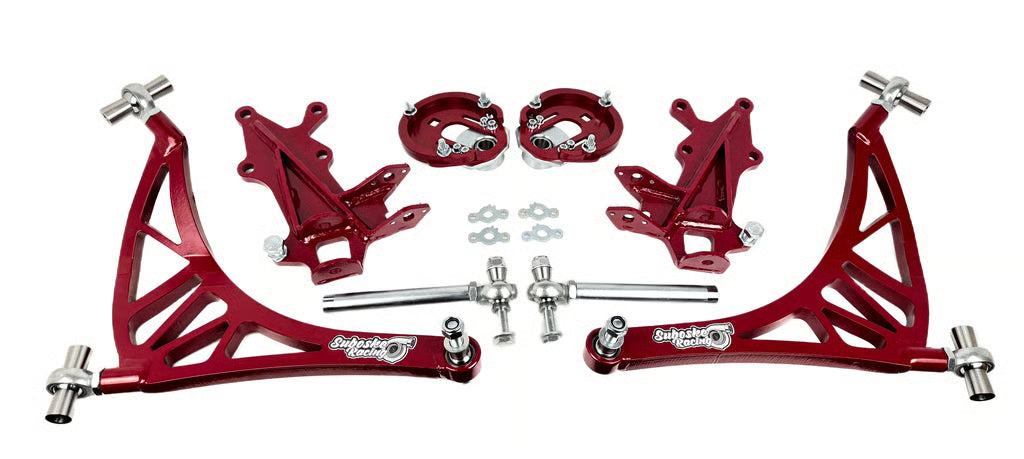

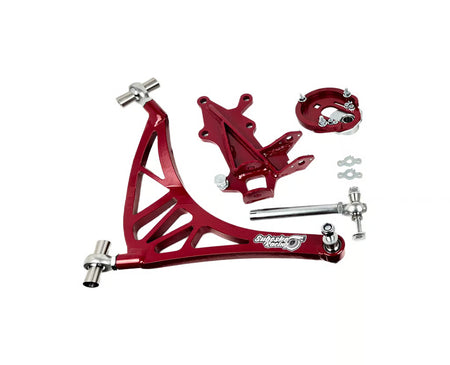

This kit has everything you need to install :

• 2x Lower control arms

• 2x Knuckle adapters

• 2x Outer tie rods

• 2x Top hats

• 4x Ackermann shims

• All bearings and hardware necessary for installation

• Installation/setup instruction

Coilovers are suggested to run with this kit. As with any other kit, depending on coilover brand/model, some modifications might be required to adapt top hats.

To install this kit you will need :

• Modify stock knuckle to bolt-on knuckle adapter (lower portion has to be cut off, cut line provided in instructions. Suggested method : bandsaw, but it is also possible to do with angle grinder)

• Depending on wheel setup and caster setting, chassis seam behind the wheels (inner wheel well) might require to be flattened for clearance

• Stock inner tie rods

• Stock brakes

• Front sway bar will have to be removed

• Minimum wheel size R17

• Wider front fenders or overfenders *suggested

• Coilovers *suggested

• Qualified mechanic

RACING USE ONLY
