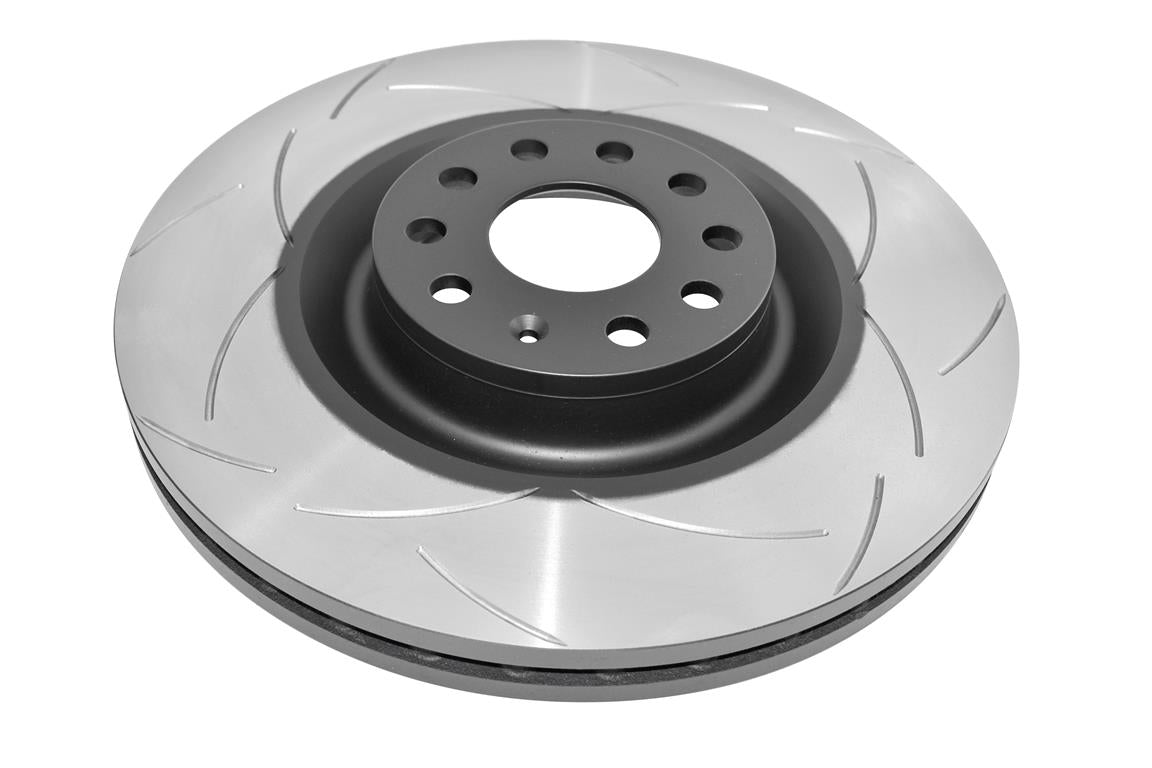

- SKU DBA2808S
Do you have questions about this product?

| Feature Description | Advantage | Benefit |
"T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
Thermal Stability Profiling
|
Special formulation designed to respond to DBA's TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Diameter [mm]: 345Disc Vent: Kangaroo PawNumber of Holes: 5Inner Diameter [mm]: 65Minimum Thickness [mm]: 28Thickness [mm]: 30Height [mm]: 50Pitch Circle [mm]: 112Stage: Stage 2Tech Bulletins: Bedding in BrakesTech Bulletins: How to clean a Disc Rotor before fittingTech Bulletins: Motorsport - Important InfoECE R90 number: E11*90R02/06*60512*00
Front - AUDI/A3 quattro 8P/3.2 (2003-2009) , Brake Caliper: ATE
Front - AUDI/S3 8P/2.0 Turbo 265BHP PR-1LK (2006-2012) , Brake Caliper: ATE
Front - AUDI/S3 8P/2.0 Turbo 265BHP PR-1ZK (2006-2012) Brake Pads: DB2402, Brake Caliper: ATE
Front - SEAT/Leon (1P)/2.0 Turbo Copa 286BHP (2008-2013) , Brake Caliper: Brembo
Front - SEAT/Leon (1P)/2.0 Turbo Cupra 240BHP (2006-2013) , Brake Caliper: ATE
Front - SEAT/Leon (1P)/2.0 Turbo Cupra 310BHP (2008-2009) , Brake Caliper: Brembo
Front - SEAT/Leon (1P)/2.0 Turbo Cupra R 265BHP (2009-2013) , Brake Caliper: ATE
Front - SKODA/Superb (3T)/1.8 Turbo 150BHP 4WD (2008-2015) , Brake Caliper: ATE
Front - SKODA/Superb (3T)/1.8 Turbo 160BHP 4WD (2008-2015) , Brake Caliper: ATE
Front - SKODA/Superb (3T)/2.0 TD 170BHP 4WD (2008-2015) , Brake Caliper: ATE
Front - SKODA/Superb (3T)/2.0 Turbo 200BHP (2010-2015) , Brake Caliper: ATE
Front - SKODA/Superb (3T)/3.6 4WD 260BHP (2008-2015) , Brake Caliper: ATE
Front - VOLKSWAGEN/Eos/3.2 250BHP (2006-2009) , Brake Caliper: ATE
Front - VOLKSWAGEN/Eos/3.6 260BHP (2009-2011) , Brake Caliper: ATE
Front - VOLKSWAGEN/Golf (Mk5)/3.2 R32 250BHP (2005-2009) , Brake Caliper: ATE
Front - VOLKSWAGEN/Golf (Mk6)/2.0 Turbo R 270BHP PR-1LK (2009-2013) , Brake Caliper: ATE
Front - VOLKSWAGEN/Golf (Mk6)/2.0 Turbo R 270BHP PR-1LM (2009-2013) , Brake Caliper: ATE
Front - VOLKSWAGEN/Golf (Mk6)/2.0 Turbo R 270BHP PR-1ZK (2009-2013) Brake Pads: DB2402, Brake Caliper: ATE
Front - VOLKSWAGEN/Passat (B6)/2.0 Turbo 200BHP (2005-2010) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat (B6)/3.2 247BHP From chassis code 3C8 (2005-2010) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat (B6)/3.2 247BHP To chassis code 3C7 (2005-2010) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat (B6)/3.6 From chassis code 3C8 (2007-2010) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat (B6)/3.6 To chassis code 3C7 (2007-2010) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat (B7)/2.0 Turbo 210BHP (2011-2014) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat (B7)/3.6 From chassis code 3C8 (2010-2012) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat (B7)/3.6 To chassis code 3C7 (2010-2012) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat CC/2.0 Turbo (2008-2012) , Brake Caliper: ATE
Front - VOLKSWAGEN/Passat CC/3.6 4Motion (2008-2012) , Brake Caliper: ATE
Front - VOLKSWAGEN/Scirocco/2.0 Turbo R 265BHP (2009-2014) , Brake Caliper: ATE
Front - VOLKSWAGEN/Scirocco/2.0 Turbo R 276BHP (2014-2017) , Brake Caliper: ATE
