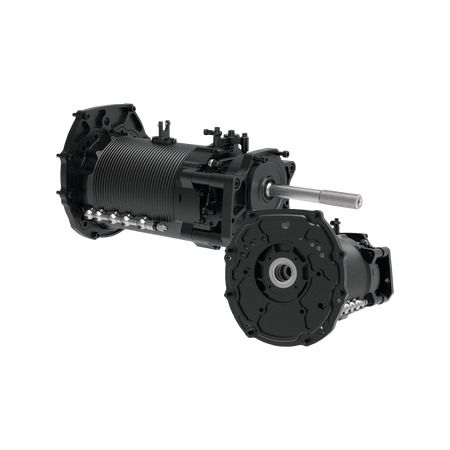

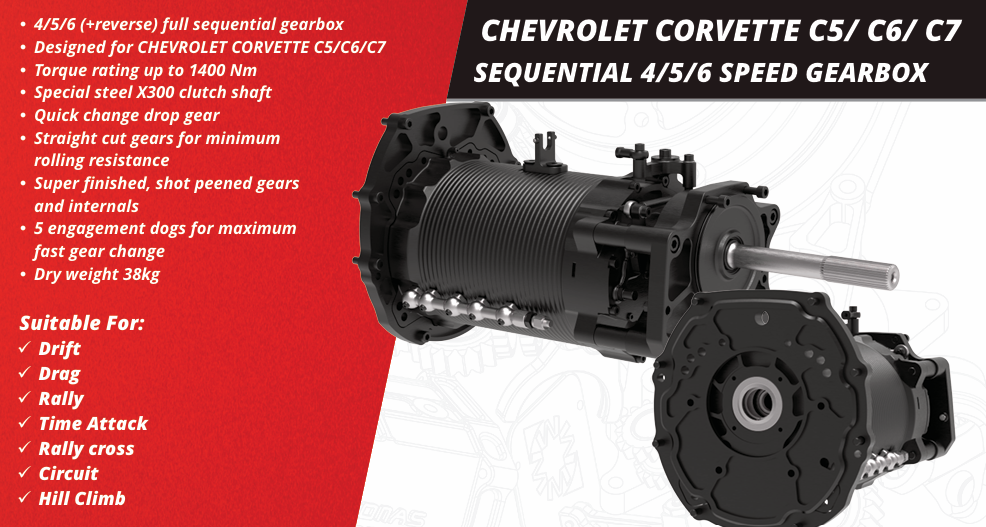

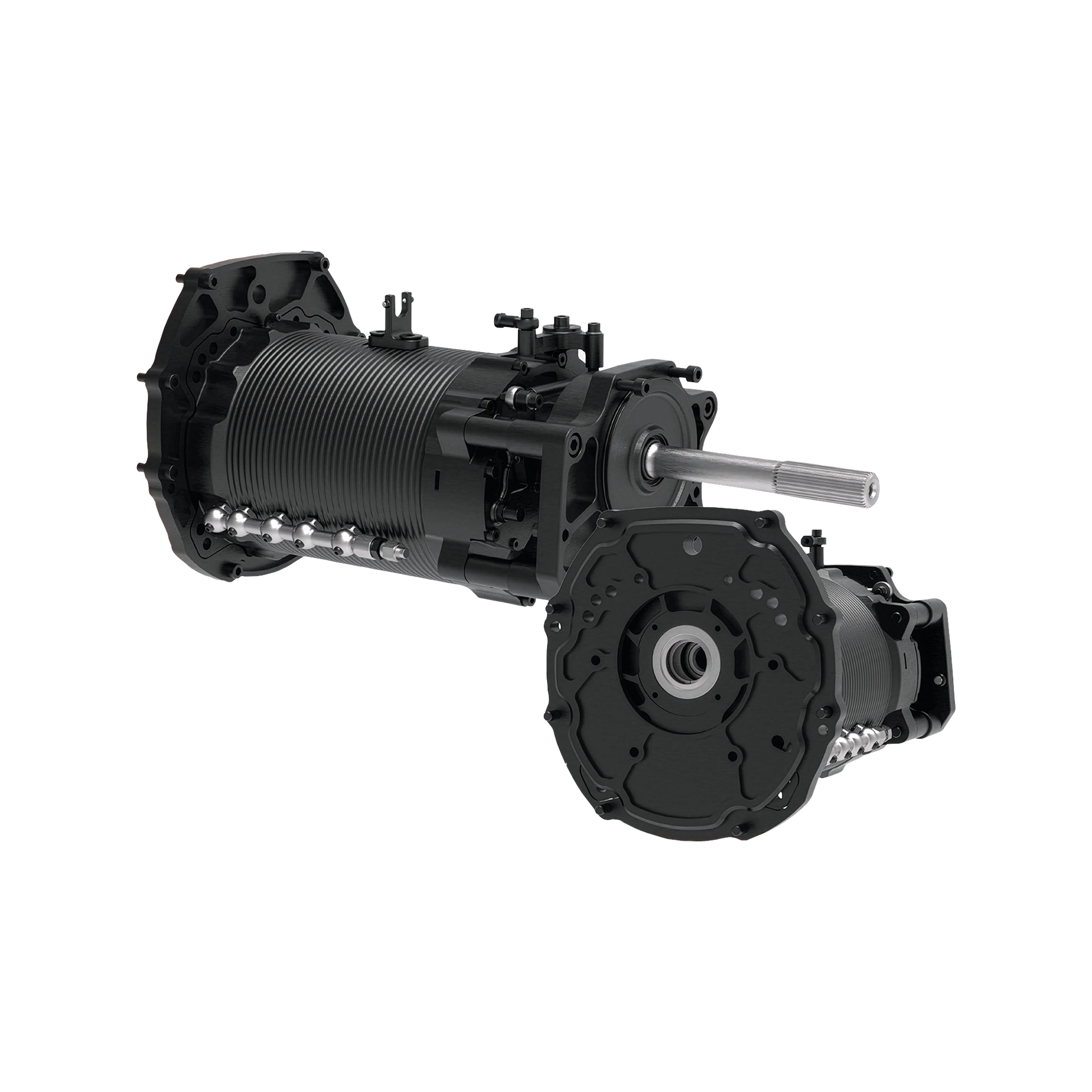

Chevrolet Corvette C5 /C6 /C7 Sequential (RWDs)
Regular price
€10.000,00
Features
4/5/6 (+reverse) full sequential gearbox
Special steel X300 clutch shaft
Quick change drop gear
Straight cut gears for minimum rolling resistance
Super finished, shot peened gears and internals
5 engagement dogs for maximum fast gear change
Parts included with the gearbox package:
Input Shaft
Bellhousing Adapter
Gear Position Sensor
IMPORTANT NOTE:
4 SPEED GEARBOX WITH CASING
(without transfer case and bellhousing)
5 SPEED GEARBOX WITH CASING
(without transfer case and bellhousing)
6 SPEED GEARBOX WITH CASING
(without transfer case and bellhousing)

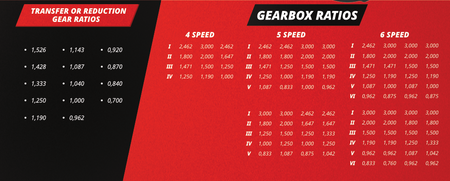

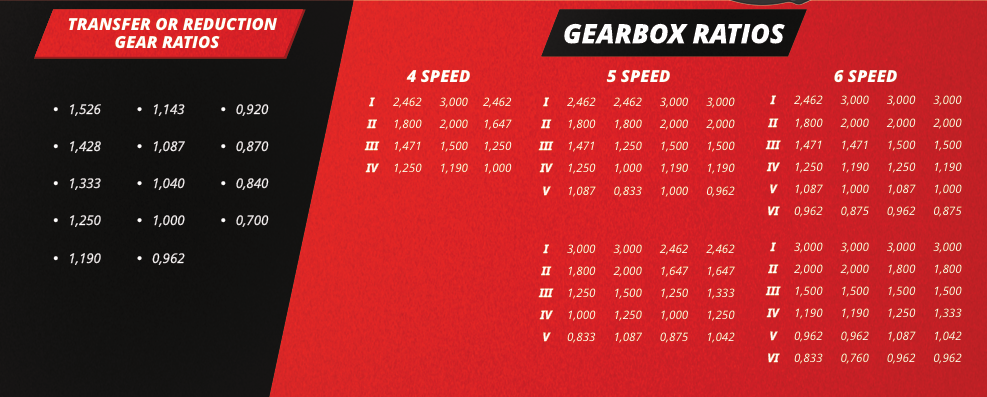

Gear Ratios
4 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 |
|---|---|---|---|
| 3.000 | 2.000 | 1.500 | 1.250 |
| 3.000 | 2.000 | 1.500 | 1.190 |
| 3.000 | 1.800 | 1.250 | 1.000 |
| 3.000 | 1.647 | 1.250 | 1.000 |
| 2.462 | 1.800 | 1.471 | 1.190 |
| 2.462 | 1.800 | 1.471 | 1.250 |
| 2.462 | 1.647 | 1.250 | 1.000 |
Gear Ratios
5 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 | Gear 5 |
|---|---|---|---|---|
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 |
| 2.462 | 1.800 | 1.250 | 1.000 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.190 | 1.000 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 |
| 3.000 | 1.800 | 1.250 | 1.000 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.250 | 1.087 |
| 2.462 | 1.647 | 1.250 | 1.000 | 0.875 |
| 2.462 | 1.647 | 1.333 | 1.250 | 1.042 |
Gear Ratios
6 speed
| Gear 1 | Gear 2 | Gear 3 | Gear 4 | Gear 5 | Gear 6 |
|---|---|---|---|---|---|
| 2.462 | 1.800 | 1.471 | 1.250 | 1.087 | 0.962 |
| 3.000 | 2.000 | 1.471 | 1.190 | 1.000 | 0.875 |
| 3.000 | 2.000 | 1.500 | 1.250 | 1.087 | 0.962 |
| 3.000 | 2.000 | 1.500 | 1.190 | 1.000 | 0.875 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 | 0.833 |
| 3.000 | 2.000 | 1.500 | 1.190 | 0.962 | 0.760 |
| 3.000 | 1.800 | 1.500 | 1.250 | 1.087 | 0.962 |
| 3.000 | 1.800 | 1.500 | 1.333 | 1.042 | 0.962 |
Transfer / Reduction Gears
1.526
1.428
1.333
1.250
1.190
1.143
1.087
1.040
1.000
0.962
0.920
0.870
0.840
0.700
